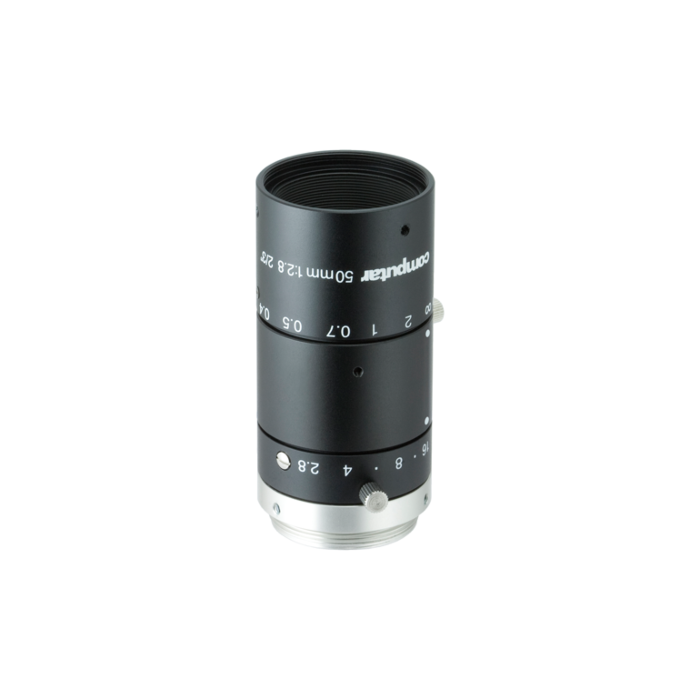

Computar M5028-MPW3 (M5028MPW3) 6 Megapixel 2/3" 50mm F2.8 (C Mount) Machine Vision Lens
SKU
Computar M5028-MPW3 6 MP 2/3" 50mm F2.8 Machine Vision Lens
50 mm industrial camera lens for machine vision and factory automation applications.
Features:
- 2/3” Format
- 6 Megapixel
- 50mm Fixed
- F2.8
- Full HD Format
- Fixed Iris
- Compact & Lightweight
- Shorter Working Distance
- Nominal Distortion Design
- Ensures Corner Brightness
- Available in 8mm, 12mm, 16mm, 35mm, 50mm and 75mm
Applications:
- Machine Vision
- Factory Automation
- Pass/Fail Testing
- Inspection
| Focal Length | 50mm |
| Aperture (F) | 1:2.8 |
| Max. Image Format | 8.8mm x 6.6mm(φ11mm) |
| Operation Range | Iris F2.8 - 16.0 Focus 0.3m ‐ Inf. |
| Control | Iris Manual - Focus Manual |
| Object Dimension at M.O.D. | 2/3 Type 64.1 x 48.1mm 1/1.8 Type 52.5 x 39.4mm 1/2.5 Type 41.5 x 31.3mm |
| Angle of View | 2/3 Type D 12.5° H 10.0° V 7.5° 1/1.8 Type D 10.2° H 8.2° V 6.2° 1/2.5 Type D 8.1° H 6.5° V 4.9° |
| Operating Temperature | -10℃ ‐ +50℃ |
| Effective Lens Aperature | Front φ17.8mm Rear φ9.9mm |
| Distortion | 2/3 Type (Y=5.5mm) 0.00% 1/1.8 Type (Y=4.5mm) 0.00% 1/2.5 Type (Y=3.55mm) 0.00% |
| Back Focal Length | 26.3mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M27 P=0.5mm |
| Dimensions | φ29mm x 56mm |
| Weight | 65g |
