CBC-Computar M5018-VSW 50mm F1.8 ViSWIR Lite Visible-SWIR Lens | 1.5MP, 2/3", C-Mount
Computar M5018-VSW 50mm F1.8 ViSWIR Lite C-mount lens for 1.5MP visible-SWIR imaging from 400 nm to 1700 nm. Designed for 2/3" sensors, this compact manual iris lens delivers high transmission, low distortion, and megapixel clarity for single-band SWIR machine vision, agriculture, medical imaging, remote sensing, and industrial inspection applications.

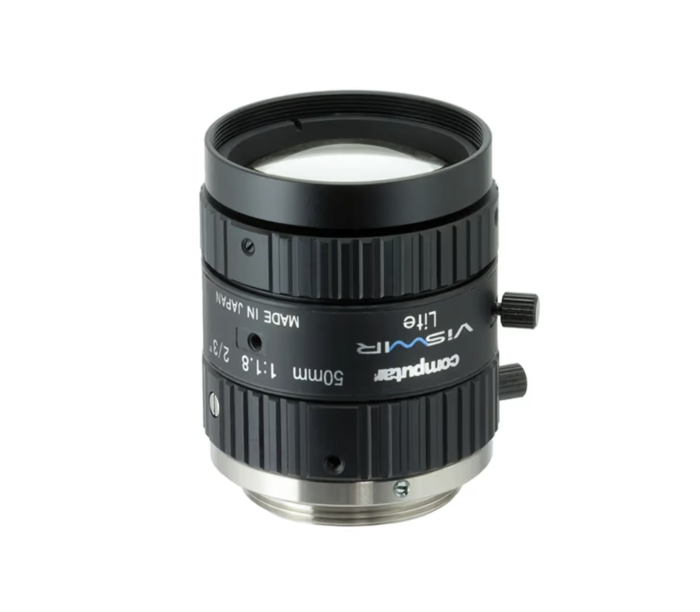

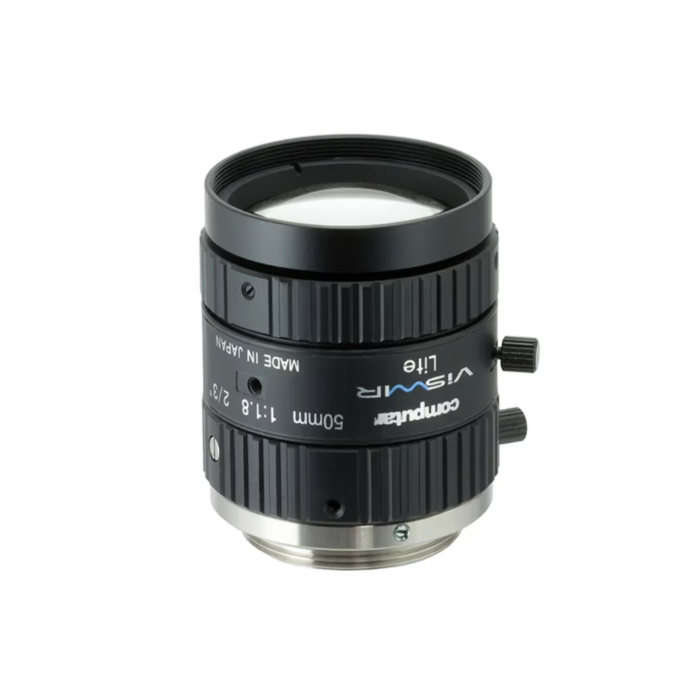

Computar M5018-VSW 50mm ViSWIR Lite Lens
The CBC-Computar M5018-VSW is a 50mm F1.8 ViSWIR Lite fixed focal length lens designed for visible-to-SWIR imaging from 400 nm to 1700 nm. Built for 1.5MP visible + SWIR sensors and 2/3" image format cameras, this compact C-mount lens provides high transmission, low distortion, and reliable megapixel image clarity for single-band visible-SWIR imaging applications.
The ViSWIR Lite Series is designed to deliver clear and precise images across the visible and short-wave infrared range by applying a multilayer broadband anti-reflection coating to the lens elements. This coating helps reduce adverse lighting effects while supporting stable transmission across a super-wide wavelength range from 400 nm to 1700 nm.
The M5018-VSW is a strong fit for applications using the latest visible + SWIR sensors where compact size, high transmission, and cost-effective SWIR-compatible optics are important. It is well suited for agriculture, medical imaging, remote sensing, industrial inspection, machine vision, material analysis, food sorting, and non-visible range imaging.
As the 50mm option in Computar’s ViSWIR Lite lens series, the M5018VSW is ideal for systems requiring a tighter field of view or longer working distance compared to shorter focal length models. The ViSWIR Lite Series is available in 5mm, 8mm, 12mm, 16mm, 25mm, 35mm, and 50mm focal lengths, giving system designers flexible options for visible-SWIR camera integration.
Key Features:
- 50mm fixed focal length ViSWIR Lite lens
- Designed for visible-to-SWIR imaging from 400 nm to 1700 nm
- Supports 1.5MP visible + SWIR image sensors
- Compatible with 2/3" image format cameras
- F1.8 maximum aperture for strong light transmission
- Manual iris and manual focus control
- Broadband anti-reflection coating applied to ViSWIR lens elements
- Unique coating technology delivers high transmission from 400 nm to 1700 nm
- High-resolution, low-distortion design for megapixel image clarity
- Compact form factor for easier integration into industrial imaging systems
- C-mount design for machine vision camera compatibility
- Cost-effective visible-SWIR lens option for single-band applications
Applications:
- Visible-SWIR machine vision
- Single-band SWIR imaging
- Agricultural inspection
- Medical and bioscience imaging
- Remote sensing
- Industrial inspection
- Food sorting and quality control
- Material analysis and classification
- Non-visible range imaging
- Scientific imaging
- Security and surveillance imaging
- Hyperspectral and multispectral imaging systems
| Model Number | M5018-VSW |
| Lens Series | ViSWIR Lite |
| Lens Type | Fixed Focal Length Visible-SWIR Lens |
| Focal Length | 50mm |
| Maximum Aperture | F1.8 |
| Resolution | 1.5MP |
| Image Format | 2/3" |
| Wavelength Range | 400 nm - 1700 nm |
| Supported Sensor Type | Visible + SWIR Sensors |
| Mount | C-Mount |
| Iris Control | Manual Iris |
| Focus Control | Manual Focus |
| Coating Technology | Broadband Anti-Reflection / Multilayer ViSWIR Coating |
| Optical Performance | High Transmission, Low Distortion, Megapixel Clarity |
| Application Type | Single-Band Visible-SWIR Imaging |
| Compatible Applications | Machine Vision, Agriculture, Medical Imaging, Remote Sensing, Industrial Inspection |
| Available Series Focal Lengths | 5mm, 8mm, 12mm, 16mm, 25mm, 35mm, 50mm |
*Specifications are subject to change without notice. Please confirm sensor compatibility, wavelength requirements, working distance, and field-of-view needs before ordering.
