CBC-Computar M3514-VSW 35mm F1.4 ViSWIR Lite Visible-SWIR Lens | 1.5MP, 2/3", C-Mount
Computar M3514-VSW 35mm F1.4 ViSWIR Lite C-mount lens for 1.5MP visible-SWIR imaging from 400 nm to 1700 nm. Designed for 2/3" sensors, this compact manual iris lens delivers high transmission, low distortion, and megapixel clarity for single-band SWIR machine vision, agriculture, medical imaging, remote sensing, and industrial inspection applications.

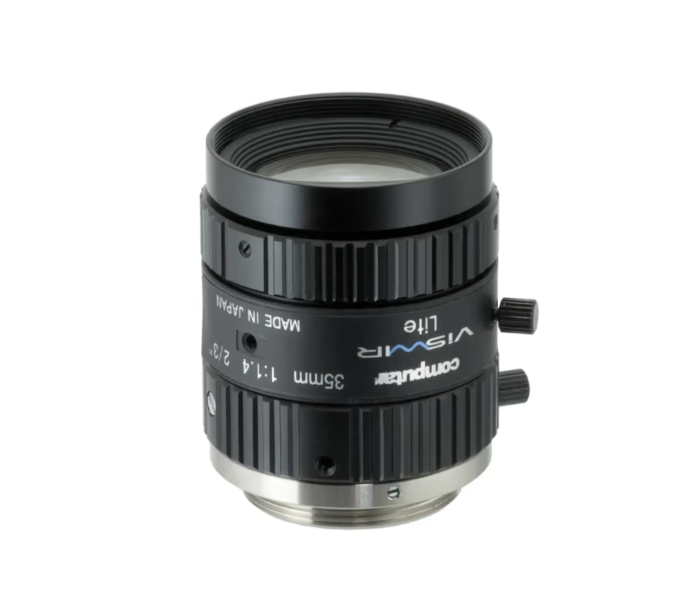

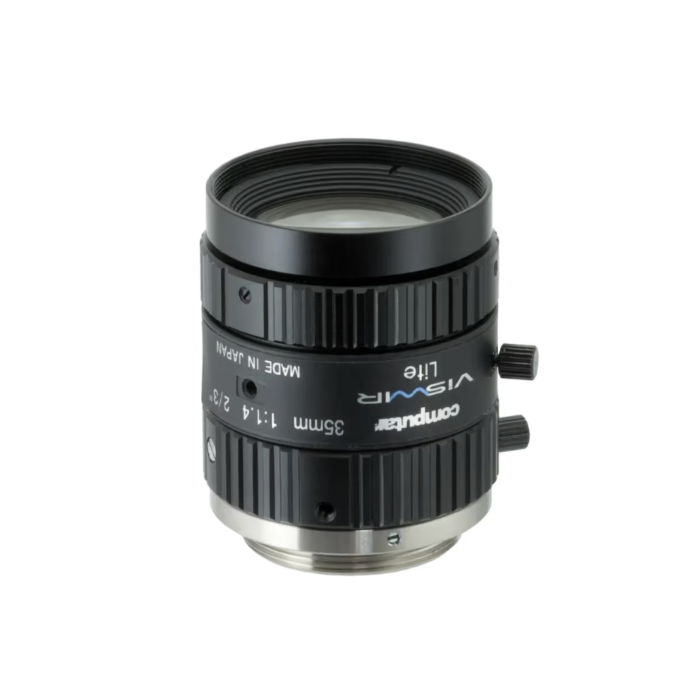

Computar M3514-VSW 35mm ViSWIR Lite Lens
The CBC-Computar M3514-VSW is a 35mm F1.4 ViSWIR Lite fixed focal length lens designed for visible-to-SWIR imaging from 400 nm to 1700 nm. Built for 1.5MP visible + SWIR sensors and 2/3" image format cameras, this compact C-mount lens delivers high transmission, low distortion, and reliable megapixel clarity for single-band visible-SWIR imaging applications.
The ViSWIR Lite Series achieves clear, precise imaging across the visible and short-wave infrared range by applying multilayer coating technology to help absorb specific light and minimize adverse lighting effects. A broadband anti-reflection coating is applied to all ViSWIR lens elements, allowing high and stable transmission across a super-wide wavelength range from 400 nm to 1700 nm.
With its bright F1.4 aperture, the M3514-VSW is a strong choice for systems that require more light-gathering capability while maintaining SWIR-compatible optical performance. This makes it well suited for agriculture, medical imaging, remote sensing, machine vision, material analysis, food inspection, industrial inspection, and non-visible range imaging applications.
As the 35mm option in Computar’s ViSWIR Lite lens series, the M3514VSW provides a balanced field of view for inspection systems that need more reach than shorter focal lengths while still maintaining practical integration flexibility. The ViSWIR Lite Series is available in 5mm, 8mm, 12mm, 16mm, 25mm, 35mm, and 50mm focal lengths.
Key Features:
- 35mm fixed focal length ViSWIR Lite lens
- Designed for visible-to-SWIR imaging from 400 nm to 1700 nm
- Supports 1.5MP visible + SWIR image sensors
- Compatible with 2/3" image format cameras
- Bright F1.4 aperture for strong light transmission
- Manual iris and manual focus control
- Broadband anti-reflection coating applied to all ViSWIR lens elements
- Unique coating technology delivers high transmission from 400 nm to 1700 nm
- High-resolution, low-distortion design for megapixel image clarity
- Compact form factor for easier integration into machine vision systems
- C-mount design for industrial camera compatibility
- Cost-effective visible-SWIR lens option for single-band applications
Applications:
- Visible-SWIR machine vision
- Single-band SWIR imaging
- Agricultural inspection
- Medical and bioscience imaging
- Remote sensing
- Industrial inspection
- Food sorting and quality control
- Material analysis and classification
- Non-visible range imaging
- Scientific imaging
- Security and surveillance imaging
- Hyperspectral and multispectral imaging systems
| Model Number | M3514-VSW |
| Lens Series | ViSWIR Lite |
| Lens Type | Fixed Focal Length Visible-SWIR Lens |
| Focal Length | 35mm |
| Maximum Aperture | F1.4 |
| Resolution | 1.5MP |
| Image Format | 2/3" |
| Wavelength Range | 400 nm - 1700 nm |
| Supported Sensor Type | Visible + SWIR Sensors |
| Mount | C-Mount |
| Iris Control | Manual Iris |
| Focus Control | Manual Focus |
| Coating Technology | Broadband Anti-Reflection / Multilayer ViSWIR Coating |
| Optical Performance | High Transmission, Low Distortion, Megapixel Clarity |
| Application Type | Single-Band Visible-SWIR Imaging |
| Compatible Applications | Machine Vision, Agriculture, Medical Imaging, Remote Sensing, Industrial Inspection |
| Available Series Focal Lengths | 5mm, 8mm, 12mm, 16mm, 25mm, 35mm, 50mm |
*Specifications are subject to change without notice. Please confirm sensor compatibility, wavelength requirements, working distance, and field-of-view needs before ordering.
