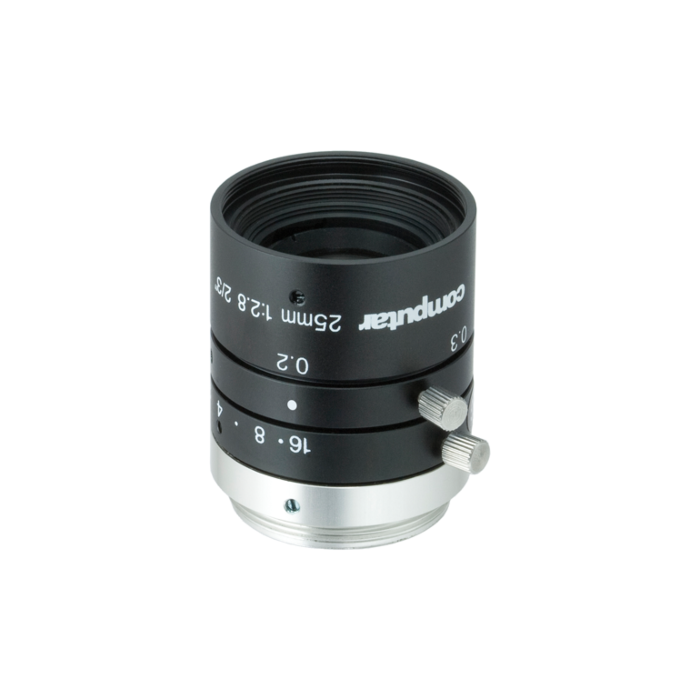

Computar M2528-MPW3 (M2528MPW3) 6 Megapixel 2/3" 25mm F2.8 (C Mount) Machine Vision Lens
SKU
Computar M2528-MPW3 6 MP 2/3" 25mm F2.8 Machine Vision Lens
25 mm industrial camera lens for machine vision and factory automation applications.
Features:
- 2/3” Format
- 6 Megapixel
- 25mm Fixed
- F2.8
- Full HD Format
- Fixed Iris
- Compact & Lightweight
- Shorter Working Distance
- Nominal Distortion Design
- Ensures Corner Brightness
- Available in 5mm, 8mm, 12mm, 16mm, 25mm, 35mm, 50mm and 75mm
Applications:
- Machine Vision
- Factory Automation
- Pass/Fail Testing
- Inspection
| Focal Length | 25mm |
| Aperture (F) | 1:2.8 |
| Max. Image Format | 8.8mm x 6.6mm(φ11mm) |
| Operation Range | Iris F2.8 - 16.0 Focus 0.2m ‐ Inf. |
| Control | Iris Manual - Focus Manual |
| Object Dimension at M.O.D. | 2/3 Type 70.7 x 5.0mm 1/1.8 Type 57.8 x 43.3mm 1/2.5 Type 45.7 x 34.5mm |
| Angle of View | 2/3 Type D 24.6° H 19.9° V 15.0° 1/1.8 Type D 20.3° H 16.3° V 12.3° 1/2.5 Type D 16.1° H 13.0° V 9.8° |
| Operating Temperature | -10℃ ‐ +50℃ |
| Effective Lens Aperature | Front φ14.1mm Rear φ10.5mm |
| Distortion | 2/3 Type (Y=5.5mm) 0.77% 1/1.8 Type (Y=4.5mm) 0.49% 1/2.5 Type (Y=3.55mm) 0.29% |
| Back Focal Length | 11.5mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M27 P=0.5mm |
| Dimensions | φ29mm x 31.5mm |
| Weight | 42g |
