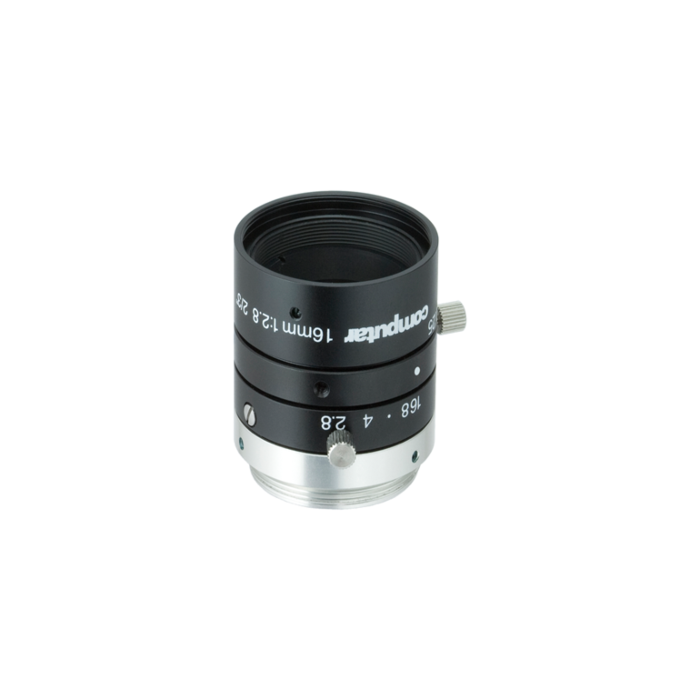

CBC-Computar M1628-MPW3 (M1628MPW3) 6 Megapixel 2/3" 16mm F2.8 (C Mount) Machine Vision Lens
SKU
Computar M1628-MPW3 6 MP 2/3" 16mm F2.8 Machine Vision Lens
16 mm industrial camera lens for machine vision and factory automation applications.
Features:
- 2/3” Format
- 6 Megapixel
- 16mm Fixed
- F2.8
- Full HD Format
- Fixed Iris
- Compact & Lightweight
- Shorter Working Distance
- Nominal Distortion Design
- Ensures Corner Brightness
- Available in 8mm, 12mm, 16mm, 35mm, 50mm, 75mm
Applications:
- Machine Vision
- Factory Automation
- Pass/Fail Testing
- Inspection
| Focal Length | 16mm |
| Aperture (F) | 1:2.8 |
| Max. Image Format | 8.8mm x 6.6mm(φ11mm) |
| Operation Range | Iris F2.8 - 16.0 Focus 0.25m ‐ Inf. |
| Control | Iris Manual - Focus Manual |
| Object Dimension at M.O.D. | 2/3 Type 22.7 x 29.9mm 1/1.8 Type 18.6 x 24.7mm 1/3 Type 12.5 x 16.6mm |
| Angle of View | 2/3 Type D 37.8° H 30.7° V 23.3° 1/1.8 Type D 31.4° H 25.3° V 19.2° 1/3 Type D 21.2° H 17.1° V 12.8° |
| Operating Temperature | -10℃ ‐ +50℃ |
| Effective Lens Aperature | Front φ14.1mm Rear φ9.1mm |
| Back Focal Length | 10.347mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M27 P=0.5mm |
| Dimensions | φ29mm x 36.47mm |
| Weight | 37g |
