Computar M1228-MPW3 (M1228MPW3) 5 Megapixel 2/3" 12mm F2.8 (C Mount) Machine Vision Lens

SKU

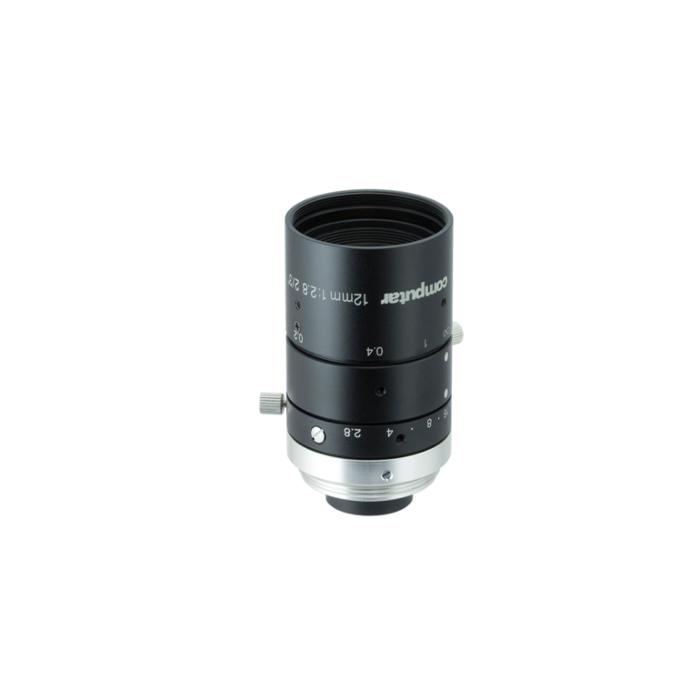

Computar M1228-MPW3 5 MP 2/3" 12mm F2.8 Machine Vision Lens

12 mm industrial camera lens for machine vision and factory automation applications.


Features:

  • 2/3” Format
  • 6 Megapixel
  • 12mm Fixed
  • F2.8
  • Full HD Format
  • Fixed Iris
  • Compact & Lightweight
  • Shorter Working Distance
  • Nominal Distortion Design
  • Ensures Corner Brightness
  • Available in 8mm, 12mm, 16mm, 35mm, 50mm, 75mm


Applications:

  • Machine Vision
  • Factory Automation
  • Pass/Fail Testing
  • Inspection
Focal Length 12mm
Aperture (F) 1:2.8
Max. Image Format 8.8mm x 6.6mm(φ11mm)
Operation Range Iris  F2.8 - 16.0   Focus 0.1m ‐ Inf.
Control Iris Manual - Focus Manual
Object Dimension at M.O.D. 2/3 Type 83.0 x 62.0mm   1/1.8 Type 67.7 x 50.6mm  1/2.5 Type 53.4 x 40.2mm
Angle of View 2/3 Type       D 49.3°    H 40.3°    V 30.8°
1/1.8 Type    D 40.8°    H 33.1°    V 26.0°
1/2.5 Type    D 33.0°    H 26.7°    V 20.3°
Operating Temperature -10℃ ‐ +50℃
Effective Lens Aperature Front φ18.8mm    Rear φ10.3mm
Distortion 2/3 type -0.10%(y=5.5mm)   1/1.8 type 0.04%(y=4.5mm)  1/2.5 type 0.00%(y=3.55mm)
Back Focal Length 9.2mm
Flange Back Length 17.526mm
Mount C-Mount
Filter Size M27 P=0.5mm
Dimensions φ29mm x 43.5mm
Weight 60g
