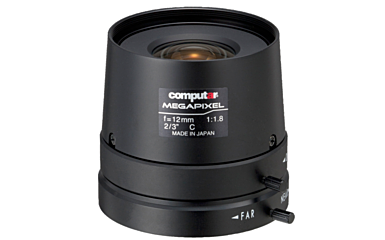

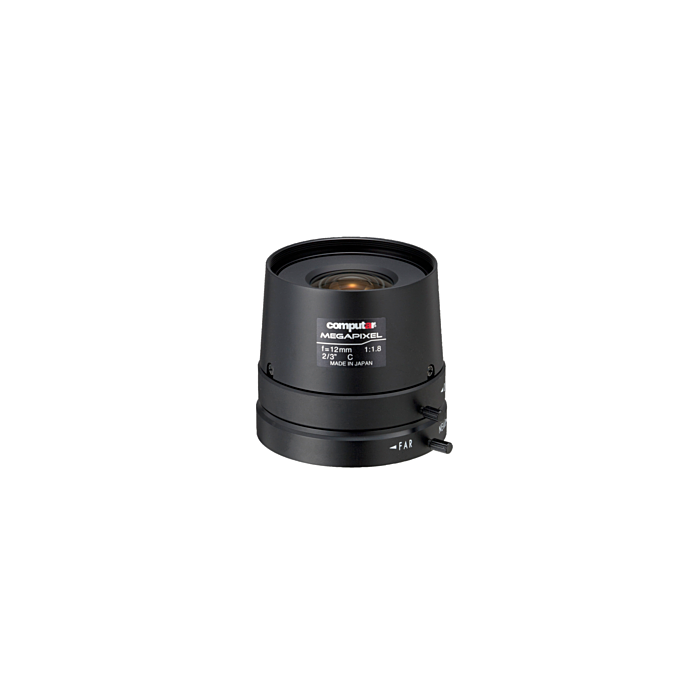

M1218FIC-MP (M1218FICMP): CBC-Computar 5 Megapixel 2/3" 12mm, F1.8, Manual Iris Lens, (C-Mount)
SKU
Computar M1218FIC-MP
Quick Overview
2/3 type, 5 Megapixel Cameras, Fixed-focal, Manual Iris, f=12mm, F1.8.
Features:
| Focal Length | 12mm |
| Max. Aperture Ratio | 1:1.8 |
| Max. Image Format | 6.6mm x 8.8mm(φ11mm) |
| Operation Range | Iris: F1.8 - F16C Focus: 1m - Inf. Zoom: - |
| Control | Iris: Manual Focus: Manual Zoom: - |
| Angle of View | 2/3 type: 48.0° (D) x 39.3° (H) x 30.0° (V) 1/2 type: 36.0° (D) x 29.1° (H) x 22.0° (V) 1/3 type: 27.4° (D) x 22.0° (H) x 16.6° (V) |
| Effective Lens Aperture | Front: φ20.0mm Rear: φ13.2mm |
| Back Focal Length | 15.0mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M40.5 x 0.5 |
| Dimensions | φ47.5mm x 45mm |
| Weight | 132.2 g |
| Operating Temperature | -10℃ - +50℃ |
