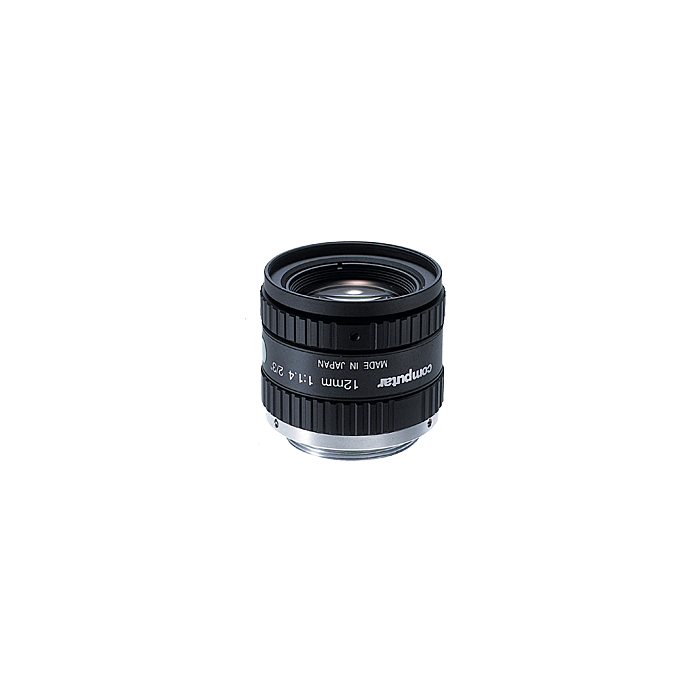

M1214-MP2 (M1214MP2): CBC-Computar 2/3" 12mm f1.4 w/locking Iris & Focus, Megapixel Lens
SKU
Computar M1214-MP2
Quick Overview
2/3 type, Megapixel Camera Lens, f=12mm, F1.4.
Dedicated design emphasis on the performance for close-up applications required in factory automation and image processing areas.
Features:
| Focal Length | 12mm |
| Max. Aperture Ratio | 1 : 1.4 |
| Max. Image Format | 8.8mm x 6.6mm |
| Operation Range | Iris: F1.4 - F16C Focus: 0.15m - Inf. |
| Control | Iris: Manual Focus: Manual |
| Object Dimension at M.O.D. | 2/3 type: 12.1cm x 9.0cm 1/2 type: 8.8cm x 6.5cm |
| Angle of View | 2/3 type : 49.2° (D) / 40.4° (H) / 30.8° (V) 1/2 type : 37.0° (D) / 30.0° (H) / 22.7° (V) |
| Operating Temperature | -10°C - +50°C |
| Effective lens Aperture | Front: 21.0mm Rear: 13.0mm |
| Distortion | 2/3 type: -0.1%(y=5.5) 1/2 type: -0.35%(y=4.0) |
| Back Focal Length | 13.1mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M30.5 P=0.5mm |
| Dimensions | 33.5mm x 28.2mm |
| Weight | 61.9g |
