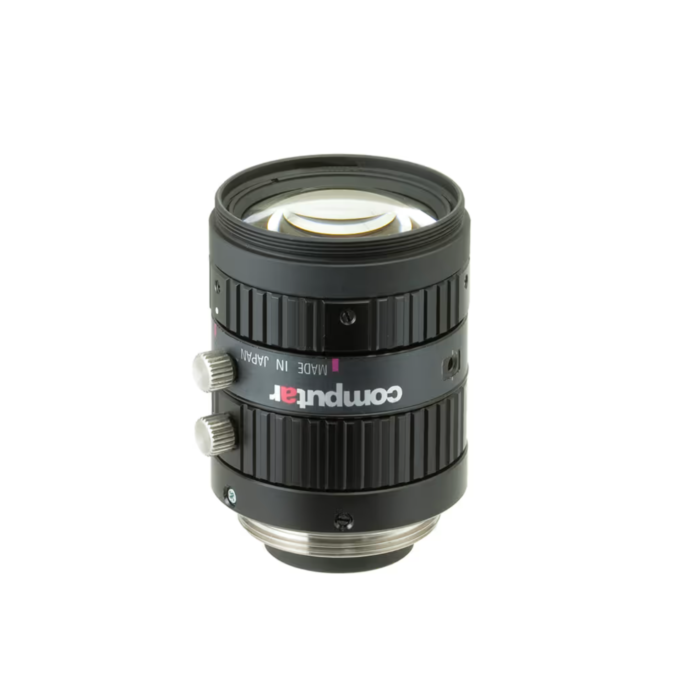

Computar M0828-MPX 2/3" 8mm F2.8 Industrial Lens for 16MP Cameras (C-Mount)
Enhance Precision and Durability with the Computar M0828-MPX 8mm F2.8 Lens for Industrial and Machine Vision Applications
The Computar M0828-MPX 2/3" 8mm F2.8 Ruggedized Lens is engineered for the most demanding industrial and machine vision applications, ensuring top-tier performance in challenging environments. With a robust anti-vibration and shock-resistant design, this lens is ideal for inspection systems in manufacturing, robotics, and quality control, where durability and precision are paramount.
Supporting pixel sizes of 2μm or less, the M0828-MPX delivers unparalleled image clarity for high-resolution 16-megapixel cameras, making it ideal for industries where precision matters. Its unique floating mechanism enables seamless performance across varying focal lengths, whether capturing close-up or long-distance images. The click-type iris mechanism allows precise control over aperture settings, enhancing image quality by ensuring optimal exposure in changing lighting conditions.
A standout feature of the M0828-MPX is its enhanced focus adjustment, with a rotation angle three times greater than standard lenses. This offers better control and flexibility for operators, ensuring consistently sharp images. The compact and lightweight design allows for easy integration into different systems without compromising on durability or performance, making it a preferred choice for industrial sectors requiring high-precision imaging.
Features:
- Ruggedized design for harsh industrial environments
- High-resolution imaging for pixel sizes of 2μm or less
- Anti-vibration and shock-resistant (10G)
- Compact, lightweight design (φ31.8mm)
- Floating mechanism for versatile focus from close to long distance
- Click-type iris for precise aperture control
- Enhanced focus adjustment with a rotation angle 3x greater than standard lenses
- Also available in 12mm, 16mm, 25mm, 35mm, 50mm, and 75mm focal lengths
Applications:
- Manufacturing inspection
- Automated quality control systems
- Robotics and automation
- Automotive parts inspection
- Aerospace parts inspection
- Pharmaceutical packaging inspection
- Package foods and produce inspection
- Electronics and semiconductor inspection
| Focal Length | 8mm |
| Max. Aperture Ratio | 1:2.8 |
| Max. Image Format | φ11.8mm |
| Operation Range | Iris: F2.8 - F16.0 Focus: 0.1m - Inf |
| Control | Iris: Manual Focus: Manual |
| Angle Of View 2/3" | D: 67.5° H: 56.4° V: 43.9° |
| Angle Of View 1/2" | D: 52.0° H: 42.6° V: 32.6° |
| Angle Of View 1/3" | D: 40.2° H: 32.6° V: 24.7° |
| Operating Temperature | -10℃ ‐ +50℃ |
| Optical Distortion 2/3" | +0.06% |
| Optical Distortion 1/2" | -0.39% |
| Optical Distortion 1/3" | -0.38% |
| Back Focal Length | 10.2mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | - |
| Dimensions | φ31.8mm×39.45mm |
| Weight | 89g |
