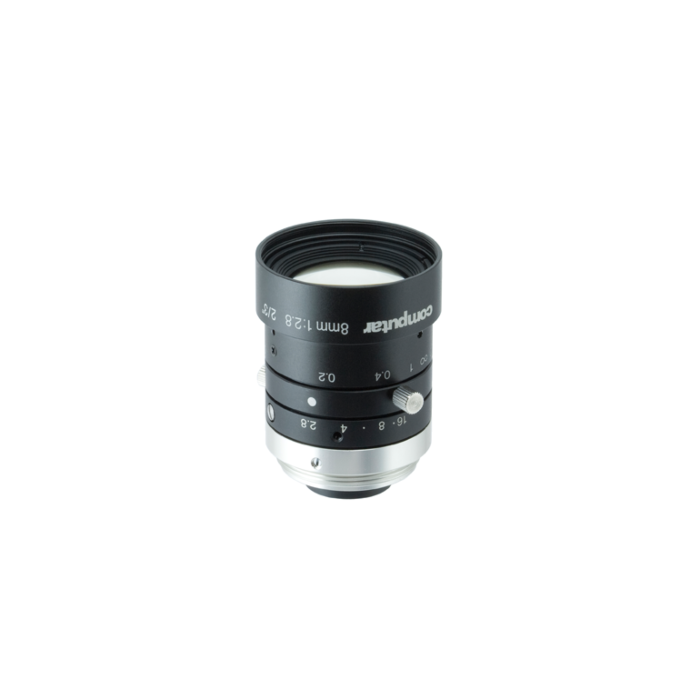

CBC-Computar M0828-MPW3 (M0828MPW3) 6 Megapixel 2/3" 8mm F2.8 (C Mount) Machine Vision Lens
SKU
M0828-MPW3
8 mm industrial camera lens for machine vision and factory automation applications.
Features:
- 2/3” Format
- 6 Megapixel
- 8mm Fixed
- F2.8
- Full HD Format
- Fixed Iris
- Compact & Lightweight
- Shorter Working Distance
- Nominal Distortion Design
- Ensures Corner Brightness
- Available in 8mm, 12mm, 16mm, 35mm, 50mm, 75mm
Applications:
- Machine Vision
- Factory Automation
- Pass/Fail Testing
- Inspection
| Focal Length | 8mm |
| Aperture (F) | 1:2.8 |
| Max. Image Format | 8.8mm x 6.6mm(φ11mm) |
| Operation Range | Iris F2.8 - 16.0 Focus 0.1m ‐ Inf. |
| Control | Iris Manual - Focus Manual |
| Object Dimension at M.O.D. | 2/3 Type 122.2 x 90.8mm 1/1.8 Type 98.2 x 75.8mm 1/2.5 Type 65.6 x 49.0mm |
| Angle of View | 2/3 Type D 68.5° H 57.0° V 44.2° 1/1.8 Type D 57.7° H 47.3° V 37.5° 1/2.5 Type D 47.2° H 38.5° V 29.4° |
| Operating Temperature | -10℃ ‐ +50℃ |
| Effective Lens Aperature | Front φ21.2mm Rear φ10.1mm |
| Distortion | 2/3 type -1.80%(y=5.5) 1/1.8 type -1.68%(y=4.32) 1/2 type -1.28%(y=4.0) |
| Back Focal Length | 9.2mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M30.5 P=0.5mm |
| Dimensions | φ32mm x 35.5mm |
| Weight | 58g |
