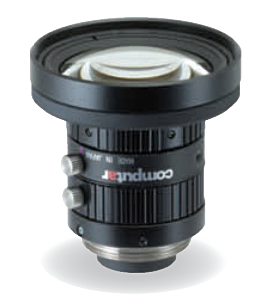

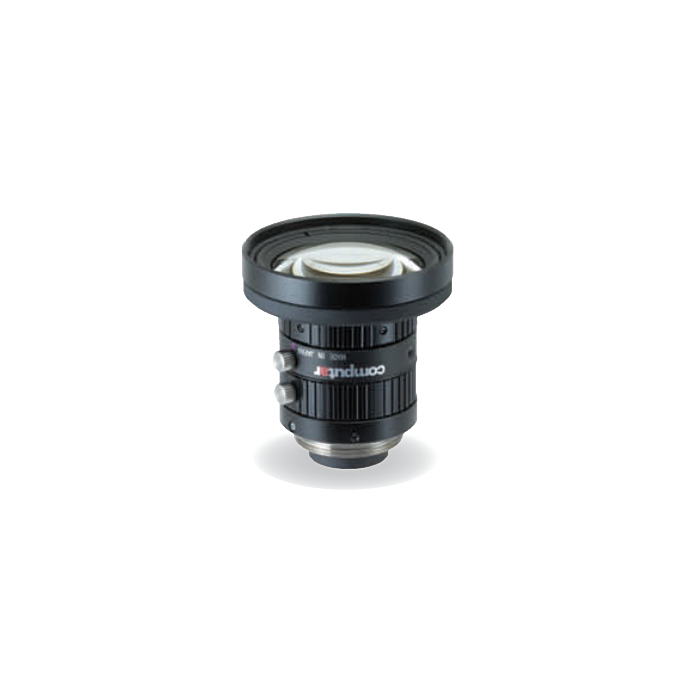

CBC-Computar M0528-MPX 5.5mm Fixed Lens for 2/3” 16MP Cameras (C-Mount)

Computar M0528-MPX 5.5mm 16MP Fixed Focal C-Mount Lens

The Computar M0528-MPX is a high-resolution 5.5mm fixed focal length C-mount lens designed for 2/3” type 16 megapixel industrial cameras. Built for machine vision, robotics, inspection, automation, intelligent traffic, security, and embedded imaging applications, the M0528-MPX delivers a wide field of view, low distortion, and precise manual control in a compact industrial lens format.

With support for an 11.8mm image circle, the M0528-MPX is well suited for 2/3” sensors and smaller formats, making it a strong option for high-resolution area scan cameras that require wide-angle coverage without sacrificing optical clarity. The 5.5mm focal length provides broad scene capture for inspection lines, positioning systems, robotics guidance, factory monitoring, and close-range vision applications where a larger field of view is required.

The manual iris range of F2.8 to F16.0 allows users to adjust light intake and depth of field based on the application environment, while the manual focus range from 0.10m to infinity provides flexibility for both close working distances and general imaging setups. The M0528MPX also features low distortion performance, a C-mount interface, and durable industrial construction for reliable integration into demanding imaging systems.

Key Features:

• 5.5mm fixed focal length for wide-angle machine vision imaging
• Designed for 2/3” type 16 megapixel cameras
• C-mount lens for industrial camera compatibility
• Supports up to φ11.8mm image circle diameter
• Manual iris control from F2.8 to F16.0
• Manual focus from 0.10m to infinity
• Low distortion performance for accurate imaging
• Wide field of view for 2/3”, 1/2”, and 1/3” sensors
• Compact φ48.0mm × 43.2mm lens body
• Industrial operating temperature range of -10°C to +50°C

Applications:

• Machine vision inspection
• Factory automation
• Robotics and autonomous systems
• Industrial quality control
• Intelligent traffic systems
• Security and surveillance imaging
• Measurement and positioning systems
• Wide-area monitoring
• Embedded vision platforms
• Medical, laboratory, and research imaging
