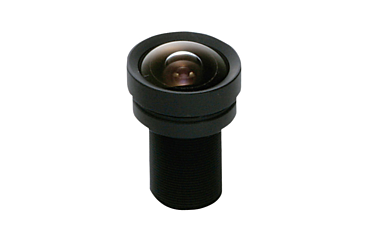

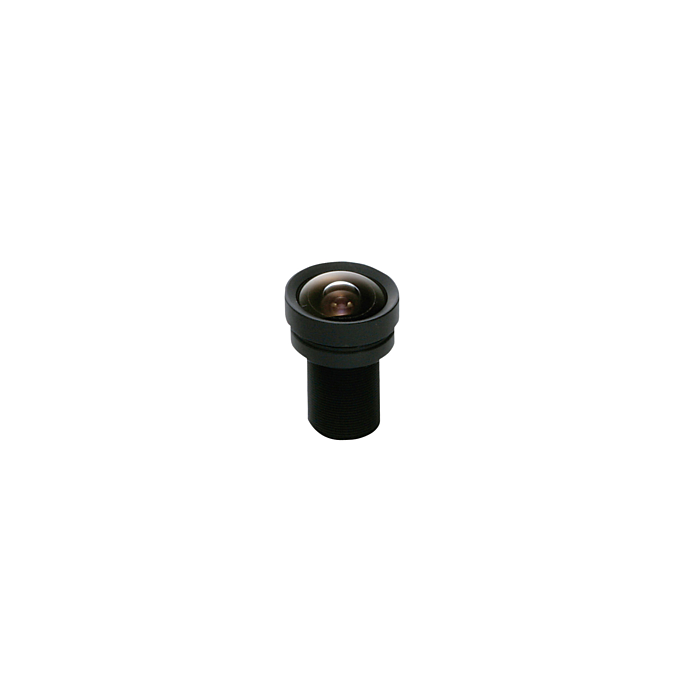

H0320KP: CBC-Computar 1/2" 3mm Board Lens (S-Mount)
1/2 type, Format Board Cameras, No Iris, f = 3.0mm, F2.0, Megapixel lens.
SKU
H0320KP
Features:
| Focal Length | 3.0mm |
| Max. Apeture Ratio | 1:2.0 |
| Max. Image Format | 6.4mm x 4.8mm(φ8mm) |
| Operation Range | Iris: - Focus: 0.1m - Inf. |
| Object Dimension at M.O.D. | 1/2 type: 28.3cm x 18.7cm (φ42.4) 1/3 type: 18.7cm x13.1cm (φ25.6) |
| Coating | MgF2 Single Coat (All Surfaces λ= 510nm) |
| Angle of View | 1/2 type: 125.3° (D) x 104.3° (H) x 80.5° (V) 1/3 type: 98.6° (D) x 80.5° (H) x 61.3° (V) 1/4 type: 75.8° (D) x 61.3° (H) x 46.3° (V) |
| Effective Lens Aperture | Front: φ14.5mm Rear: φ7.6mm |
| Distortion | -37.5% (y=4) |
| Back Focal Length | 5.09mm |
| Flange Back Length | - |
| Mount | M12 P=0.5mm |
| Dimensions | 18.5mm x 27.22mm |
| Weight | 11.0 g |
