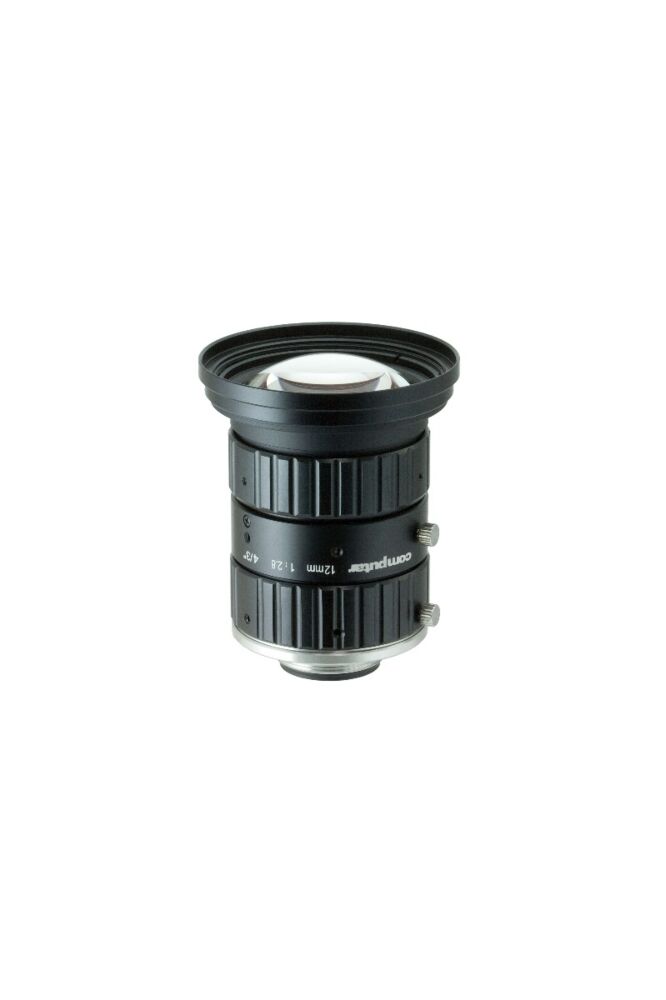

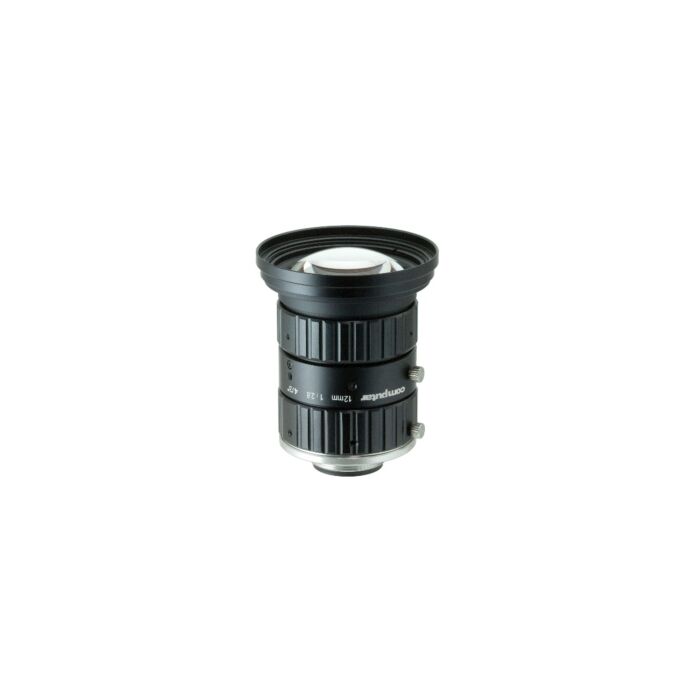

Computar F1228-MPT 45 Megapixel 1.4" 12mm F2.8 (C Mount) Machine Vision Lens
SKU
F1228-MPT
12 mm industrial camera lens for machine vision and factory automation applications.
Features:
- 1.4” Format
- 45 Megapixel
- 12mm Fixed
- F2.8
- IMX350 2.74μm
- Full HD Format
- Manual Iris
- Compact & Lightweight
- Ultra Low Distortion
- Also available in 16mm, 25mm, 35mm, and 50mm
| Focal Length | 12mm |
| Aperture (F) | 1:2.8 |
| Max. Image Format | φ23.1mm |
| Operation Range | Iris F2.8 - 16.0 Focus 0.15m ‐ Inf. |
| Control | Iris Manual Focus Manual |
| Operating Temperature | -10℃ ‐ +50℃ |
| Weight | 202g |
| Sensor Size | 1.4 Type - 19.08mm × 13.03mm - (D)86.1°x (H) 76.0°x (V) 56.2° 1.2 Type - 14.60mm × 12.63mm - (D)76.6°x (H) 61.9°x (V) 54.8° 1.1 Type - 14.19mm × 10.38mm - (D)71.6°x (H) 60.4°x (V) 46.1° |
| Effective Lens Aperture | Front: φ40.3mm Rear: φ18.9mm |
| Distortion (Inf.) | 1.4 Type - 0.13% |
| Back Focal Length | 10.8mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M72 P=0.75mm* |
| Dimensions | φ56.5mm×64.8mm φ75mm×66.1mm(withTM-1243) |
