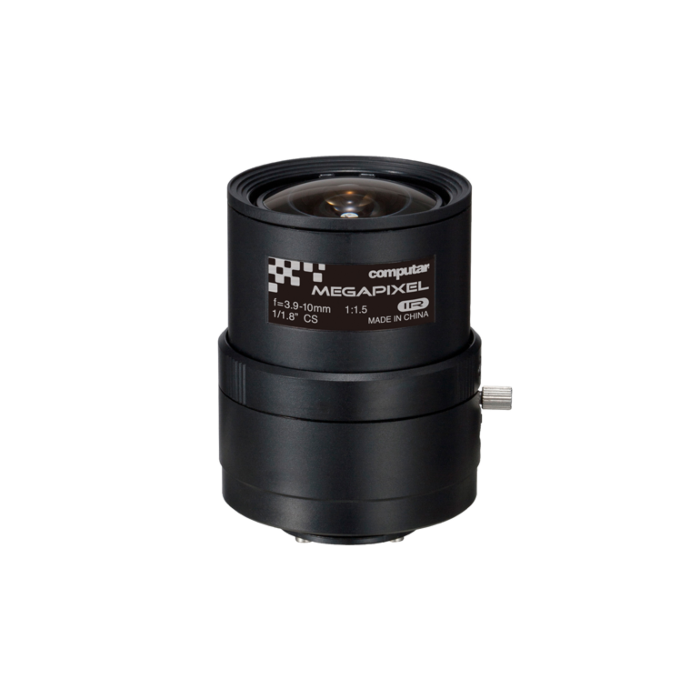

Computar E3Z3915CS-MPWIR (E3Z3915CSMPWIR) Manual Varifocal Day/Night IR (CS Mount) Lens
Computar's E3Z3915CS-MPWIR is a 4K, 1/1.8" 3.9-10mm F1.5 Varifocal, HD Series, Manual (CS Mount) Day/Night IR Lens
SKU
E3Z3915CS-MPWIR
The E3Z3915CS-MPWIR is part of the Megapixel Varifocal Lenses, a 4K model that brings all new clarity to HD and 4K cameras.
Features:
- 1/1.8” Format
- 4K Resolution
- 3.9-10mm Varifocal
- Manual Iris
- Precise Focus Adjustment
- IR Corrected Optics
- Corner Brightness
Applications:
- Machine Vision
- Industrial Imaging
- Harsh Environments
- Inspection
- Security
- Surveillance
- Photography
| Focal Length | 3.9mm - 10mm |
| Max. Aperture Ratio | 1:1.5 |
| Max. Image Format | 7.1mm x 5.4mm(φ8.9mm） |
| Operation Range | Iris: F1.5 ‐ F16C Focus: 0.8m - Inf. Zoom: 3.9mm - 10mm |
| Control | Iris: Manual Focus: Manual Zoom: Manual |
| Angle of View | 1/1.8 type : 144.1°‐ 52.9° (D) / 108.1°‐ 42.1° (H) / 79.7°‐ 32.0° (V) 1/2 type : 124.8°‐ 47.5° (D) / 96.0°‐ 37.9° (H) / 70.2°‐ 28.4° (V) 1/3 type : 89.3°- 35.5° (D) / 70.2°- 28.4° (H) / 52.1°- 21.3° (V) |
| Operating Temperature | -20°C - +60°C |
| Effective lens Aperture | Front: φ25.0mm Rear: φ10.0mm |
| Back Focal Length | Tele: 8.5mm Wide: 8.5mm |
| Flange Back Length | 12.5mm |
| Mount | CS-Mount |
| Filter Size | - |
| Dimensions | 40mm x 49mm x 59 mm |
| Weight | 69g |
