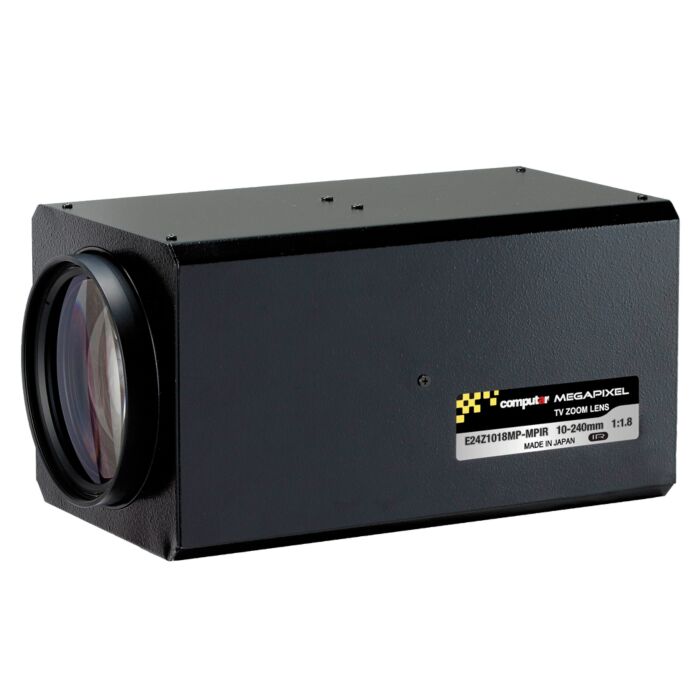

E24Z1018-MP (E24Z1018MP): CBC-Computar HD 1/1.8" 3 Megapixel, 10-240mm 24X Zoom Lens (C-Mount)
SKU
Computar E24Z1018-MP
Quick Overview
1/1.8" 3 Megapixel, C Mount, 10-240mm 24X Auto Iris Zoom Lens w/Preset.
Features:
| Sensor type | 1/2" |
| Mount Type | C |
| Focal Length | 10mm ‐ 240mm |
| Max. Aperture Ratio | 1:1.8 |
| Max. Image Circle | φ8.9mm |
| Operation Range | Iris: F1.8 ‐ F22C Focus: 4m ‐ lnf. Zoom: 10mm ‐ 240mm |
| Control | Iris: Motorized Focus: Motorized Zoom: Motorized |
| Angle of View | 1/1.8 type (4:3): 48.5°‐ 2.2° - 39.0°‐ 1.7° - 29.5°‐ 1.3° 1/2 type (4:3): 43.7°‐ 1.9° - 35.2°‐ 1.6° - 26.5°‐ 1.2° 1/3 type (4:3): 33.0°‐ 1.5° - 26.5°‐ 1.2° - 20.0°‐ 0.9° |
| Supply Voltage | DC6V |
| Current | 90mA or less |
| Response Time | Approx. 4.5 sec. |
| Preset Potentiometer | ---- |
| Effective Lens Aperture | Front: φ66mm Rear: φ13mm |
| Back Focal Length | 14.1mm |
| Flange Back Length | 17.526mm |
| Mount | C‐Mount |
| Filter Size | M77 P=1mm |
| Tripod Screw | 1/4 -20UNC |
| Dimensions | 101mm x 102.4mm x 198.2mm |
| Weight | 2120g |
