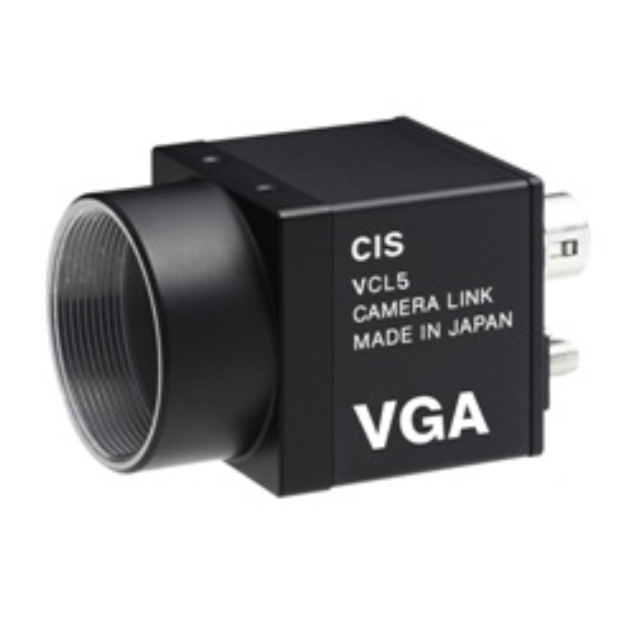

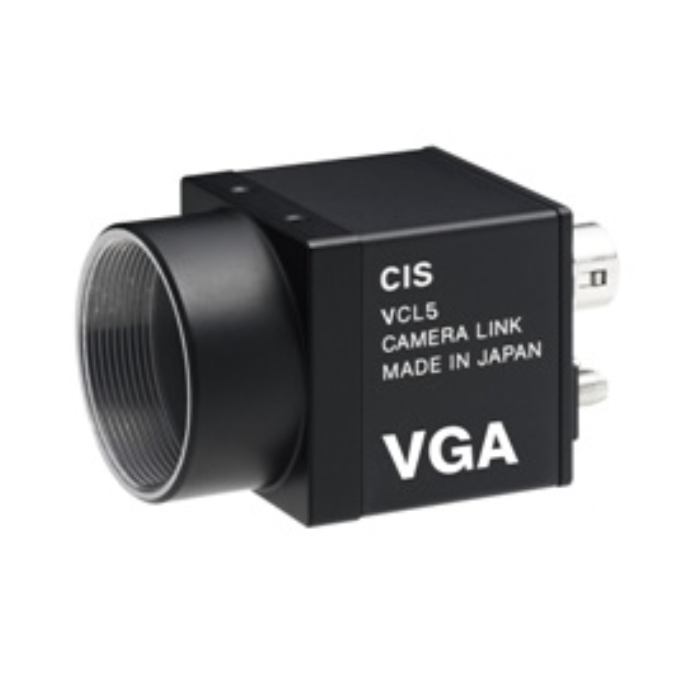

CIS VCC-VCL5R VGA Camera with 1/2.9" CMOS, Camera Link Interface, Global Shutter
The CIS VCC-VCL5R VGA Camera Link camera delivers high-performance industrial imaging built for speed, precision, and reliability. Made in Japan and fully NDAA Compliant, this compact CIS model integrates the Sony Pregius IMX287 global shutter CMOS sensor—renowned for sharp, distortion-free capture at exceptionally high frame rates. Measuring only 29 mm cubic and achieving over 500 fps (depending on tap configuration), the VCCVCL5R provides dependable performance for automated inspection, robotics, and precision measurement systems.
Designed for broad machine vision and factory automation applications, the Camera Link interface supports selectable 1-, 2-, and 3-tap operation, ensuring compatibility with modern frame grabbers. Flexible functions including ROI, shading correction, sub-sampling, external trigger modes, and user-defective pixel correction streamline integration into both new and legacy systems.
Features:
- Powered by Sony Pregius IMX287 global shutter CMOS sensor
- VGA resolution (748 × 544) optimized for speed-critical inspection
- Ultra-fast frame rates: up to 519 fps (3-tap, 74.25 MHz)
- Camera Link interface with selectable 1-/2-/3-tap operation
- Compact 29 × 29 × 29 mm housing for easy machine integration
- ROI, sub-sampling, shading correction & user-defective pixel control
- PoCL selectable for simplified power and cabling
- External trigger support: fixed + pulse-width trigger modes
Applications:
- High-speed automated inspection
- Semiconductor / PCB testing
- Packaging and labeling verification
- High-speed metrology and measurement
- Factory automation (FA) workflows
- Motion analysis and process monitoring
- Robotics and precision guidance systems
| Color/Mono | Color |
| Resolution | VGA |
| fps @ Max Resolution | CLK74.25MHz:519.28fps(3tap)、316.76fps(2tap)、175.0fps(1tap) CLK64.969MHz : 452.52fps(3tap)、276.65fps(2tap)、153.02fps(1tap) CLK37.125MHz : 259.64fps(3tap)、158.38fps(2tap)、87.50fps(1tap) |
| Output Format | 8bit/10bit/12bit |
| Sensor Model Name | IMX287 (Pregius) |
| Shutter Type | Global Shutter |
| Imager Size | 1/2.9 CMOS |
| Effective Pixels | 748 x 544 |
| Pixel Size (μm) | 6.90 x 6.90 |
| Pixel Clock (MHz) | 74.25 / 64.969 / 37.125 |
| Shutter Variable Range | 1/95～1/50000s |
| Interface | Camera Link |
| Lens Mount | C Mount |
| Dimensions (W) x (H) x (D)mm | 29 x 29 x 29 |
