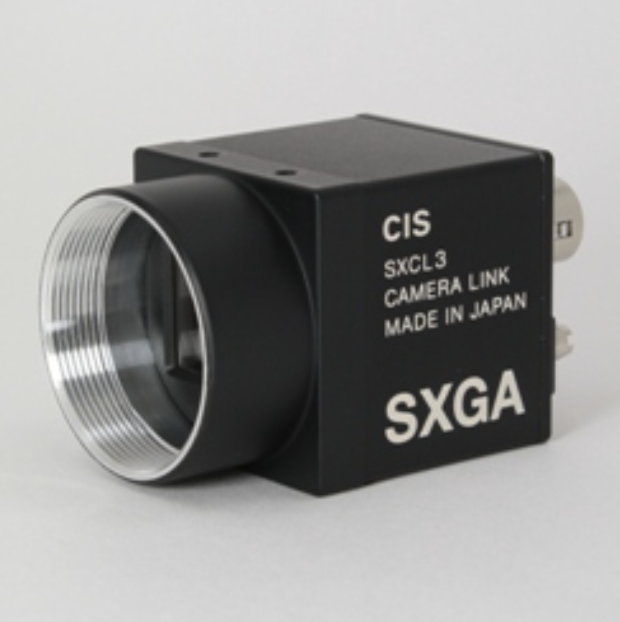

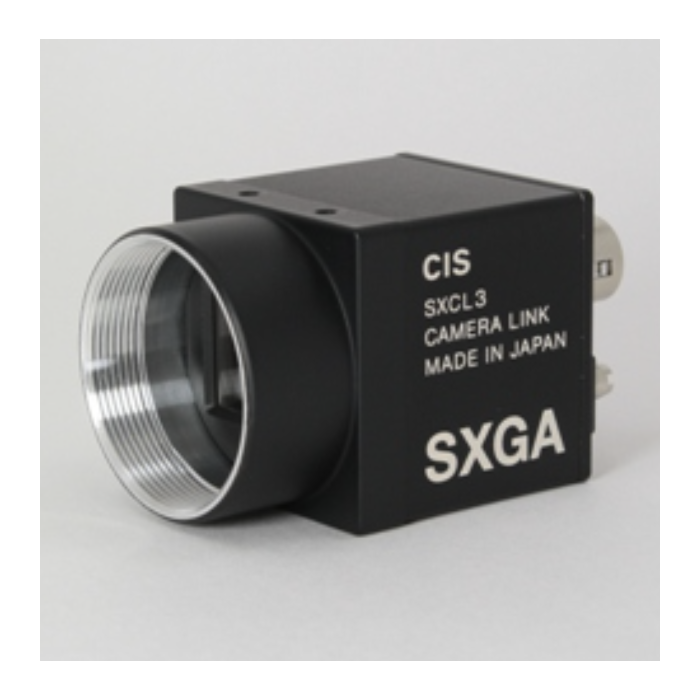

CIS VCC-VCL3R 1/4 CMOS High Speed Camera Link Color Camera
SKU
VCC-VCL3R
Quick Overview
Compact 29mm industrial CMOS camera made in Japan and NDAA compliant. Delivers up to 537.6fps for high‑speed embedded vision systems.
The CIS VCC‑VCL3R compact industrial camera is Made in Japan and fully NDAA compliant, delivering superior reliability and precision manufacturing standards. Engineered for high‑speed performance in space‑constrained applications, this 29mm cubic camera (approx. 50g) is ideal for embedded vision systems where both speed and size matter.
Featuring a global shutter CMOS sensor and Camera Link Base interface, the VCCVCL3R provides outstanding imaging quality and flexibility. Users can select 1Tap, 2Tap, or 3Tap output configurations, achieving frame rates up to 537.6fps (3Tap), 267.7fps (2Tap), or 133.8fps (1Tap). This versatile configuration enables precise capture of high‑speed motion in demanding environments.
Features:
- 29mm cubic in size
- Global shutter type CMOS sensor
- Camera Link I/F
- ROI
- Sub-sampling
- External trigger
Applications:
- Embedded Vision
- High‑Speed Imaging
- OEM Integration
| Color/Mono | Color |
| Resolution | VGA |
| fps @ Max Resolution | Base: 537.6fps(3tap)、267.7fps(2tap)、133.8fps(1tap) |
| Output Format | 8bit / 10bit |
| Sensor Model Name | Python 300 |
| Shutter Type | Global Shutter |
| Imager Size | 1/4 CMOS |
| Effective Pixels | 640 x 480 |
| Pixel Size (μm) | 4.8 × 4.8 |
| Pixel Clock (MHz) | 72 / 36 |
| Power Consumption | Tpy 2.0W (DC+12V IN ) |
| Power Requirement | DC12V ±10% |
| Shutter Variable Range | OFF～1/10,000 |
| Interface | Camera Link |
| Lens Mount | C Mount |
| Weight (g) | Approx. 50g |
| Dimensions (W) x (H) x (D)mm | 29 × 29 × 29 |
