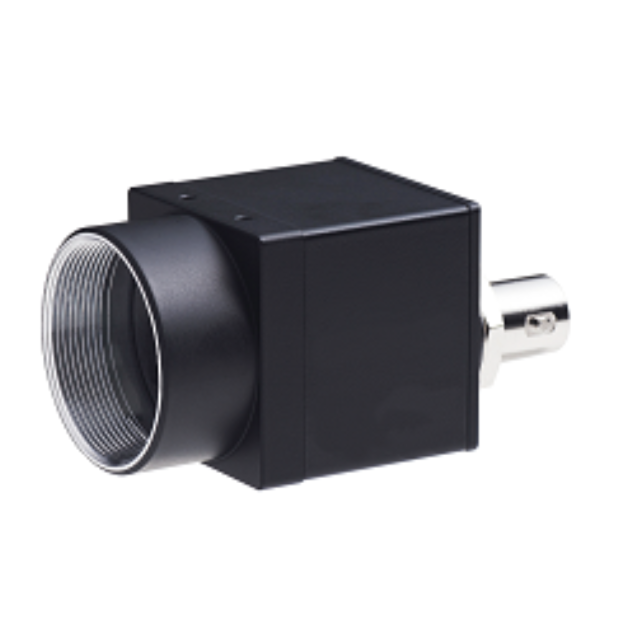

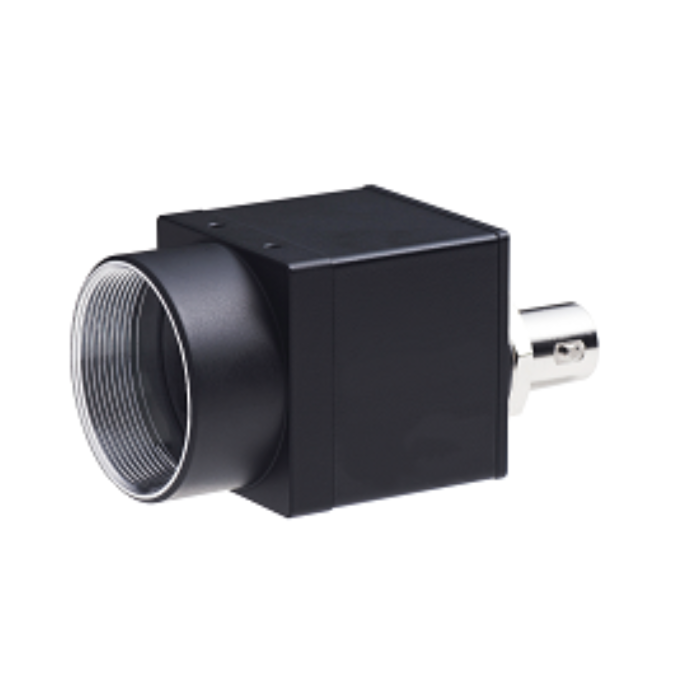

CIS VCC-SXCXP5R 1/2.9 CMOS Color CoaXPress Camera
The CIS VCC-SXCXP5R (VCCSXCXP5R) is a compact, cost-effective CoaXPress (CXP) industrial camera engineered for high-speed machine vision applications. Made in Japan and fully NDAA compliant, this small 29mm cube camera delivers outstanding reliability and precision image performance for factory automation, inspection, and robotic vision systems.
Powered by a 1/2.9-type global shutter CMOS sensor, it achieves 1.6M pixel resolution and up to 276 fps at CXP-6 with ROI OFF, providing crisp, distortion-free images even at high frame rates. The camera supports CoaXPress CXP-3 and CXP-6, ensuring stable 30m data transmission and seamless integration with modern vision systems.
Key functions include external trigger control, adjustable exposure and gain settings, ROI, H&V flip, defective pixel and shading correction, gamma correction, and Power over CoaXPress (PoCXP) capability. Its GenICam compliance and C-mount interface make setup effortless and compatible with a wide range of lenses and frame grabbers.
Designed and manufactured in Japan for uncompromising quality, this NDAA-compliant CoaXPress camera is ideal for OEMs and system integrators focused on reliable, secure, and high-speed imaging performance.
Features:
- CoaXPress CXP-3, CXP-6
- 1 lane
- Approx. 30m of Max. cable length
- ROI
- Exposure and Gain settings
- External trigger mode (Fixed trigger shutter mode/Pulse width trigger shutter mode)
- GenICam complied
- C mount
Applications:
- Factory automation (FA) inspection systems
- Automated Optical Inspection (AOI)
- Flat Panel Display (FPD) inspection
- Robotic guidance and positioning
- High-speed surface defect detection
- Print/Packaging quality control
- Semiconductor wafer inspection
- Motion artifact-free capture
| Color/Mono | Color |
| Resolution | SXGA |
| fps @ Max Resolution | 172fps(CXP3), 276fps(CXP6), |
| Output Format | BayerRG 8/10/12 |
| Sensor Model Name | Pregius IMX273 |
| Shutter Type | Global Shutter |
| Imager Size | 1/2.9 CMOS |
| Effective Pixels | 1456 x 1088 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Power Consumption | 2.95W(CXP-3), 3.15W (CXP-6) |
| Power Requirement | PoCXP |
| Min. Illumination | 12bit/10bit Mode 0.3lx (F1.4, Gain 42dB, 1/30s, Level=50%) / 8bit Mode 0.09lx (F1.4, Gain 42dB, 1/30s, Level=50%) |
| Sensitivity | 12bit/10bit Mode F5.6 400lx 3200K 1/30s Gain 0dB / 8bit Mode F11 400lx 3200K 1/30s Gain 0dB |
| Interface | CXP-3/6 |
| Lens Mount | C Mount |
| Weight (g) | 50 |
| Dimensions (W) x (H) x (D)mm | 29 × 29 × 29 |
