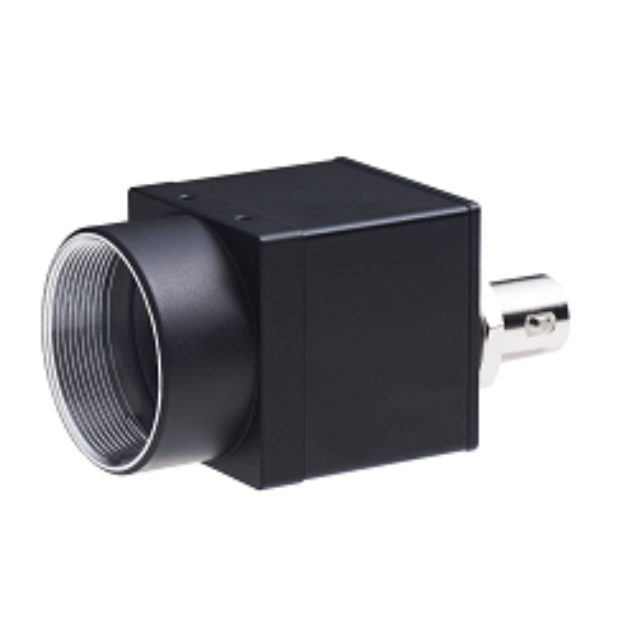

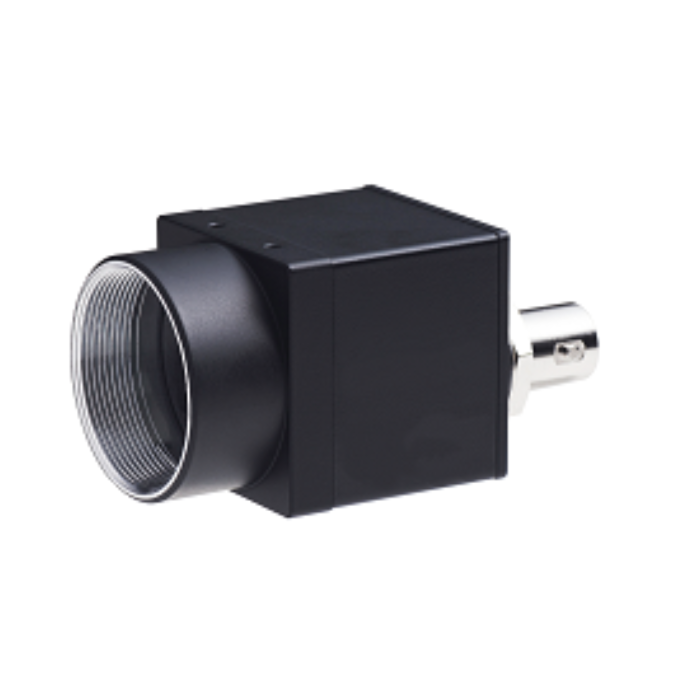

CIS VCC-SXCXP5M 1/2.9 CMOS Monochrome CoaXPress SXGA Camera with Global Shutter, PoCXP, C-Mount
The CIS VCC-SXCXP5M is a Made in Japan, NDAA compliant CoaXPress industrial camera engineered for high-speed machine vision and factory automation applications. Compact yet powerful at just 29 × 29 × 29 mm, this cost-effective camera delivers reliable CoaXPress (CXP-3 / CXP-6) performance with frame rates up to 276 fps using a single-lane CoaXPress interface supporting data transmission up to 30 meters.
Built with a precision 1/2.9" global shutter CMOS sensor, the VCC-SXCXP5M captures 1.6-megapixel (SXGA) resolution images (1456 × 1088) with high-speed accuracy ideal for inspection systems, robotics, electronics testing, and medical imaging.
Designed and manufactured in Japan for superior quality assurance, the VCCSXCXP5M is NDAA Section 889 compliant, ensuring suitability for U.S. government integrators and secure infrastructure projects.
Equipped with professional-grade features including external trigger modes, ROI, exposure and gain control, H&V flip, defective pixel and shading correction, gamma correction, and PoCXP (Power over CoaXPress), this camera delivers high flexibility for OEMs and system designers.
GenICam compatible and built with a C-mount interface, it easily integrates into existing machine vision systems. The lightweight 50g body and robust construction make it ideal for industrial environments requiring dependable, compact, and high-performance image capture.
Features:
- CoaXPress CXP-3, CXP-6 Interface
- 1 Lane, 30m Max Cable Length
- 1/2.9" Global Shutter CMOS Sensor
- 1.6M Pixel SXGA Resolution (1456 x 1088)
- Up to 276fps (CXP-6)
- ROI, Exposure & Gain Settings
- External Trigger Modes (Fixed, Pulse Width)
- Defective Pixel & Shading Correction
- Gamma Correction
- PoCXP Power Over CoaXPress
- GenICam Compatible
- C Mount Lens Interface
- Compact 29 x 29 x 29 mm Size
- Lightweight 50g
Applications:
- Factory Automation
- Quality Inspection
- Robotics Vision
- Electronics Testing
- Precision Sorting
- Medical Imaging
| Color/Mono | Mono |
| Resolution | SXGA |
| fps @ Max Resolution | 172fps(CXP3), 276fps(CXP6), |
| Output Format | MONO 8/10/12 |
| Sensor Model Name | Pregius IMX273 |
| Shutter Type | Global Shutter |
| Imager Size | 1/2.9 CMOS |
| Effective Pixels | 1456 x 1088 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Power Consumption | 2.95W(CXP-3), 3.15W (CXP-6) |
| Power Requirement | PoCXP |
| Min. Illumination | 12bit/10bit Mode 0.3lx (F1.4, Gain 42dB, 1/30s, Level=50%) / 8bit Mode 0.09lx (F1.4, Gain 42dB, 1/30s, Level=50%) |
| Sensitivity | 12bit/10bit Mode F5.6 400lx 3200K 1/30s Gain 0dB / 8bit Mode F11 400lx 3200K 1/30s Gain 0dB |
| Interface | CXP-3/6 |
| Lens Mount | C Mount |
| Weight (g) | 50 |
| Dimensions (W) x (H) x (D)mm | 29 × 29 × 29 |
