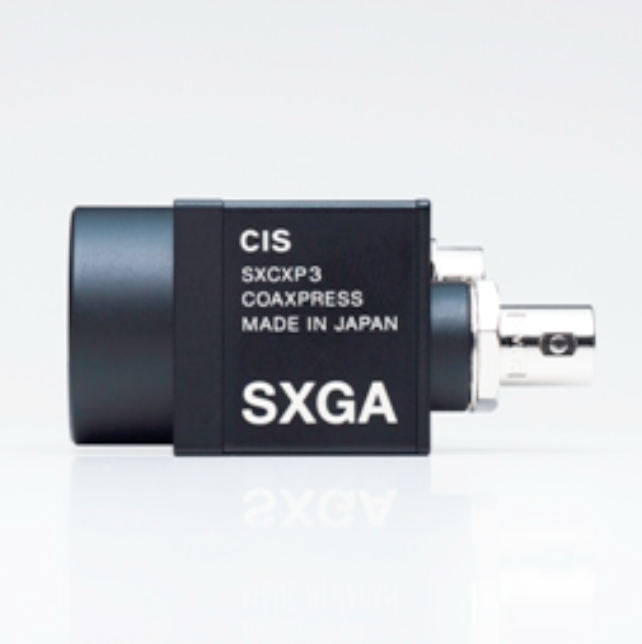

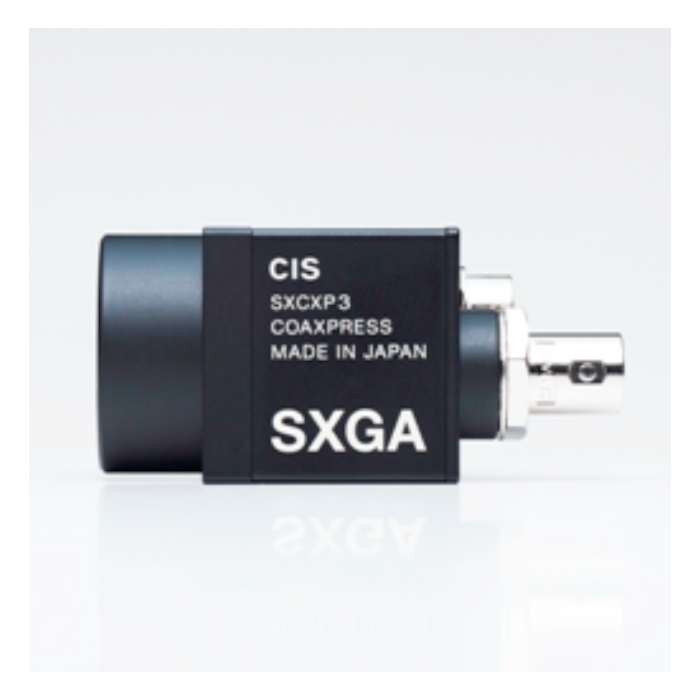

CIS VCC-SXCXP3R 1/2 CMOS SXGA Camera
The CIS VCC-SXCXP3R industrial camera is a Made in Japan, NDAA-compliant SXGA CMOS camera designed for uncompromising reliability and image precision. Engineered by CIS (CBC Group, Japan) for advanced machine vision and factory automation, this compact 29mm cubic camera integrates seamlessly into high-performance inspection and automation systems.
Built with a global shutter CMOS sensor, the VCCSXCXP3R ensures ultra-clear, distortion-free imaging even during high-speed motion or fluctuating lighting. Its high-speed CoaXPress interface (CXP1, CXP2, and CXP3) delivers exceptional bandwidth for real-time processing and rapid data transfer.
Key features like global trigger shutter operation, ROI (Region of Interest) control, and sub-sampling expand system flexibility while maintaining precise, high-quality image output. The durable, precision-crafted housing reflects Japanese engineering standards for industrial reliability and long-term stability.
Features:
- Compact and rugged design
- High-speed CoaXPress interface
- Global shutter CMOS sensor
- Versatile image capture options
Ideal for:
- Industrial inspection and quality control
- Automated assembly and packaging
- Machine vision and robotics
- Electronic component inspection
| Model | VCC-SXCXP3R |
| Color/Mono | Color |
| Resolution | SXGA |
| Frame Rate | 75(CXP1), 150(CXP2), 168.5(CXP3) |
| Output/Format | BayerRG8/10 |
| Image Sensor | 1/2 CMOS(GS) |
| Effective Pixels | 1280 x 1024 |
| Unit Cell Size (μm) | 4.8 x 4.8 |
| Pixel Clock (MHz) | 72M |
| Power Consumption | TBD |
| Power Requirement | PoCXP |
| Min. Illumination | TBD |
| Sensitivity | TBD |
| Shutter Variable Range | OFF～1/10000 |
| Signal I/F | CXP-1/2/3 |
| Lens Mount | C |
| Weight | 50g |
| Dimensions (W) x (H) x (D)mm | 29 x 29 x 29 |
