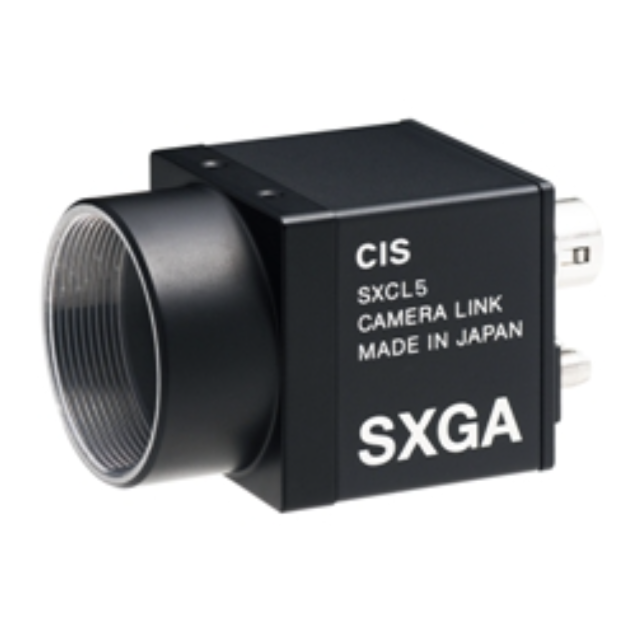

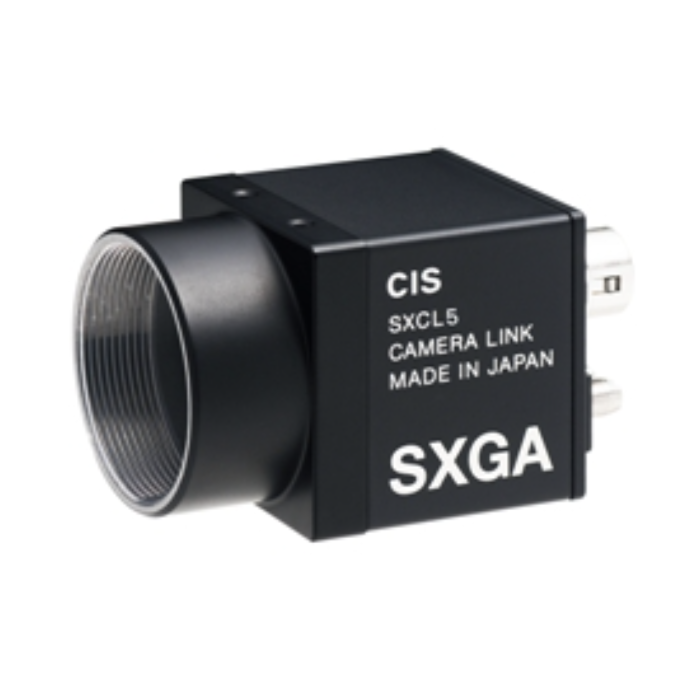

CIS VCC-SXCL5R Camera Link 1.5MP Monochrome Camera with 1/2.9 Sony IMX273 Pregius CMOS, Global Shutter, 135.7fps
The CIS VCC-SXCL5R is a compact, high-performance Camera Link industrial camera made in Japan and fully NDAA compliant—ideal for mission-critical imaging environments requiring trusted reliability and precision. Built with a 1/2.9-type, 1.5MP Sony IMX273 Pregius global shutter CMOS sensor, it delivers distortion-free, high-speed imaging even for moving targets.
Designed for industrial environments, the VCCSXCL5R supports Camera Link output (1-tap, 2-tap, or 3-tap) and captures up to 135.7 fps full-frame or 515 fps in binning mode, offering superb flexibility for a range of automated systems. Its rugged 29mm cubic design, low 2.2W power draw, and advanced tools like ROI, shading correction, and defective pixel correction make it the top choice for integrators and OEMs seeking a compact, dependable vision solution.
Features:
- 1/2.9-type, 1.5MP global shutter CMOS (IMX273 Pregius)
- Camera Link output with 1/2/3 tap and clock selection
- Up to 135.7fps full-frame capture (515fps binning mode)
- Fixed or pulse-width trigger shutter options
- Shading and defective pixel correction
- ROI and binning functionality
- Compact 29×29×29mm cube design
- Low power consumption (2.2W)
Applications:
- Machine Vision
- Factory Automation
- PCB Inspection
- Optical Measurement
- Robotics Imaging
- Quality Control
| Color/Mono | Color |
| Resolution | 1.5M |
| fps @ Max Resolution | CLK:74.25MHz : 45.50fps (1TAP)、90.75fps (2TAP)、135.76fps (3TAP) 、 CLK 64.969MHz:39.77fps (1TAP)、79.35fps(2TAP)、118.60fps(3TAP)、 CLK37.125MHz：22.75fps(1TAP)、45.37fps(2TAP)、67.88fps(3TAP) |
| Output Format | 8bit/10bit/12bit |
| Sensor Model Name | IMX273 (Pregius) |
| Shutter Type | Global Shutter |
| Imager Size | 1/2.9 CMOS |
| Effective Pixels | 1456 x 1088 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Pixel Clock (MHz) | 74.25 / 64.969 / 37.125 |
| Power Consumption | 2.2W |
| Interface | Camera Link |
| Lens Mount | C Mount |
| Dimensions (W) x (H) x (D)mm | 29 x 29 x 29 |
