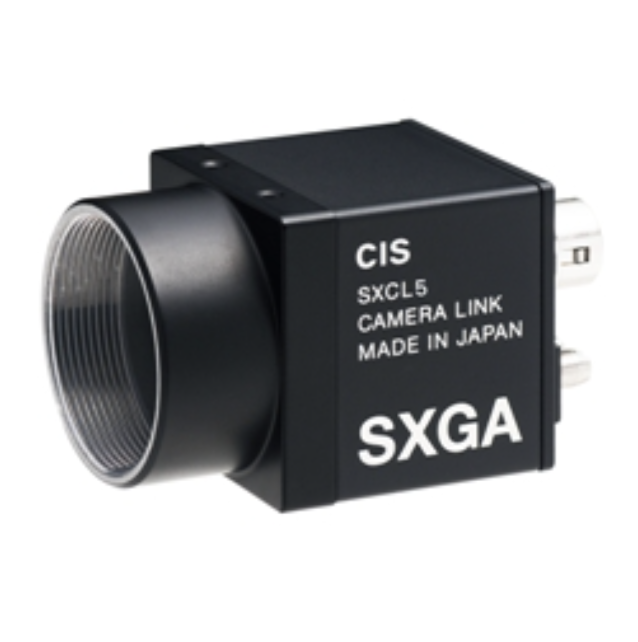

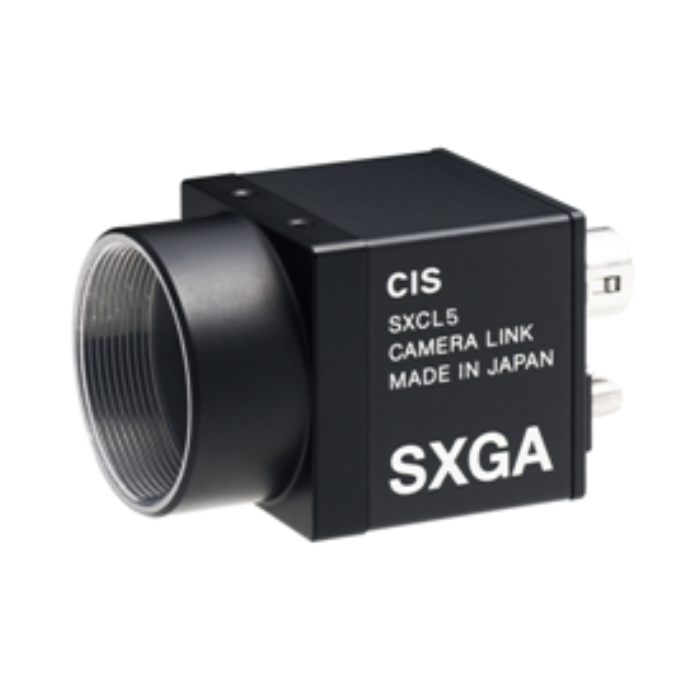

CIS VCC-SXCL5M 1/2.9 CMOS SXGA Monochrome CameraLink Camera
The CIS VCC-SXCL5M Camera Link camera delivers outstanding speed and image precision in a compact 29mm cube design. Made in Japan and fully NDAA compliant, this high-quality machine vision camera features a 1/2.9-inch CMOS global shutter sensor with 1.5 megapixels (SXGA) resolution, providing crisp, distortion-free images even in high-speed industrial environments.
Engineered for performance, the VCC-SXCL5M achieves up to 135.7 fps at full resolution and 515 fps with binning, making it ideal for demanding industrial automation and machine vision applications. Its Camera Link interface ensures seamless integration with existing vision systems for consistent, low-latency output.
This camera also includes advanced imaging controls such as shading correction, defective pixel correction, ROI (Region of Interest) functionality, and flexible trigger shutter modes. Built with the precision and reliability expected from CIS Japan, the VCCSXCL5M excels where accuracy, performance, and compliance are essential.
Features:
- Global shutter CMOS sensor
- High-speed frame rate: 135.7fps (full frame), 515fps (binning)
- Compact 29mm cubic size
- Camera Link interface with flexible output options
- Shading and defective pixel correction
- ROI function for targeted imaging
Applications:
- High-speed production line monitoring
- Precision inspection and quality control
- Automated visual inspection systems
- Robotics and motion analysis
- Industrial automation and process control
| Color/Mono | Mono |
| Resolution | 1.5M |
| fps @ Max Resolution | CLK:74.25MHz : 45.50fps (1TAP)、90.75fps (2TAP)、135.76fps (3TAP) 、 CLK 64.969MHz:39.77fps (1TAP)、79.35fps(2TAP)、118.60fps(3TAP)、 CLK37.125MHz：22.75fps(1TAP)、45.37fps(2TAP)、67.88fps(3TAP) |
| Output Format | 8bit/10bit/12bit |
| Sensor Model Name | IMX273 (Pregius) |
| Shutter Type | Global Shutter |
| Imager Size | 1/2.9 CMOS |
| Effective Pixels | 1456 x 1088 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Pixel Clock (MHz) | 74.25 / 64.969 / 37.125 |
| Power Consumption | 2.2W |
| Interface | Camera Link |
| Lens Mount | C Mount |
| Dimensions (W) x (H) x (D)mm | 29 x 29 x 29 |
