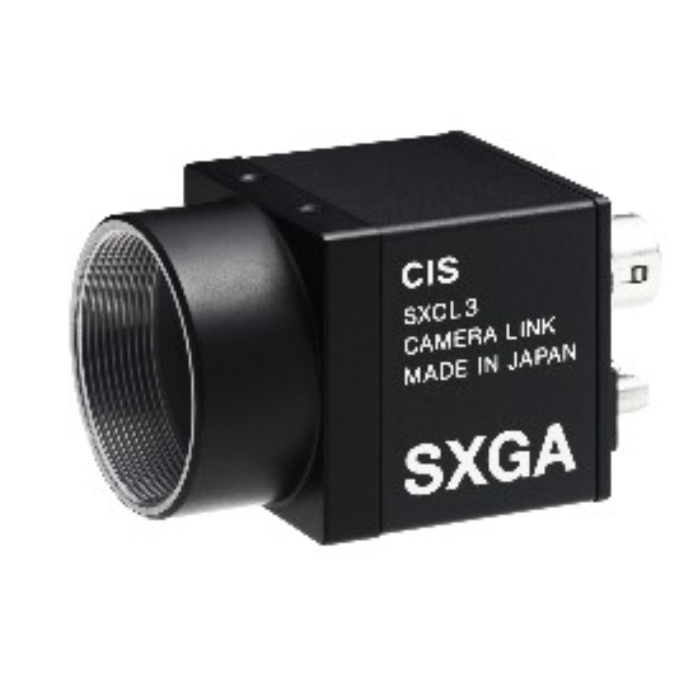

CIS VCC-SXCL3R 1/2 CMOS SXGA Color Camera Link Camera
High-Performance CIS VCC-SXCL3R SXGA Color Camera for Industrial and Machine Vision Applications
The CIS VCC-SXCL3R is a compact and cost-effective SXGA color camera designed for industrial and machine vision applications. Equipped with a 1/2-inch Sony Pregius CMOS sensor, this camera delivers high-speed performance with a frame rate of up to 152fps. The 29mm cubic design allows for easy integration into space-constrained environments, making it an ideal choice for factories and automated systems. Its Camera Link interface ensures fast and reliable data transfer, while features like ROI (Region of Interest), sub-sampling, external trigger mode, and PoCL (Power over Camera Link) provide flexibility and enhanced functionality.
With a global shutter, the CIS VCC-SXCL3R captures crisp, distortion-free images of fast-moving objects, essential for precision tasks in manufacturing, quality control, and automated inspection. This camera is designed to meet the demanding needs of machine vision applications, providing reliable performance in challenging industrial environments. Whether you require high-speed imaging, accurate color representation, or compact form factor, the CIS VCC-SXCL3R delivers exceptional results, making it a valuable asset for your imaging needs.
Features:
- 29mm cubic size
- Global shutter CMOS sensor
- SXGA resolution with up to 152fps
- Camera Link interface
- External trigger mode
- ROI and sub-sampling functions
- PoCL selectable
Applications:
- Automated inspection systems
- Manufacturing quality control
- High-speed industrial imaging
- Precision measurement tasks
- Factory automation (FA) systems
| Color/Mono | Color |
| Resolution | SXGA |
| fps @ Max Resolution | Base: 151.7fps(3tap)、83.8fps(2tap)、41.9fps(1tap) |
| Output Format | 8bit/10bit |
| Sensor Model Name | Python 1300 |
| Shutter Type | Global Shutter |
| Imager Size | 1/2 CMOS |
| Effective Pixels | 1280 x 1024 |
| Pixel Size (μm) | 4.8 x 4.8 |
| Pixel Clock (MHz) | 72 / 36 |
| Power Consumption | Tpy 2.0W (DC+12V IN) |
| Power Requirement | DC12V ±10% |
| Min Illumination | F1.4 0.9lx |
| Sensitivity | F5.6 400 lx |
| Shutter Variable Range | OFF(1/85) ~ 1/10000s |
| Interface | Camera Link |
| Lens Mount | C Mount |
| Weight (g) | 50 |
| Dimensions (W) x (H) x (D)mm | 29 x 29 x 29 |
