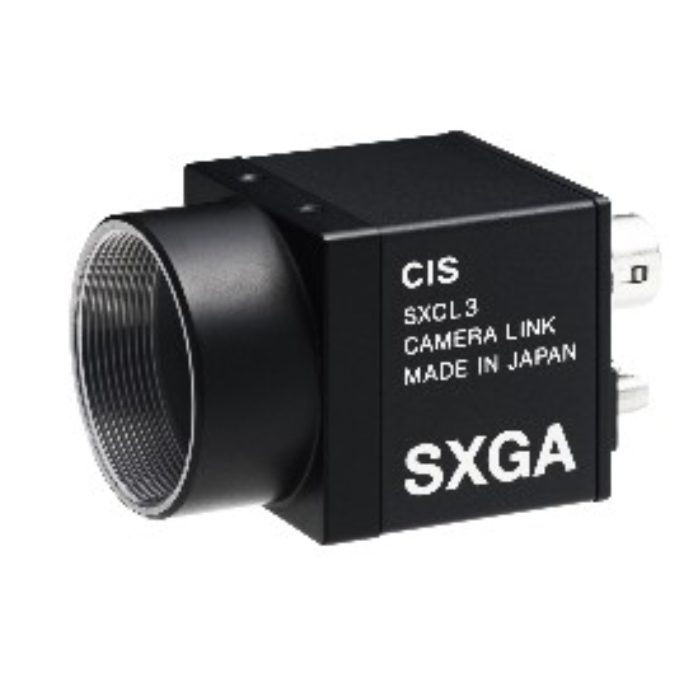

CIS VCC-SXCL3M 1/2 CMOS SXGA Monochrome Camera Link Camera
The CIS VCC-SXCL3M is a compact, high-performance Camera Link industrial camera designed for precision imaging applications. Made in Japan and fully NDAA compliant, this model delivers outstanding image quality, reliability, and long-term supply security—ideal for customers requiring U.S. government–approved components.
With its 1/2-type Sony Pregius CMOS global shutter sensor, the VCC-SXCL3M offers SXGA resolution and impressive high-speed performance at 152 frames per second. Its space-saving 29mm cubic housing provides installation flexibility for demanding factory automation (FA) and machine vision setups.
The camera supports essential functions such as external trigger mode, ROI, sub-sampling, gain control, defective pixel correction, and Power over Camera Link (PoCL) for simplified system integration.
Features:
- 29mm cubic in size
- Global shutter CMOS sensor
- Camera Link I/F
- ROI
- Sub-sampling
- External trigger
Applications:
- Factory Automation & other machine vision applications
| Color/Mono | Mono |
| Resolution | SXGA |
| fps @ Max Resolution | Base: 151.7fps(3tap)、83.8fps(2tap)、41.9fps(1tap) |
| Output Format | 8bit/10bit |
| Sensor Model Name | Python 1300 |
| Shutter Type | Global Shutter |
| Imager Size | 1/2 CMOS |
| Effective Pixels | 1280 x 1024 |
| Pixel Size (μm) | 4.8 x 4.8 |
| Pixel Clock (MHz) | 72 / 36 |
| Power Consumption | Tpy 2.0W (DC+12V IN) |
| Power Requirement | DC12V ±10% |
| Min Illumination | F1.4 0.9lx |
| Sensitivity | F5.6 400 lx |
| Shutter Variable Range | OFF(1/85) ~ 1/10000s |
| Interface | Camera Link |
| Lens Mount | C Mount |
| Weight (g) | 50 |
| Dimensions (W) x (H) x (D)mm | 29 x 29 x 29 |
