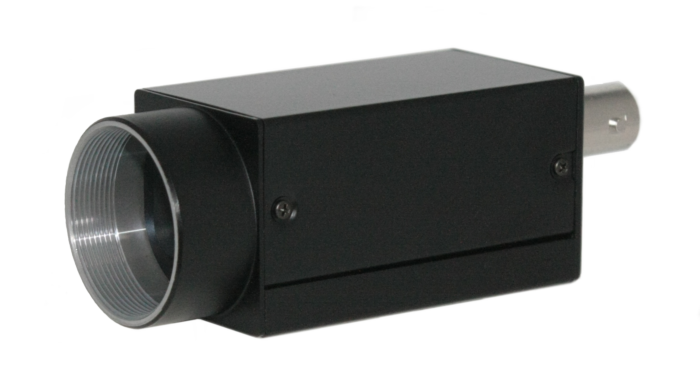

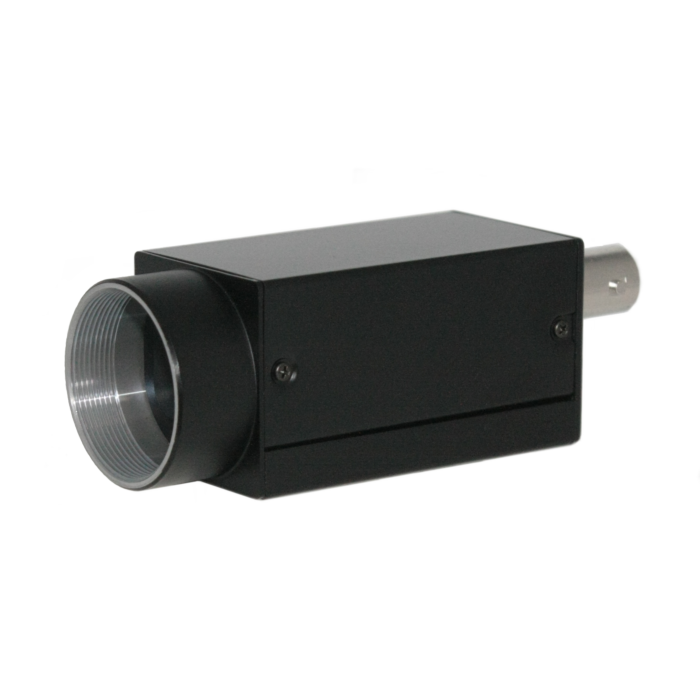

CIS VCC-HD5 Full HD 2MP Color Camera with 1/1.8" Sony Pregius CMOS, 3G-SDI Interface, 60fps
Experience superior clarity and precision with the CIS DCC-HD5 (VCC-HD5) — a Made in Japan, NDAA Compliant Full HD camera module designed for professional broadcast, industrial, and OEM imaging applications. Featuring the advanced Clairvu™ ISP and a native Sony Pregius 1/1.8" global shutter CMOS sensor (IMX265), this compact 3G-SDI camera delivers exceptionally sharp, low-latency 1080p60 video with true color reproduction and zero motion blur.
Engineered for performance-critical environments, the DCCHD5 ensures uncompressed digital signal transmission over standard coaxial cable for maximum reliability. Built in Japan under strict quality control, it supports Gen Lock synchronization, auto exposure, auto white balance, and powerful in-camera image adjustments including edge enhancement, noise reduction, and OSD control. Ideal for integrators seeking NDAA-compliant vision systems that meet both U.S. security standards and professional broadcast specifications.
Features:
- Full HD 1080p, 60fps output
- Premium CIS Clairvu™ ISP
- Global Shutter (Sony Pregius IMX265)
- Compact footprint: 29 x 29 x 55 mm
- Gen Lock & external sync support
- Professional 3G-SDI and HD-SDI interfaces
- Advanced image controls: AE, AWB, color correction, edge enhancement, noise reduction, OSD
- Remote control ready (RU-100)
Applications:
- Broadcast Studio
- Sports Video
- Medical Imaging
- Machine Vision
- Security Systems
- Event Production
- Traffic Monitoring
- Robotics Integration
| Color/Mono | Color |
| Resolution | 1920 x 1080 |
| Output Format | 1080p/1080i/720p |
| Sensor Model Name | IMX265 (Pregius) |
| Shutter Type | Global Shutter |
| Imager Size | 1/1.8 CMOS |
| Effective Pixels | 2064 x 1544 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Power Requirement | DC+9～+15V |
| Shutter Variable Range | 1/23.98s ～ 1/13600s |
| Interface | 3G SDI, HD-SDI |
| Lens Mount | C Mount |
| Weight (g) | 80g |
| Dimensions (W) x (H) x (D)mm | 29 x 29 x 55 |
