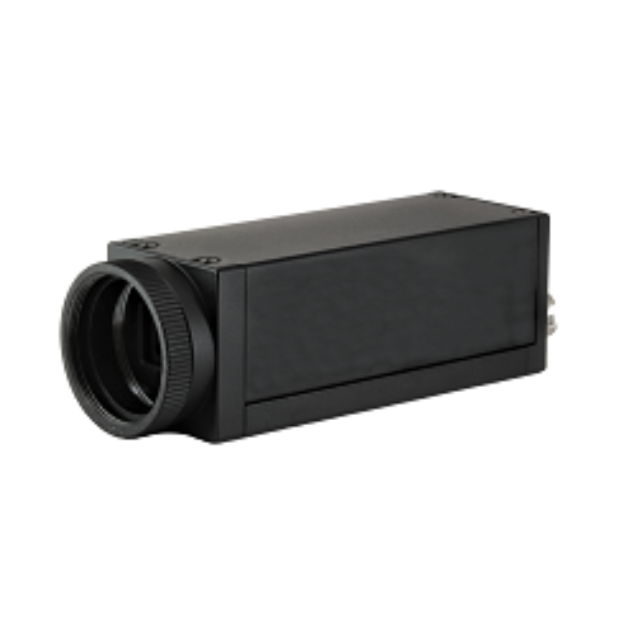

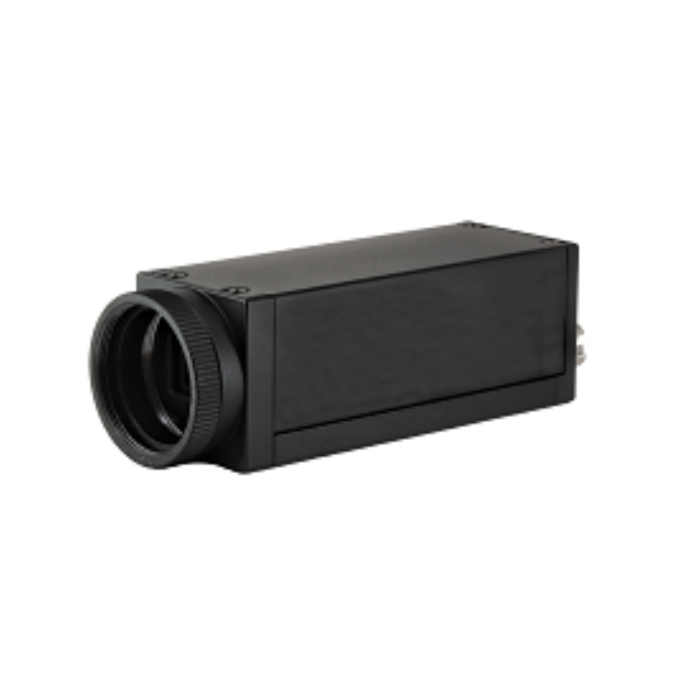

VCC-HD4 1/2.8 CMOS 60fps Rolling Shutter Full HD Clairvu™ Color Camera

The CIS VCC-HD4 is a next-generation Full HD camera system made in Japan and fully NDAA compliant, combining outstanding imaging performance with trusted compliance for mission-critical applications. Equipped with the proprietary Clairvu™ Image Signal Processor (ISP), the VCC-HD4 delivers ultra-clear, low-noise imagery and rapid signal processing for broadcast, inspection, and surveillance systems.

Utilizing a 1/2.8" rolling shutter CMOS sensor, this CIS VCC-HD4 camera captures 1080p resolution at 60fps, offering precise detail and vibrant color reproduction. Engineered to meet the demands of professional imaging, it supports Automatic Exposure (AE), Auto White Balance, Edge Enhancement, Noise Reduction, Color Correction, Gamma Adjustment, Genlock, and External Synchronization for seamless integration.

Built with precision manufacturing in Japan, the VCC-HD4 ensures long-term reliability, available in both cased and uncased models to fit diverse system designs. Its compact 29mm × 29mm × 77mm body is ideal for embedded or space-restricted installations in robotics, drones, monitoring, and scientific imaging. With 3G-SDI and HD-SDI outputs, RS-232C control, LTC timecode, On-Screen Display (OSD) via optional remote controller (RU-100), and compliance with BT.2020 and BT.2100 (HLG) color standards, the VCCHD4 represents elite performance in a small form factor.

Features:

• 1080p, 60fps Full HD
• 3G SDI I/F (HD SDI supported)
• CIS original ISP, "Clairvu™", for superb imaging quality.
• 29mm × 29mm × 77mm, compact in size
• Gen Lock function (3-values analogue signals or black burst)
• Controllable with RS-232C
• LTC time code
• OSD function with optional remote controller (RU-100)
• Complies with BT.709, BT.2100 (HLG) gamma curve
• Complies with BT.709 and BT.2020 for color gamut

Applications:

• ROV
• Drone and Vehicle
• Traffic Surveillance
• Medical Imaging
• Life Science Equipment & Systems
