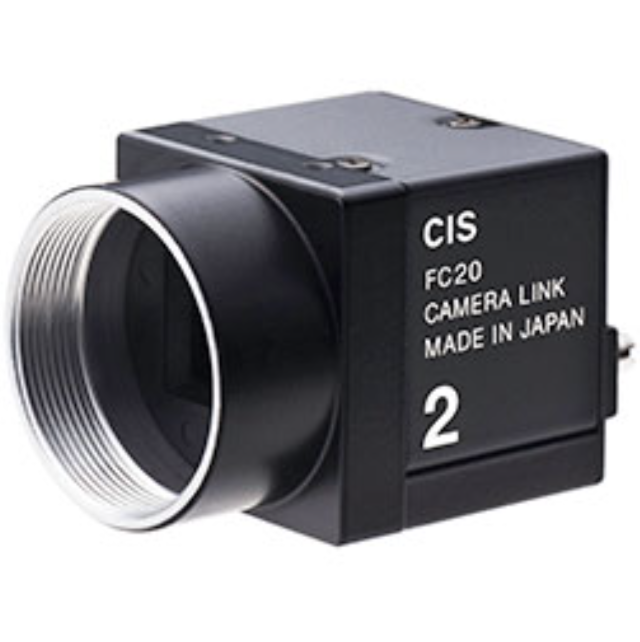

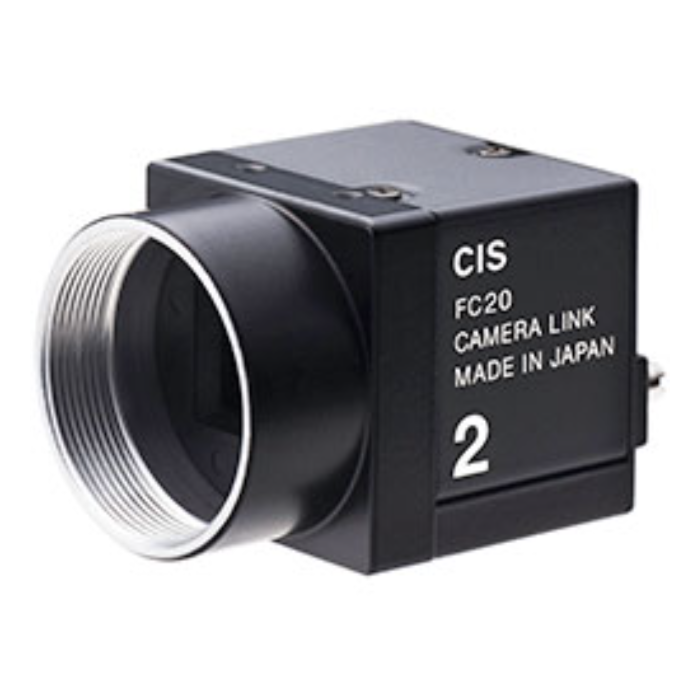

CIS VCC-GC20U11PCL 29mm High Speed Camera Link Monochrome Camera
The CIS VCC-GC20U11PCL is a high-performance Camera Link monochrome camera built in Japan and fully NDAA compliant, trusted for precision machine vision and industrial inspection applications. This compact 29mm cubic camera combines lightweight design (only 50g) with high-speed performance, capturing 2-megapixel resolution at 70 frames per second.
Engineered with the CMV2000 global shutter sensor, the VCCGC20U11PCL ensures exceptional image quality and motion accuracy even in high-speed production environments. Its low power consumption, C-Mount lens compatibility, and Camera Link interface (8-bit/10-bit output) make it ideal for OEM integration and embedded vision systems.
Built to exacting Japanese manufacturing standards, this CIS camera delivers reliability, long-term support, and compliance with U.S. federal NDAA guidelines, making it a trusted choice for defense, government, and industrial sectors requiring secure, approved imaging components.
Features:
- High-speed 70fps with 2M resolution
- Compact 29mm cubic design, lightweight at 50g
- Global shutter with CMV2000 sensor
- Camera Link interface with 8-bit/10-bit output
- Low power consumption and C-Mount lens compatibility
Applications:
- Semiconductor inspection
- LED wafer inspection
- Bottle and label inspection
- High-speed motion capture
- Embedded systems in space-constrained environments
| Color/Mono | Mono |
| Resolution | UXGA |
| fps @ Max Resolution | 70 fps |
| Output Format | 8bit/10bit |
| Sensor Model Name | CMV2000 |
| Shutter Type | Global Shutter |
| Imager Size | CMOS (Diagonal length: 12.755mm) |
| Effective Pixels | 2048 x 1088 |
| Pixel Size (μm) | 5.50 x 5.50 |
| Horizontal Frequency (kHz) | 77.66 |
| Pixel Clock (MHz) | 79.99 |
| Power Consumption | 1.7W Typ |
| Power Requirement | DC12V ±10% |
| Min Illumination | F1.4, 1.5 lx |
| Sensitivity | F5.6, 400 lx |
| Shutter Variable Range | OFF(1/70s)～1/50,000s |
| Interface | Camera Link |
| Lens Mount | C Mount |
| Weigth (g) | Approx 50g |
| Dimensions (W) x (H) x (D)mm | 29 x 29 x 29 |
