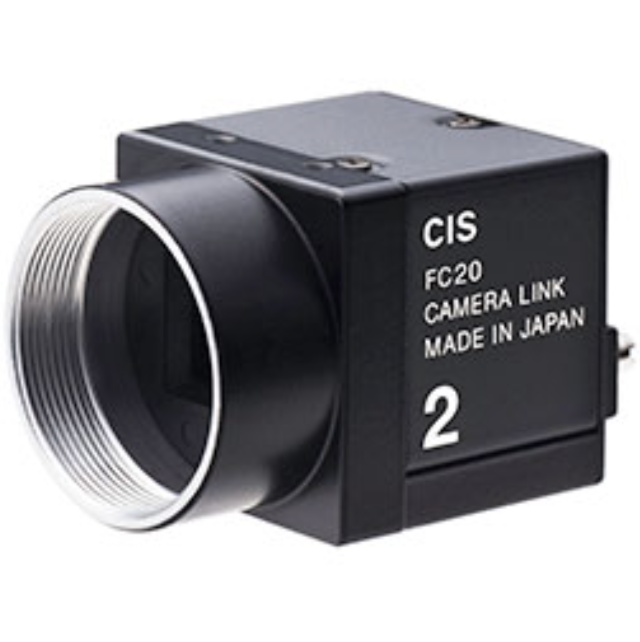

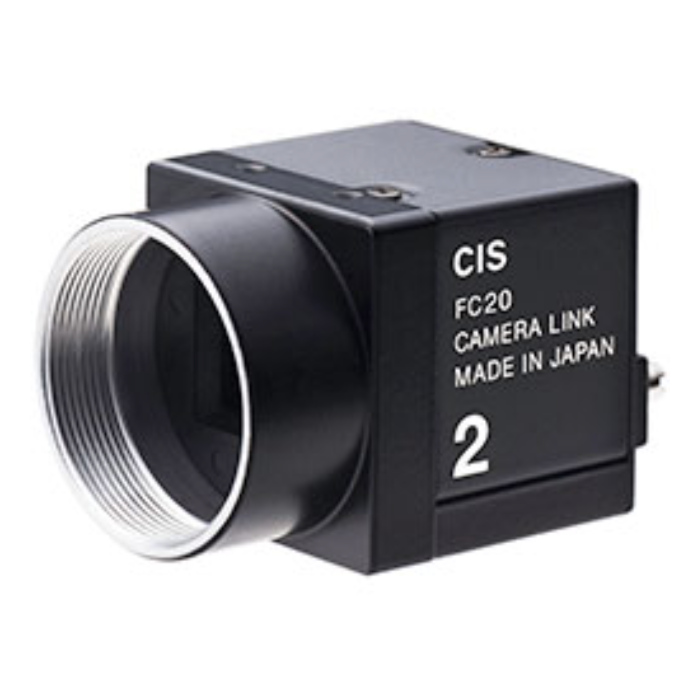

CIS VCC-GC20U11CL 29mm High Speed Camera Link Monochrome Camera
SKU
VCC-GC20U11CL
Quick Overview
High-speed 2MP industrial Camera Link camera from CIS, Made in Japan and NDAA compliant. The VCC-GC20U11CL delivers 70fps performance in a compact 29mm cube design for precision embedded imaging.
The CIS VCC-GC20U11CL is a high-speed 2MP industrial camera engineered for precision performance in compact systems. Delivering 70fps full-resolution imaging in a lightweight 29mm cubic housing (approx. 50g), this Made in Japan model ensures exceptional reliability and quality. Fully NDAA compliant, it’s ideal for government, defense, and enterprise-level projects requiring secure, approved imaging hardware.
Optimized for speed and size-sensitive Camera Link embedded systems, the VCCGC20U11CL stands out in bottle inspection, label checking, semiconductor alignment, LCD panel analysis, and LED wafer inspection applications.
Features:
- High speed
- 29mm cubic in size
- Low power consumption
- C lens mount
- External trigger
- 8bit / 10bit output
Applications:
- Inspection
- Imaging
| Color/Mono | Mono |
| Resolution | UXGA |
| fps @ Max Resolution | 70 fps |
| Output Format | 8bit/10bit |
| Sensor Model Name | CMV2000 |
| Shutter Type | Global Shutter |
| Imager Size | CMOS (Diagonal length: 12.755mm) |
| Effective Pixels | 2048 x 1088 |
| Pixel Size (μm) | 5.50 x 5.50 |
| Horizontal Frequency (kHz) | 77.66 |
| Pixel Clock (MHz) | 79.99 |
| Power Consumption | 1.7W Typ |
| Power Requirement | DC12V ±10% |
| Min Illumination | F1.4, 1.5 lx |
| Sensitivity | F5.6, 400 lx |
| Shutter Variable Range | OFF(1/70s)～1/50,000s |
| Interface | Camera Link |
| Lens Mount | C Mount |
| Weigth (g) | Approx 50g |
| Dimensions (W) x (H) x (D)mm | 29 x 29 x 29 |
