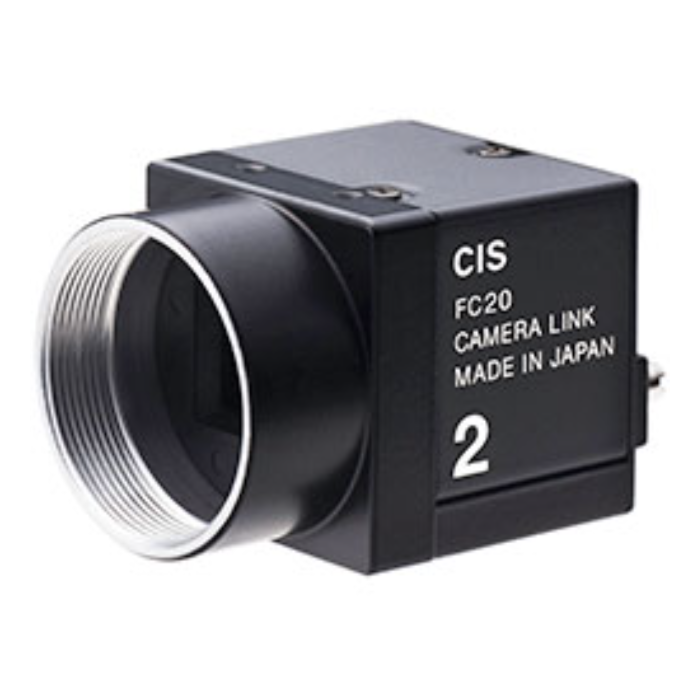

CIS VCC-FC20U19PCL 29mm High Speed Camera Link Color Camera
SKU
VCC-FC20U19PCL
Quick Overview
29mm cubic in size, light-weight and small high-speed, camera link interfaced camera, C20 CL series. 70fps high-speed with 2M resolution.
Experience precision Japanese engineering with the CIS VCC-FC20U19PCL, a 2-megapixel, 70fps ultra-compact Camera Link camera designed for space-constrained, high-speed embedded systems. Made in Japan and fully NDAA compliant, this industrial camera delivers exceptional reliability, image quality, and performance for demanding machine vision applications.
Features:
- High speed
- 29mm cubic in size
- Low power consumption
- C lens mount
- External trigger
- 8bit / 10bit output
Applications:
- Bottle inspection
- Label inspection
- Semiconductor
- LCD/LED wafer
| Color/Mono | Color RAW |
| Resolution | UXGA |
| fps @ Max Resolution | 70 fps |
| Output Format | 8bit/10bit |
| Sensor Model Name | CMV2000 |
| Shutter Type | Global Shutter |
| Imager Size | CMOS (Diagonal length: 12.755mm) |
| Effective Pixels | 2048 x 1088 |
| Pixel Size (μm) | 5.50 x 5.50 |
| Horizontal Frequency (kHz) | 77.66 |
| Pixel Clock (MHz) | 79.99 |
| Power Consumption | 1.7W Typ |
| Power Requirement | DC12V ±10% |
| Min Illumination | F1.4, 40 lx |
| Sensitivity | F4.0, 2000 lx |
| Shutter Variable Range | OFF(1/70s)～1/50,000s |
| Interface | Camera Link |
| Lens Mount | C Mount |
| Weigth (g) | Approx 50g |
| Dimensions (W) x (H) x (D)mm | 29 x 29 x 29 |
