CIS VCC-8U051C Rolling Shutter IMX778 1/2.8 CMOS USB3.2 Color C Mount Camera

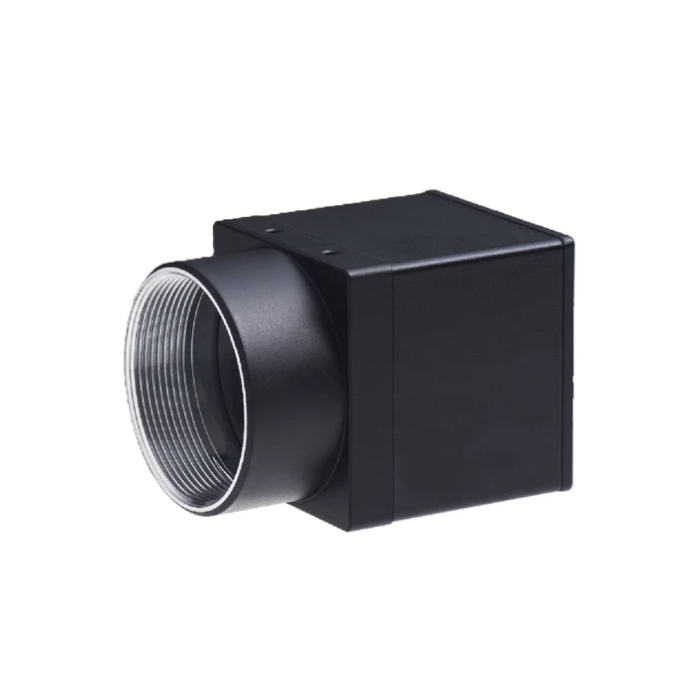

The CIS VCC-8U051C is a high-performance 8.2 MP color industrial camera designed for precision imaging and long-term reliability. Made in Japan and NDAA compliant, this compact 29 mm cubic camera integrates a 1/2.8-inch Sony IMX778 CMOS sensor with a rolling shutter, delivering exceptional 3840 x 2160 (4K UHD) resolution at up to 27 fps.
Built with CIS’s proprietary Clairvu™ ISP technology for advanced color correction and noise reduction, the VCC-8U051C ensures outstanding color accuracy, image sharpness, and consistency across varying lighting environments.
With a USB 3.2 Gen 1x1 interface, the VCC-8U051C offers up to 5Gbps bandwidth, supporting the USB3 Vision standard for seamless integration, plug-and-play device compatibility, and simplified system setup using a single USB cable for image transmission, control, and power. The C-mount lens design allows flexible optical configuration for a wide range of imaging applications.
Features:
- Compact 29 mm cubic in size
- Rolling shutter CMOS sensor
- Equipped with Clairvu™
- USB 5Gbps (VCC-8U051C) / 10Gbps (VCC-8U101C)
- USB3.2 Gen 1x1 (VCC-8U051C) / USB3.2 Gen 2x1(VCC-8U101C)
- Single USB cable for image transmission, camera control, and power supply
- C-mount
Applications:
- Industrial inspection
- Machine vision
- Quality control
- Robotics
- Research and development
- Medical imaging
- Security and surveillance
- Agricultural imaging
- Autonomous systems
- 3D scanning
| VCC-8U051C | |
| Color/Mono | Color |
| Resolution | 8.29M |
| fps @ Max Resolution | 27fps |
| Sensor Model | IMX778 |
| Shutter Type | Rolling Shutter |
| Imager Size | 1/2.8 CMOS |
| Effective Pixels | 3840(H) × 2160(V) |
| Pixel Size (μm) | 1.45 × 1.45 |
| Power Requirement | USB |
| Interface | USB3 Vision、USB 3.2 |
| Lens Mount | C Mount |
| Weight (g) | TBD |
| Dimensions (W × H × D) mm | 29 x 29 x 29 |
