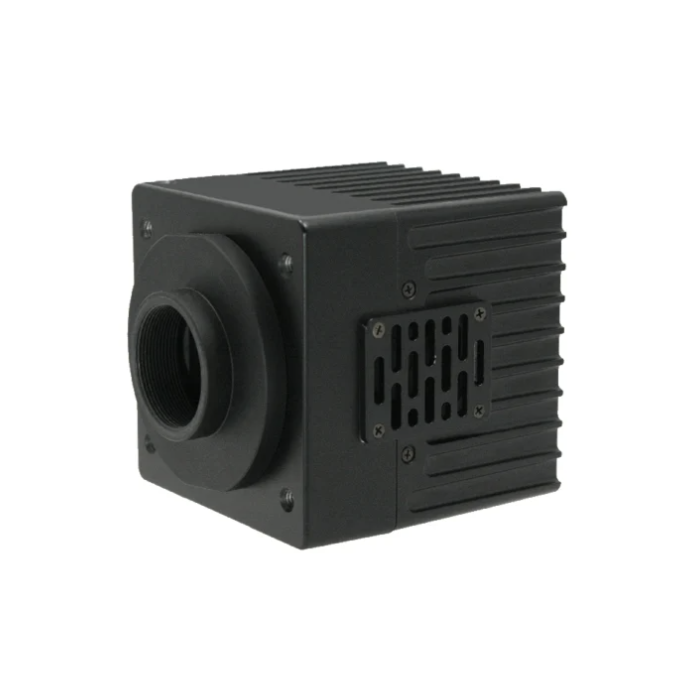

CIS VCC-5U101SW Global Shutter IMX992 1/1.4 CMOS USB3.2 SWIR C Mount Camera

The CIS VCC-5U101SW is a high-performance short-wave infrared (SWIR) camera engineered and Made in Japan for precision imaging across 400 nm to 1700 nm wavelengths. Built with a 5.2 MP Sony IMX992 global shutter sensor and NDAA compliance, this camera ensures exceptional clarity and reliability for sensitive industrial and defense-grade inspection systems.

Delivering 2560 x 2048 effective pixels on a 1/1.4" CMOS imager with 3.45 µm pixel size, it supports a maximum frame rate of 131 fps at full resolution. The USB 3.2 Gen 2x1 interface (5 Gbps / 10 Gbps) enables high-speed image transfer, camera control, and power—all via a single USB cable, eliminating the need for additional frame grabbers.

Designed for industrial quality inspection, machine vision, and research imaging, the CIS VCC-5U101SW combines compact size (65 mm cubic) with versatile features like external trigger, ROI control, and defect pixel correction for maximum performance in demanding environments.

Features:

• Detects wavelengths from 400 nm to 1700 nm
• 65 mm cubic in size
• Various functions: external trigger, ROI, defect pixel correction, and more
• USB 5 Gbps / 10 Gbps
• USB 3.2 Gen 2x1
• Single USB cable for image transmission, camera control, and power supply
• C-mount
• Export Control Notice: SWIR cameras are classified as controlled goods under export regulations (Export Control Order No. 10(4) / Ministerial Ordinance No. 9, Article 8, Item (10)). Please complete the necessary procedures when exporting outside Japan.

Applications:

• Semiconductor inspection
• Electronics board quality control
• Food and agricultural product testing
• Pharmaceutical and tablet inspection
• Identification and classification
• Process quality control
