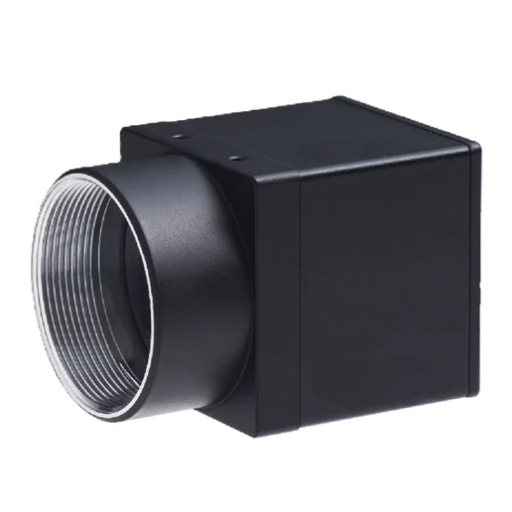

CIS VCC-5U101R Global Shutter GMAX3405 2/3 CMOS USB3.2 Color C Mount Camera
The CIS VCC-5U101R is a high-performance 5 megapixel color industrial camera designed for precision machine vision and factory automation applications. Made in Japan and NDAA compliant, the VCC-5U101R delivers outstanding image quality, high-speed performance, and long-term reliability trusted by global integrators and OEMs.
Built around a 2/3-inch global shutter CMOS sensor (GMAX3405), the VCC-5U101R captures crisp 5 MP images (2448 × 2048 pixels) with a 3.4 × 3.4 µm pixel size and achieves frame rates up to 187 fps at full resolution — ideal for high-speed inspection, robotic guidance, and industrial automation workflows.
Using a USB 3.2 Gen 2x1 interface with 5 Gbps / 10 Gbps data transfer, the CIS VCC-5U101R camera ensures fast, stable image transmission and power delivery via a single USB cable. This eliminates external frame grabbers, simplifies system design, and speeds up deployment.
Additional features such as ROI (Region of Interest), binning, and external trigger mode provide exceptional flexibility for demanding automated vision systems. Its durable 29 mm cubic design and C-mount configuration make integration simple across a wide range of equipment setups.
The CIS VCC5U101R — Made in Japan, NDAA compliant, and engineered for reliable, high-speed imaging performance.
Features:
- Compact 29 mm cubic in size
- Global shutter CMOS sensor
- USB 5 Gbps / 10 Gbps
- USB 3.2 Gen 2x1
- Single USB cable for image transmission, camera control, and power supply
- ROI and binning functionality
- External trigger mode support
- C-mount
Applications:
- Factory automation (FA)
- Machine vision
- Quality control
- High-speed imaging
- Object detection
- Barcode scanning
- Optical inspection
- Robotic vision
- Metrology
- Surveillance
| VCC-5U101R | |
| Color/Mono | Color |
| Resolution | 5M |
| fps @ Max Resolution | 187fps |
| Sensor Model | GMAX3405 |
| Shutter Type | Global Shutter |
| Imager Size | 2/3 CMOS |
| Effective Pixels | 2448(H) × 2048(V) |
| Pixel Size (μm) | 3.4 × 3.4 |
| Power Requirement | USB |
| Interface | USB3 Vision、USB 3.2 |
| Lens Mount | C Mount |
| Weight (g) | TBD |
| Dimensions (W × H × D) mm | 29 x 29 x 29 |
