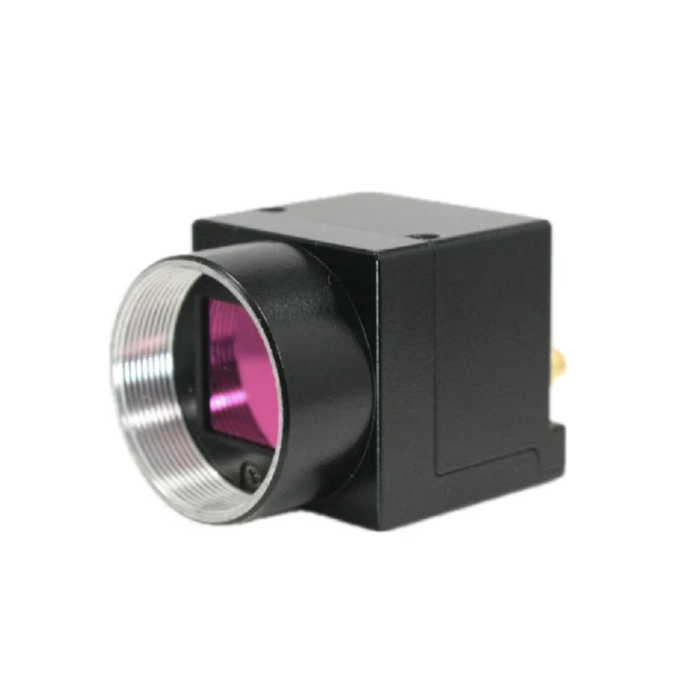

CIS VCC-5CXPHSR 2/3 CMOS 5 MP GMAX3405 CoaXPress CXP12 Global Shutter Color C Mount Camera
The CIS VCC-5CXPHSR is a Made in Japan, NDAA-compliant 5-megapixel industrial camera engineered for machine vision and factory automation systems requiring maximum speed and precision. Built for reliability and performance, this compact 29 mm cube camera utilizes a GMAX3405 global shutter CMOS sensor to deliver sharp, distortion-free imagery at up to 218 fps at full resolution (2448 × 2048).
Featuring a CoaXPress CXP-12 single-lane interface, the VCC-5CXPHSR ensures ultra-fast data transfer and simplified connectivity. It supports ROI, binning, and external trigger modes to optimize capture performance for specific system requirements. GenICam compatibility provides hassle-free integration into existing vision platforms, while PoCXP (Power over CoaXPress) reduces cable demands and installation costs.
Designed for high-speed performance and industrial-grade endurance, the CIS VCC5CXPHSR camera is ideal for OEM and integrator applications demanding superior image quality, low latency, and full NDAA compliance.
Features:
- Compact 29 mm cube size body
- Global shutter CMOS sensor
- CoaXPress CXP-12 single lane interface
- ROI and binning functionality
- External trigger mode support
- GenICam compatible
- C-mount
Applications:
- Factory Automation (FA)
- Machine Vision
- Quality Control
- Surface Inspection
- Automated Testing
- Robotics
- Positioning Systems
- Barcode Reading
- Object Detection
- Medical Imaging
| VCC-5CXPHSR | |
| Color/Mono | Color |
| Resolution | 5M |
| fps @ Max Resolution | 218p |
| Sensor Model Name | GMAX3405 |
| Shutter Type | Global Shutter |
| Imager Size | 2/3 CMOS |
| Effective Pixels | 2448 x 2048 |
| Pixel Size (μm) | 3.4 x 3.4 |
| Power Requirement | PoCXP |
| Interface | CXP12 |
| Lens Mount | C Mount |
| Weight (g) | TBD |
| Dimensions (W) x (H) x (D)mm | 29 x 29 x 29 |
