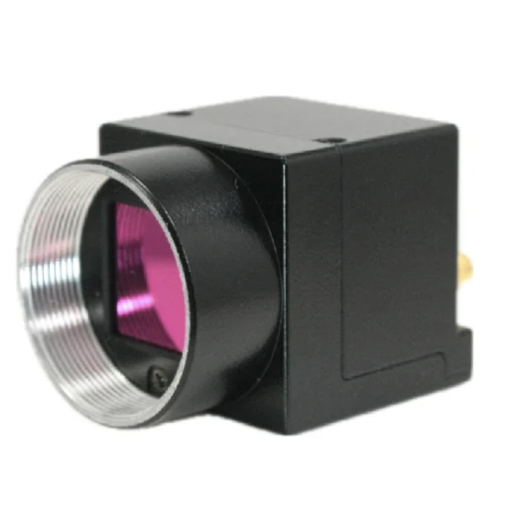

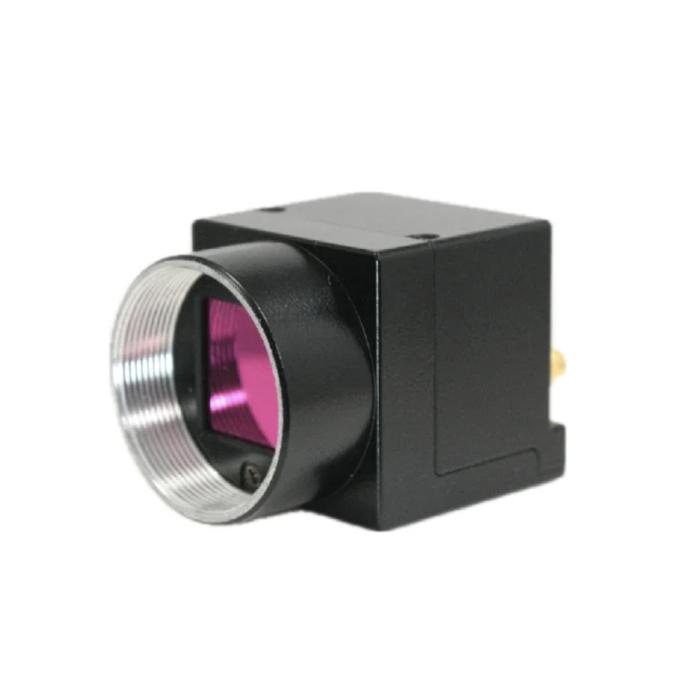

CIS VCC-5CXPHSM 2/3 CMOS 5 MP GMAX3405 CoaXPress CXP12 Global Shutter Monochrome C Mount Camera

The CIS VCC-5CXPHSM is a high-performance 5 MP industrial CoaXPress camera designed and manufactured in Japan, delivering exceptional precision and reliability for advanced machine vision systems. NDAA compliant and engineered for demanding automation environments, this compact 29 mm square camera combines speed, accuracy, and compliance trusted in aerospace, defense, and critical infrastructure applications.

Powered by the 2/3-inch GMAX3405 global shutter CMOS sensor, the VCC-5CXPHSM captures crisp, distortion-free images at an outstanding 2448(H) × 2048(V) resolution. With a CoaXPress CXP-12 single-lane interface, it achieves an ultra-fast 218 fps at full resolution, providing the throughput required for high-speed inspection, process monitoring, and robotics systems.

This CIS CoaXPress camera supports ROI (Region of Interest) and binning features to optimize sensitivity and data bandwidth, while external trigger mode ensures precise synchronization with industrial production lines. Fully GenICam compatible, the VCC5CXPHSM integrates easily into existing vision architectures. A standard C-mount design offers flexible lens options for diverse imaging conditions.

Features:

• Compact 29 mm cube size body
• Global shutter CMOS sensor
• CoaXPress CXP-12 single lane interface
• ROI and binning functionality
• External trigger mode support
• GenICam compatible
• C-mount

Applications:

• Factory Automation
• Machine Vision
• Quality Control
• Robotics
• Process Monitoring
• Assembly Line Inspection
• Barcode Reading
• Surface Inspection
• Automated Testing
