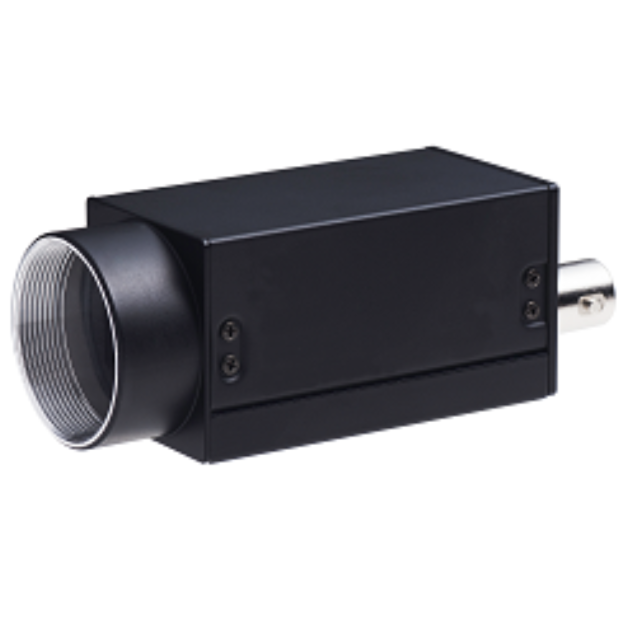

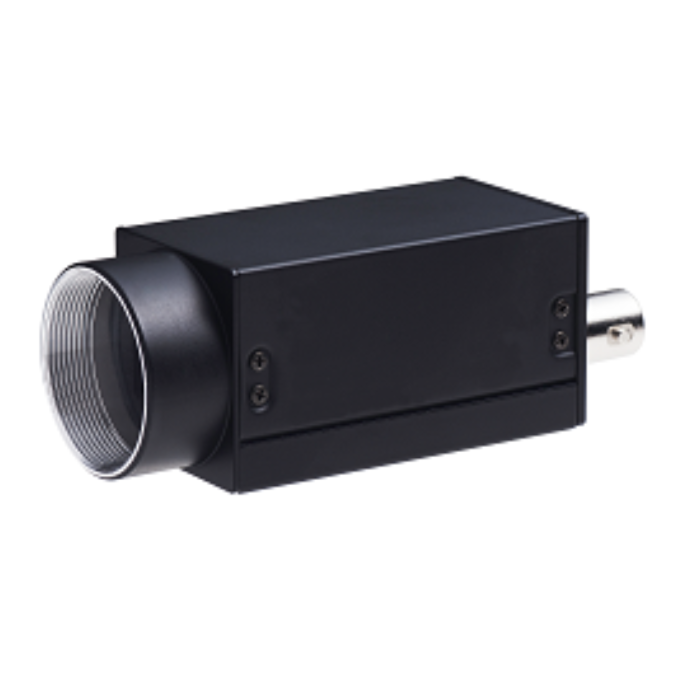

CIS VCC-5CXP7R 1/1.8 CMOS 5MP CoaXPress Color Camera
The CIS VCC-5CXP7R high-performance machine vision camera delivers exceptional 5-megapixel resolution and CoaXPress connectivity for advanced inspection and imaging systems. Made in Japan and NDAA compliant, this compact industrial camera is trusted for precision, reliability, and full U.S. deployment compatibility.
Engineered for demanding factory automation (FA) and machine vision inspection systems, the VCC5CXP7R camera features a global shutter CMOS sensor and supports CoaXPress CXP-3 / CXP-6 transmission over a single lane with cable lengths up to approximately 30 meters. Its durable 29mm × 29mm × 55mm housing makes it ideal where space is limited.
Advanced imaging control functions include external trigger shutter modes, ROI (Region of Interest), defective pixel correction, shading correction, gain and gamma adjustment, and 2x2 binning support (monochrome model only). GenICam compliance ensures seamless integration with existing vision software platforms.
Features:
- Global shutter, CMOS sensor
- CoaXPress CXP-3, CXP-6
- 1 lane
- Approx. 30m of Max. cable length
- ROI
- Exposure and Gain settings
- External trigger mode (Fixed trigger shutter mode/Pulse width trigger shutter mode)
- GenICam complied
- C mount
Applications:
- Factory automation and machine vision inspection systems
- Electronic component and PCB inspection
- Semiconductor wafer and substrate analysis
- Robotics and automated optical inspection (AOI)
- High-speed precision measurement and alignment
- Packaging and label verification systems
- Surface or defect detection in industrial manufacturing
- Quality control image capture in production lines
| Color/Mono | Color |
| Resolution | 5M（2472×2064） |
| fps@Max. Resolution | 50fps(CXP3), 101fps(CXP6) |
| Output Format | Bayer 8/10/12 |
| Sensor Model Name | Pregius S IMX547 |
| Shutter Type | Global Shutter |
| Image Sensor | 1/1.8 CMOS(GS) |
| Effective Pixels | 2472×2064 |
| Unit Cell Size (μm) | 2.74×2.74 |
| Pixel Clock (MHz) | 74.25MHz |
| Power Consumption | 3.9 W (CXP-6) |
| Power Requirement | PoCXP |
| Min. Illumination | F1.4 3.6 lx (Shutter 1/30(s), Gain 18dB) |
| Sensitivity | F11 2000 lx (Shutter 1/30(s), Gain 0dB) |
| Interface | CXP-3/6 |
| Lens Mount | C Mount |
| Weight (g) | 70g |
| Dimensions (W) x (H) x (D)mm | 29×29×55 |
