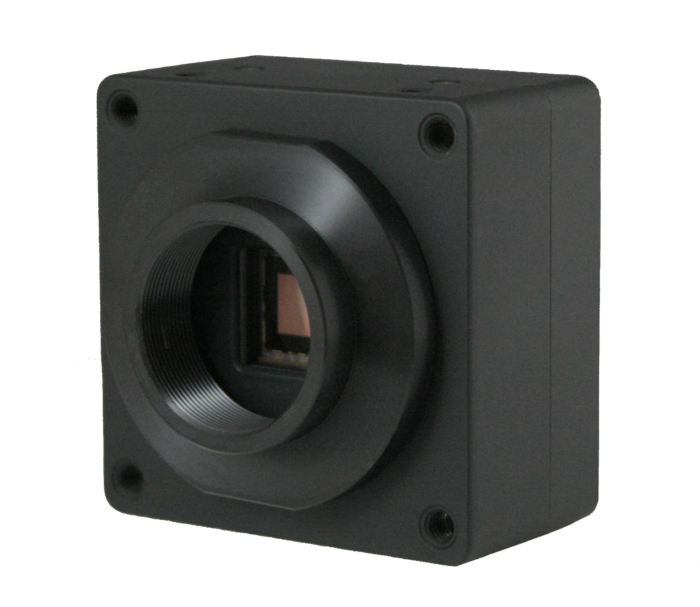

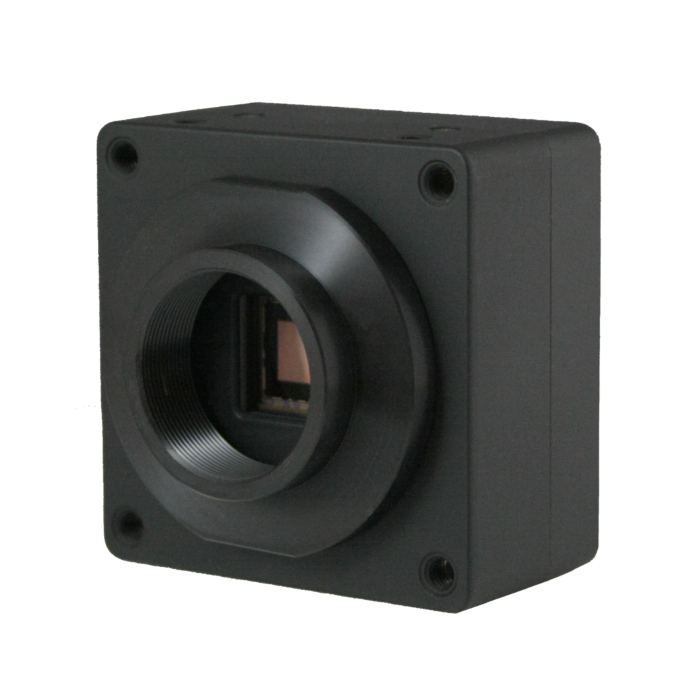

CIS VCC-5CXP4R CoaXPress 5MP Color Camera with 2/3" Sony Pregius IMX250 CMOS, CXP-3/CXP-6 Interface, 163.4fps, GenICam Support, C-Mount

The CIS VCC-5CXP4R is a Made in Japan, NDAA-compliant 5-megapixel industrial camera engineered for high-precision machine vision and automation. Featuring the Sony Pregius IMX250 CMOS sensor with a global shutter, it captures sharp, distortion-free images even at high speeds. Supporting CoaXPress Version 1.1.1 (CXP-3 or CXP-6 selectable), this camera achieves exceptional performance with frame rates up to 163.4 fps at full 5MP resolution.

Built for reliability and compact efficiency, the VCC5CXP4R measures just 55×55×30 mm—perfect for space-constrained inspection systems. Its advanced image controls, including ROI adjustment, gain and gamma tuning, and H&V flip, provide flexible configuration across demanding industrial imaging tasks.

Features:

• 5MP (2464×2056) CMOS sensor with global shutter
• CoaXPress CXP-3 and CXP-6 interface (1 or 2 lanes)
• High-speed frame rate: up to 163.4 fps
• ROI, exposure, and gain control settings
• External trigger modes (fixed or pulse-width)
• GenICam compliant for easy integration
• Selectable PoCXP or external power supply
• C-mount lens compatibility
• Compact 55×55×30 mm housing

Applications:

• Factory automation
• Surface inspection
• PCB analysis
• Robotics vision
• Packaging control
• Optical sorting
• Industrial inspection
