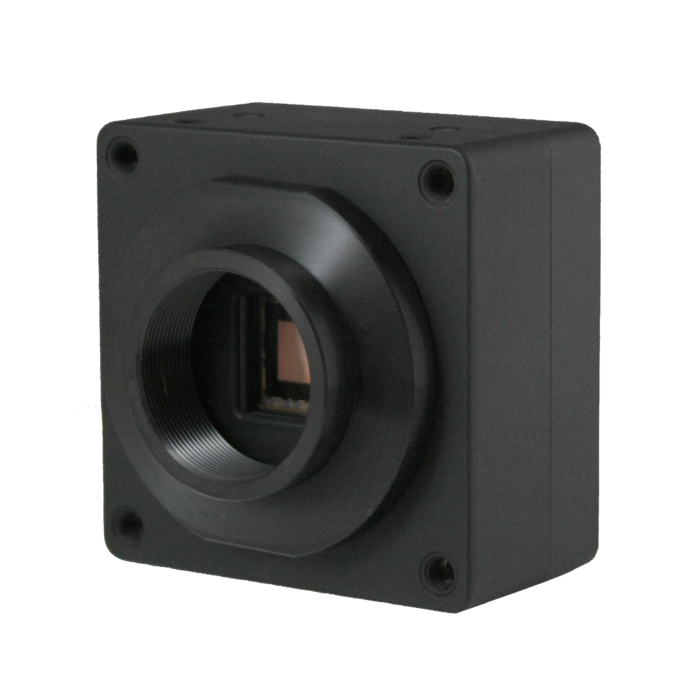

CIS VCC-5CXP4M 2/3 CMOS 5MP CoaXPress Monochrome Camera

The CIS VCC-5CXP4M is a high-performance 5 Megapixel CoaXPress industrial camera engineered for precision machine vision and factory automation applications. Made in Japan and NDAA compliant, this compact camera (55mm x 55mm x 30mm) offers exceptional reliability for OEM integrators and security-conscious imaging systems.

Designed to comply with CoaXPress Version 1.1.1, the VCC-5CXP4M delivers high-speed data transfer via CoaXPress CXP-3/CXP-6 (1 lane) supporting cable lengths up to approximately 30 meters. It utilizes a global shutter CMOS sensor for blur-free capture of fast-moving subjects. Flexible imaging control includes region of interest (ROI), exposure and gain adjustment, external trigger modes, and built-in defective pixel correction, gamma, and H&V flip functions for optimized performance.

With GenICam compliance and a C-Mount design, the CIS VCC-5CXP4M integrates seamlessly into a wide range of FA (factory automation) and machine vision inspection systems, inspection robots, and image processing setups that require NDAA-compliant, Japan-manufactured cameras.

Features:

• Global shutter, CMOS sensor
• CoaXPress CXP-3, CXP-6
• 1 lane
• Approx. 30m of Max. cable length
• ROI
• Exposure and Gain settings
• External trigger mode (Fixed trigger shutter mode/Pulse width trigger shutter mode)
• GenICam complied
• C mount

Applications:

• Factory Automation
• Quality Inspection
• Robotics Vision
• Industrial Imaging
• Optical Measurement
• PCB Inspection
• Surface Analysis
• Packaging Control
• Assembly Verification
