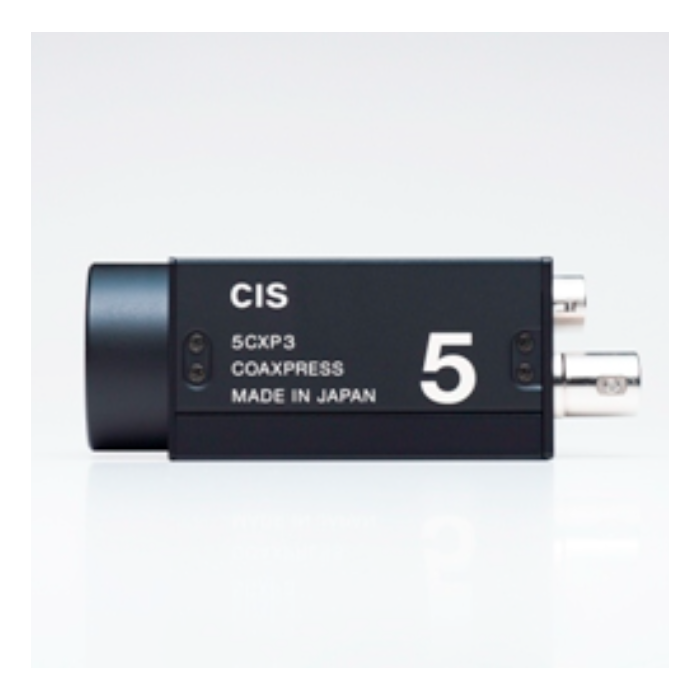

CIS VCC-5CXP3RNON 1” CMOS 5.3 MP Global Shutter CoaXPress Color Board Camera
The CIS VCC-5CXP3RNON is a Made in Japan, NDAA-compliant 5.3 MP CoaXPress camera engineered for precision machine vision and industrial automation applications. Built with a global shutter CMOS sensor and CXP-6 interface, it delivers clear, distortion-free images at up to 85.1 fps, ideal for high-speed inspection, robotic guidance, and industrial quality control tasks.
Featuring a 1920x2048 (5.3 megapixel) resolution and 1" Python5000 CMOS sensor, this compact camera ensures exceptional image fidelity under fast capture conditions. Its 29mm x 29mm x 55mm form factor and lightweight 75g build allow seamless integration into tight system designs.
Engineered for robust performance, the VCC-5CXP3RNON supports Power over CoaXPress (PoCXP) for power and data transmission over a single cable, enabling flexible installation up to 100m from the host system. The camera’s global shutter, defective pixel correction, ROI/sub-sampling, and shading correction features make it ideal for demanding vision systems where image accuracy and reliability are critical.
Features:
- Resolution: 5.3 MP (2592x2048)
- Shutter: Global Shutter
- Interface: CoaXPress (CXP-1 to CXP-6)
- Frame Rate: Up to 85.1 fps (CXP-6)
- Power: PoCXP (Power over CoaXPress)
- Pixel Size: 4.8 µm x 4.8 µm
- Sensor: 1” CMOS (Python5000)
- Output: BayerRG8/10
- Lens Mount: C-mount
- Illumination: Min 65 lx (F1.4), Sensitivity 2000 lx (F2.8)
- Dimensions: 29mm x 29mm x 55mm
- Weight: 75g
Applications:
- Factory Automation
- Machine Vision
- Industrial Inspection
- Robotics
- Automation Systems
- Automated Quality Control
- Optical Measurement
| Color/Mono | Color |
| Resolution | 5.3M (2592×2048） |
| fps @ Max Resolution | 14(CXP1), 28(CXP2), 42(CXP3), 85.1(CXP6) |
| Output Format | BayerRG8/10 |
| Sensor Model Name | Python5000 |
| Shutter Type | Global Shutter |
| Imager Size | 1" CMOS (GS) |
| Effective Pixels | 2592 × 2048 |
| Pixel Size (μm) | 4.8 × 4.8 |
| Pixel Clock (MHz) | 72M |
| Power Consumption | 3.6 W (CXP-6) |
| Power Requirement | PoCXP |
| Min. Illumination | F1.4 65 lx (Shutter 1/300(s), Gain 18dB) |
| Sensitivity | F2.8 2000 lx (Shutter 1/300(s), Gain 0dB) |
| Shutter Variable Range | OFF～1/10000 |
| Interface | CXP-1/2/3/5/6 |
| Lens Mount | C Mount |
| Weight (g) | 75 |
| Dimensions (W) x (H) x (D)mm | 29 × 29 × 55mm |
