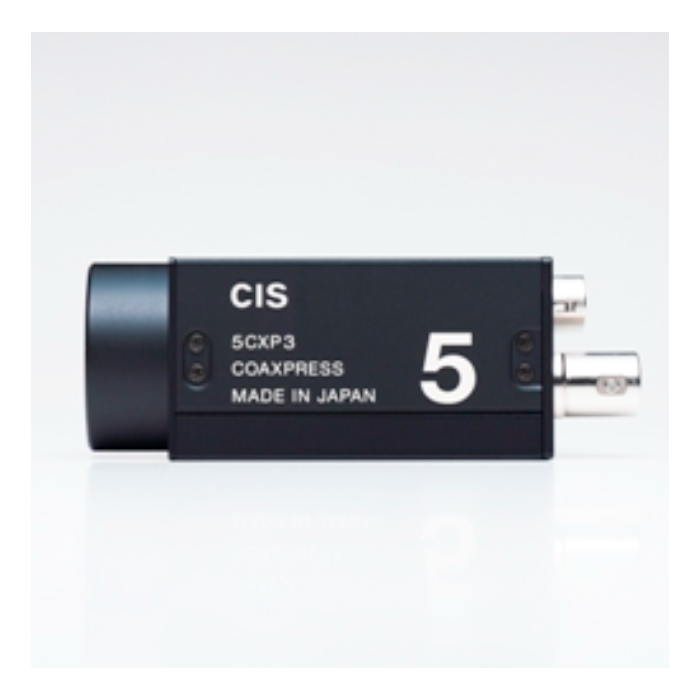

CIS VCC-5CXP3R 1” CMOS 5.3M Color Camera
The CIS VCC-5CXP3R is a Made in Japan, NDAA compliant industrial camera engineered for precision and performance in demanding machine vision and factory automation environments. Designed for high-speed inspection, measurement, and robotic vision systems, this camera ensures exceptional accuracy and reliability in every frame.
Built around a 1" CMOS global shutter sensor, the VCC-5CXP3R delivers 5.3 megapixel resolution with frame rates up to 85.1 fps (CXP6), capturing sharp, distortion-free images even during fast-moving processes. Its CoaXPress interface provides high-speed, long-distance data transmission, ideal for large-scale or multi-camera setups.
Manufactured in Japan to rigorous quality standards, the VCC-5CXP3R offers superior build quality and long-term reliability suited for harsh industrial environments. Its rugged and compact housing, combined with versatile image control features such as ROI, sub-sampling, and sequence control, provides integrators maximum flexibility in system design.
Whether optimizing high-speed production lines, performing precision inspections, or automating complex industrial tasks, the CIS VCC-5CXP3R combines Japanese engineering, NDAA compliance, and advanced CoaXPress performance in one powerful machine vision solution.
Features:
- High resolution for detailed image capture
- CoaXPress interface for long-distance data transmission
- Global shutter for accurate image acquisition
- Compact and rugged design for industrial environments
- Versatile ROI, sub-sampling, and sequence control functions
Applications:
- Electronics inspection
- Semiconductor manufacturing
- Automotive assembly
- Food and beverage quality control
- Pharmaceutical packaging
- Textile inspection
- Metalworking
- Logistics and material handling
| Color/Mono | Color |
| Resolution | 5.3M（2592×2048） |
| Frame Rate | 14(CXP1), 28(CXP2), 42(CXP3), 85.1(CXP6) |
| Output Format | BayerRG8/10 |
| Sensor Model Name | Python5000 |
| Shutter Type | Global Shutter |
| Image Sensor | 1” CMOS(GS) |
| Effective Pixels | 2592×2048 |
| Unit Cell Size (μm) | 4.8×4.8 |
| Pixel Clock (MHz) | 72M |
| Power Consumption | 3.6 W (CXP-6) |
| Power Requirement | PoCXP |
| Min. Illumination | F1.4 65 lx (Shutter 1/300(s), Gain 18dB) |
| Sensitivity | F2.8 2000 lx (Shutter 1/300(s), Gain 0dB) |
| Shutter Variable Range | OFF～1/10000 |
| Signal I/F | CXP-1/2/3/5/6 |
| Lens Mount | C-Mount |
| Weight (g) | 75 |
| Dimensions (W) x (H) x (D)mm | 29×29×55 |
