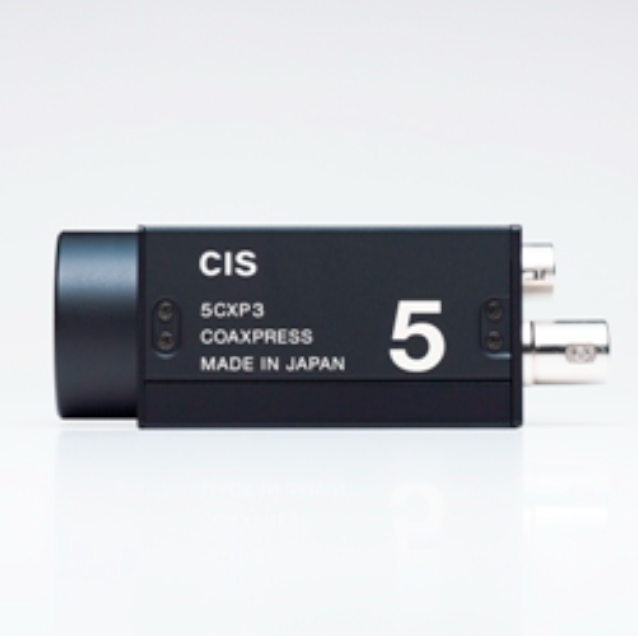

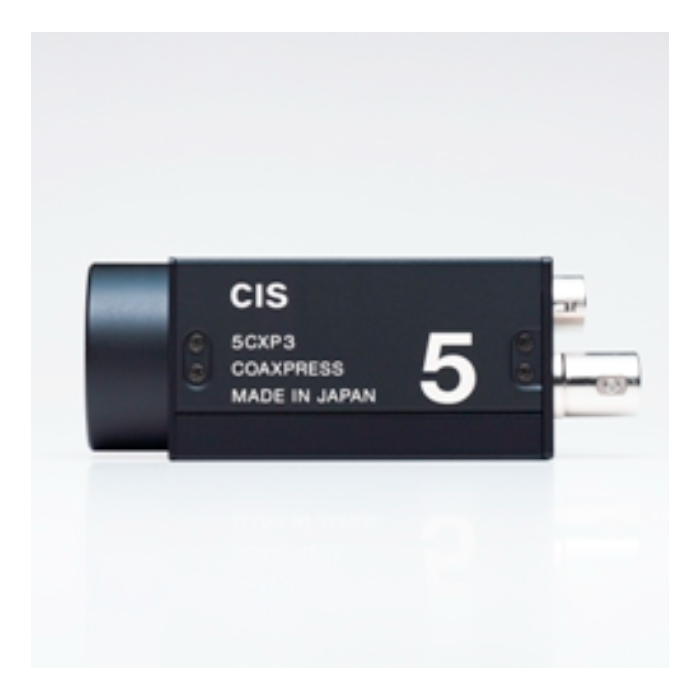

CIS VCC-5CXP3NIR 1” CMOS 5.3M Color Camera
The CIS VCC-5CXP3NIR delivers precision near-infrared imaging for industrial machine vision applications requiring enhanced material penetration and low-light performance. This Made in Japan, NDAA compliant camera combines a 1" CMOS global shutter sensor with CoaXPress interface for high-speed, long-distance data transmission in demanding factory automation environments.
With 5.3 megapixel resolution (2592x2048) and frame rates up to 85.1 fps (CXP-6), the VCC-5CXP3NIR captures sharp, distortion-free NIR images optimized for subsurface inspection, material analysis, and night vision systems. Its near-infrared sensitivity excels in detecting defects invisible to standard RGB sensors, making it ideal for quality control in challenging lighting conditions.
The CIS VCC5CXP3NIR features a compact 29x29x55mm rugged housing built to Japanese manufacturing standards, ensuring reliability in harsh industrial settings. Advanced controls including ROI, sub-sampling, sequence trigger, and defective pixel correction provide system integrators complete flexibility for custom machine vision deployments.
Features:
- High resolution
- 29x29x50mm in size
- CMOS sensor
- CoaXPress interface (CXP 6 x 1 lane)
- Video output via BNC connector
- Long distance data transmision (to be complied to CXP Ver 1.0)
- High resolution and high speed frame rate
- 5.3M pixels resolution with R:85fps at CXP6 x 1 lane
- Must have features ready for FA applications
- Global trigger shutter operation
- ROI function, Sub-sampling, Defective pixel correction, Sequence control and more
Applications:
- PCB inspection and subsurface defect detection
- Semiconductor wafer analysis (NIR penetration)
- Plastic/material composition verification
- Food/pharmaceutical foreign object detection
- Textile fiber quality assessment
- Night vision and surveillance systems
- Industrial robotics with NIR guidance
| Color/Mono | NIR |
| Resolution | 5.3M（2592×2048） |
| Frame Rate | 14(CXP1), 28(CXP2), 42(CXP3), 85.1(CXP6) |
| Output Format | Mono 8/10 |
| Sensor Model Name | Python5000 |
| Shutter Type | Global Shutter |
| Image Sensor | 1” CMOS(GS) |
| Effective Pixels | 2592×2048 |
| Unit Cell Size (μm) | 4.8×4.8 |
| Pixel Clock (MHz) | 72M |
| Power Consumption | 3.6 W (CXP-6) |
| Power Requirement | PoCXP |
| Min. Illumination | F1.4 65 lx (Shutter 1/300(s), Gain 18dB) |
| Sensitivity | F2.8 2000 lx (Shutter 1/300(s), Gain 0dB) |
| Shutter Variable Range | OFF～1/10000 |
| Signal I/F | CXP-1/2/3/5/6 |
| Lens Mount | C-Mount |
| Weight (g) | 75 |
| Dimensions (W) x (H) x (D)mm | 29×29×55 |
