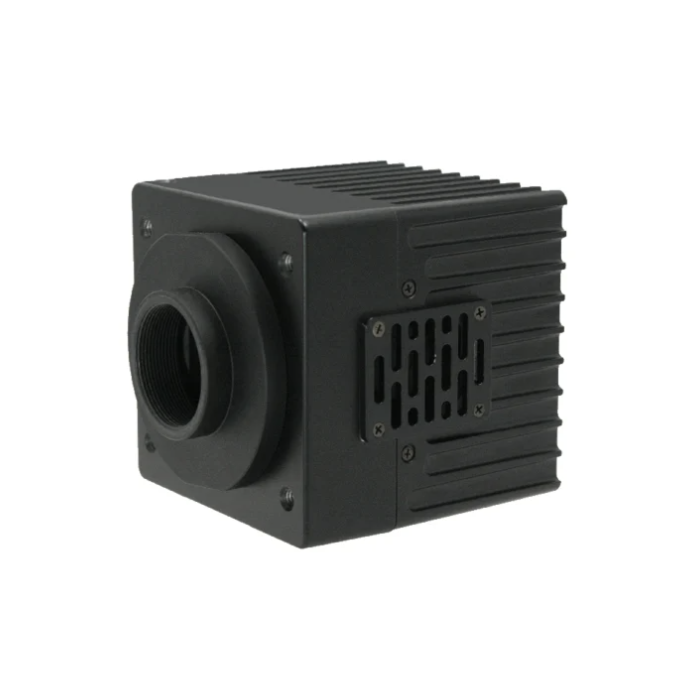

CIS VCC-5CXP1SW 1/1.4-inch 5.2 MP Sony IMX992 CoaXPress CXP12 x 1 Global Shutter SWIR C Mount Camera

The CIS VCC-5CXP1SW is a Made in Japan, NDAA compliant SWIR camera engineered for high-precision industrial inspection. This 5.2 MP (megapixel) Short Wave Infrared camera captures wavelengths from 400 nm to 1700 nm, enabling superior detection of material differences, defects, and moisture content beyond the capabilities of standard visible-light cameras.

Featuring a Sony IMX992 1/1.4-inch global shutter SWIR sensor, the CIS VCC-5CXP1SW delivers exceptional clarity and fast, distortion-free imaging. With a CoaXPress (CXP-12 x1) interface and PoCXP (Power over CoaXPress) compatibility, this camera offers high transfer speeds and streamlined power management for system integration.

Built for demanding environments, the compact 65 × 65 × 65 mm housing supports 131 fps at full resolution, along with advanced image functions such as external triggering, region of interest (ROI) processing, and defect pixel correction. Its rugged design and precision engineering make the VCC-5CXP1SW ideal for semiconductor inspection, food quality analysis, and other high-performance applications requiring reliable SWIR imaging.

Features:

• Detects wavelengths from 400 nm to 1700 nm
• CoaXPress CXP-12 x 1 lane interface
• PoCXP compatible
• High frame rate
• Various functions: external trigger, ROI, defect pixel correction, and more
• SWIR cameras are subject to export control regulations (Export Control Order No. 10(4)/Ministerial Ordinance No. 9, Article 8, Item (10)). Please ensure the necessary procedures are followed when exporting outside Japan.

Applications:

• Semiconductor Inspection
• Electronic Board Testing
• Food Quality Analysis
• Agricultural Product Testing
• Pharmaceutical Inspection
• Tablet Inspection
• Material Identification
• Contaminant Detection
• Process Quality Control
