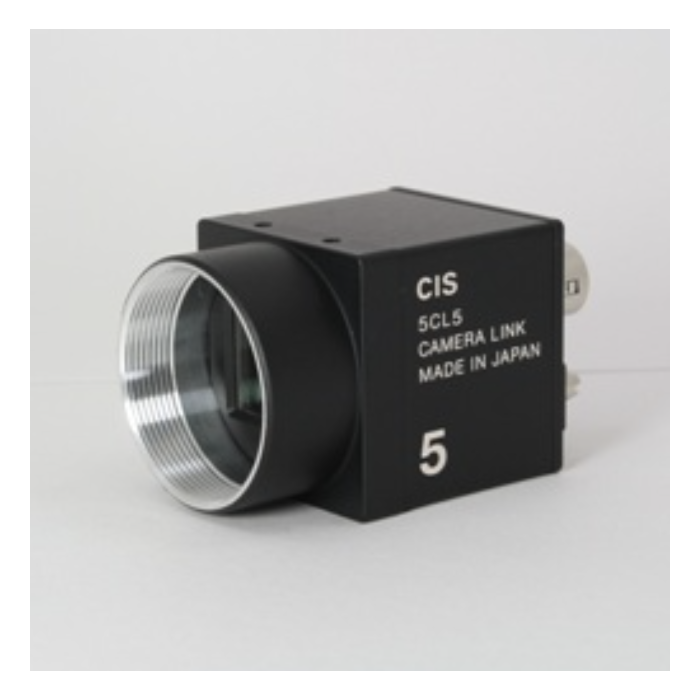

CIS VCC-5CL5R 2/3 CMOS Camera Link High Speed Monochrome Camera
CIS VCC-5CL5R – Compact 5MP industrial camera module engineered for precision imaging and high-speed performance. Manufactured in Japan with meticulous quality control and fully NDAA compliant, this camera delivers reliability and superior optics for government, defense, and industrial applications.
The VCC-5CL5R features a Camera Link interface, 5-megapixel (2464 x 2056) CMOS sensor, and global shutter for blur-free capture in motion-critical environments. It achieves 35.8 fps at full resolution with a 3-TAP output, providing exceptional frame rates for industrial inspection, embedded vision, and scientific imaging. Despite its compact 29mm cube design, the VCC-5CL5R ensures robust performance and power efficiency at only 1.8W consumption.
Features:
- High Speed (163.4fps with HS models)
- 5M, 2/3 type, global shutter CMOS
- Fixed trigger shutter mode, Pulse width shutter mode
Applications:
- Machine Vision
- Defense Imaging
- R&D
| Color/Mono | Color |
| Resolution | 5M |
| fps @ Max Resolution | 35.84fps (3 TAP)、29.09fps (2 TAP)、14.56fps (1 Tap) |
| Output Format | 8bit/10bit/12bit |
| Sensor Model Name | - |
| Shutter Type | - |
| Imager Size | 2/3 CMOS |
| Effective Pixels | 2464 x 2056 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Pixel Clock (MHz) | 74.25 |
| Power Consumption | 1.8W |
| Min Illumination | F1.4 0.1 lx |
| Sensitivity | F8 400 lx |
| Interface | Camera Link |
| Lens Mount | C Mount |
| Weigth (g) | 45g |
| Dimensions (W) x (H) x (D)mm | 29 x 29 x 29 |
