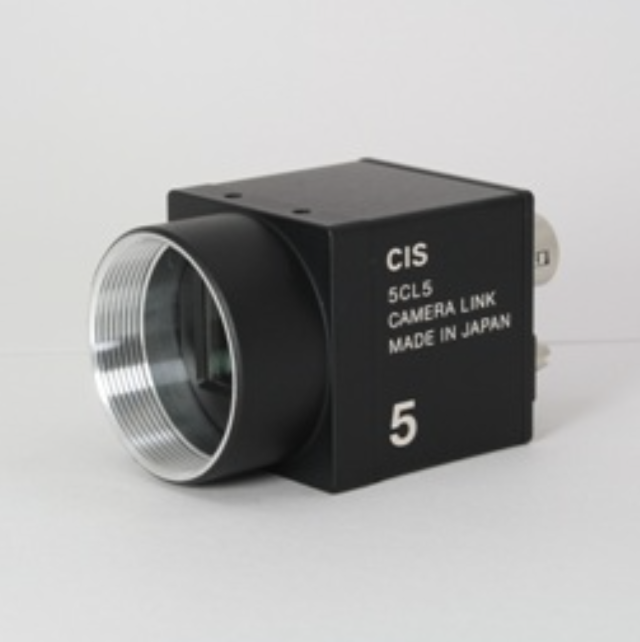

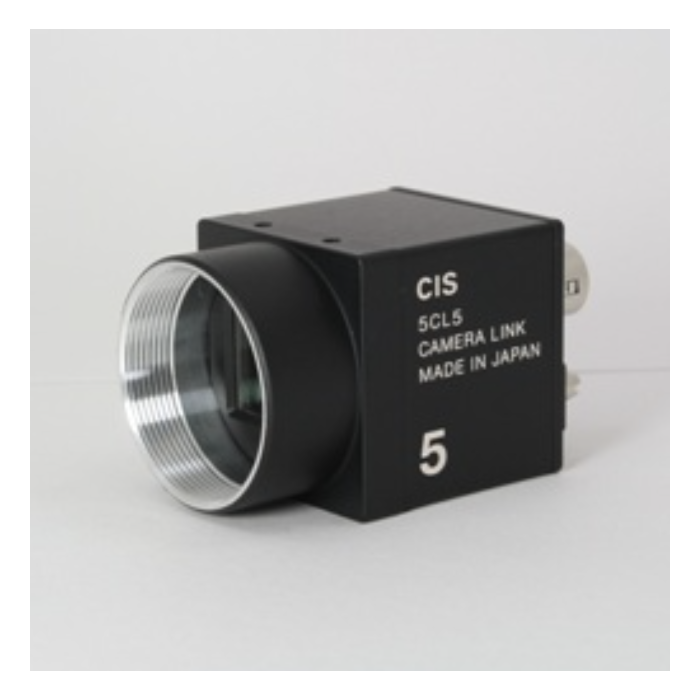

CIS VCC-5CL5M Camera Link 5MP Mono Camera with 2/3" Sony Pregius IMX264 CMOS, Global Shutter, 35.85fps
SKU
VCC-5CL5M
Quick Overview
The CIS VCC-5CL5M is a 5MP Camera Link industrial camera made in Japan and NDAA compliant, delivering high-speed, precision imaging for machine vision and automation applications.
The CIS VCC-5CL5M industrial camera delivers exceptional 5MP performance in a compact 29mm cube form. Built with a Sony IMX264 Pregius global shutter CMOS sensor, this Made in Japan NDAA-compliant camera provides the reliability, precision, and speed demanded by today’s machine vision and automation systems.
Designed for seamless Camera Link integration, the VCC5CL5M achieves up to 35.85 fps (3 TAP) and supports advanced imaging controls such as ROI, analog/digital gain, sub-sampling, and defective pixel correction. Its C-mount design, low-light performance (F1.4 at 0.1lx), and low 1.8W power consumption make it ideal for OEMs requiring high stability and image fidelity in continuous operation environments.
Features:
- High Speed: Up to 163.4fps (HS models)
- Resolution: 5M (2464 x 2056 pixels)
- Global Shutter: Ensures sharp, distortion-free images
- Compact Design: 29mm cubic size
- Camera Link Interface: Easy system integration
- Fixed and Pulse Width Shutter Modes: Versatile imaging options
- Low Power Consumption: Only 1.8W
Applications:
- Quality Control
- Manufacturing
- Advanced Machine Vision
- Process Monitoring
| Color/Mono | Mono |
| Resolution | 5M |
| fps @ Max Resolution | 35.85fps (3 TAP)、29.09fps (2 TAP)、14.56fps (1 Tap) |
| Output Format | 8bit/10bit/12bit |
| Sensor Model Name | IMX264 (Pregius) |
| Shutter Type | Global Shutter |
| Imager Size | 2/3 CMOS |
| Effective Pixels | 2464 x 2056 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Pixel Clock (MHz) | 74.25 |
| Power Consumption | 1.8W |
| Min Illumination | F1.4 0.1 lx |
| Sensitivity | F8 400 lx |
| Interface | Camera Link |
| Lens Mount | C Mount |
| Weigth (g) | 45g |
| Dimensions (W) x (H) x (D)mm | 29 x 29 x 29 |
