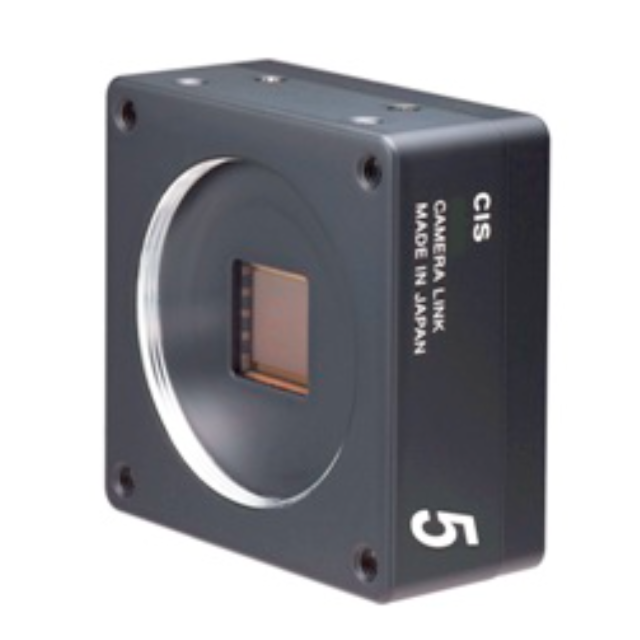

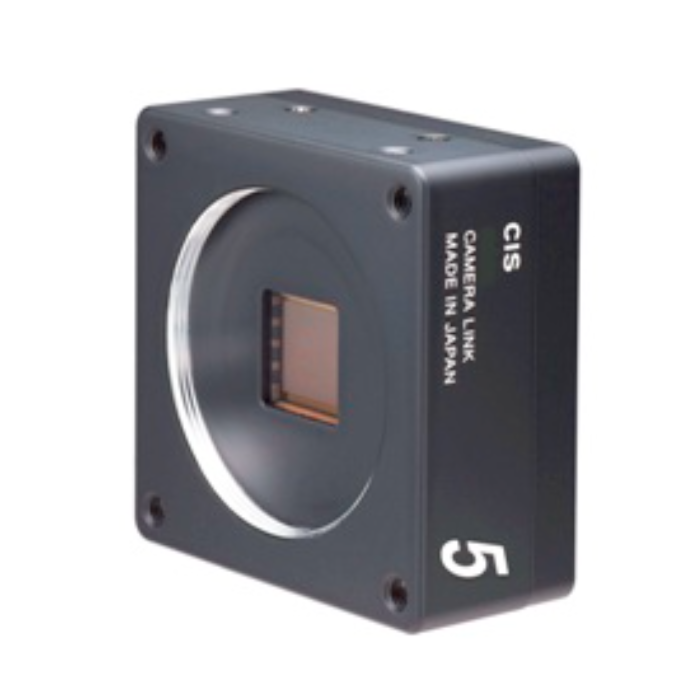

CIS VCC-5CL4RHS 2/3 CMOS Camera Link High Speed Color Camera
SKU
VCC-5CL4RHS
Quick Overview
The CIS VCC-5CL4RHS is a Made in Japan, NDAA compliant 5MP Camera Link camera delivering high-speed 163.4 fps performance with a Sony IMX250 CMOS sensor.
The CIS VCC-5CL4RHS is a 5-megapixel Camera Link industrial camera engineered and manufactured in Japan for precision imaging performance. This NDAA compliant global shutter camera delivers exceptional reliability, low noise, and high frame rate output—ideal for inspection, automation, and high-speed image capture applications.
Utilizing the Sony IMX250 2/3" CMOS sensor, the VCC5CL4RHS achieves 163.4 fps with 10Tap 8-bit output in its high-speed (HS) configuration. Its robust design, compact 55 x 55 x 25 mm housing, and M42 lens mount add flexibility for a range of production and machine vision integrations. Optional M42-to-C and M42-to-F mount conversion rings further expand lens compatibility.
Features:
- Made in Japan for superior quality and precision
- NDAA compliant – fully approved for U.S. government and defense projects
- 5MP, 2/3" global shutter CMOS sensor (IMX250)
- High-speed 163.4 fps (10Tap 8bit) imaging performance
- Fixed trigger and pulse-width shutter modes
- Compact, lightweight 100g design
- Camera Link interface ensures stable, high-bandwidth image transfer
- Low power consumption (3.3W at +12V DC)
- Optional lens adapter rings (M42–C / M42–F)
Applications:
- Machine Vision
- Automation
- Inspection
- Imaging
| Color/Mono | Color |
| Resolution | 5M |
| fps @ Max Resolution | 163.4fps (10Tap 8bit) |
| Output Format | 8bit |
| Sensor Model Name | IMX250 |
| Shutter Type | Global Shutter |
| Imager Size | 2/3 CMOS |
| Effective Pixels | 2448 × 2048 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Pixel Clock (MHz) | 84.86 |
| Power Consumption | 3.3W (DC+12V IN, 10Tap 8bit, Full frame scan) |
| Power Requirement | DC+12V±10% |
| Min Illumination | F1.4, 12.7lx (Shutter speed 1/167s(off), Gain +24dB, 10Tap 8bit) |
| Sensitivity | F5.6, 2000lx (Shutter speed 1/167s(off), Gain 0dB, 10Tap 8bit) |
| Shutter Variable Range | OFF ～ 1/60,000s |
| Interface | Camera Link |
| Lens Mount | M42 Mount |
| Weight (g) | 100g |
| Dimensions (W) x (H) x (D)mm | 55 x 55 x 25 |
