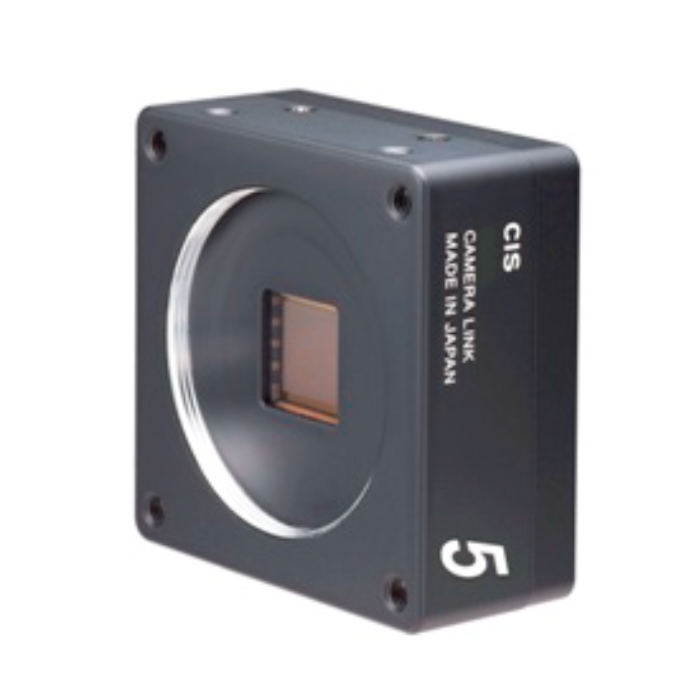

CIS VCC-5CL4MHS 2/3 CMOS Camera Link High Speed Monochrome Camera
The CIS VCC-5CL4MHS from Aegis Electronic Group, Inc. is a high-speed, made-in-Japan, NDAA-compliant Camera Link camera engineered for precise, high-frame-rate industrial imaging. Featuring a 5-megapixel global shutter CMOS sensor (2/3”), this camera achieves 163.4 fps at full resolution, enabling crystal-clear capture of fast-moving objects in demanding machine vision environments.
Designed for performance and reliability, the VCC-5CL4MHS integrates a Camera Link interface for high-speed data transfer and global shutter accuracy to eliminate motion blur. It supports both fixed and pulse width shutter modes for flexible exposure control and features optional M42-to-C and M42-to-F mount conversion rings, maximizing compatibility with diverse optics.
Manufactured in Japan to the highest imaging standards and fully NDAA compliant, the VCC-5CL4MHS is ideal for applications requiring speed, precision, and compliance assurance.
Features:
- High-Speed Performance: 163.4 fps at 5M resolution
- Global Shutter Technology: Minimizes motion blur
- Camera Link Interface: Reliable high-speed data transfer
- Versatile Shutter Modes: Fixed and pulse width
- Optional Lens Mount Conversion Rings: M42 to C, M42 to F
Applications:
- Electronics Manufacturing
- Automotive Inspection
- Pharmaceutical Packaging
- High-Speed Production Lines
| Color/Mono | Mono |
| Resolution | 5M |
| fps @ Max Resolution | 163.4fps (10Tap 8bit) |
| Output Format | 8bit |
| Sensor Model Name | IMX250 |
| Shutter Type | Global Shutter |
| Imager Size | 2/3 CMOS |
| Effective Pixels | 2448 × 2048 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Pixel Clock (MHz) | 84.86 |
| Power Consumption | 3.3W (DC+12V IN, 10Tap 8bit, Full frame scan) |
| Power Requirement | DC+12V±10% |
| Min Illumination | F1.4, 0.42lx (Shutter speed 1/167s (off), Gain+24dB, 10Tap 8bit configuration) |
| Sensitivity | F5.6, 400lx (Shutter speed 1/167s(off), Gain 0dB, 10Tap 8bit configuration) |
| Shutter Variable Range | OFF ～ 1/60,000s |
| Interface | Camera Link |
| Lens Mount | M42 Mount |
| Weigth (g) | 100g |
| Dimensions (W) x (H) x (D)mm | 55 x 55 x 25 |
