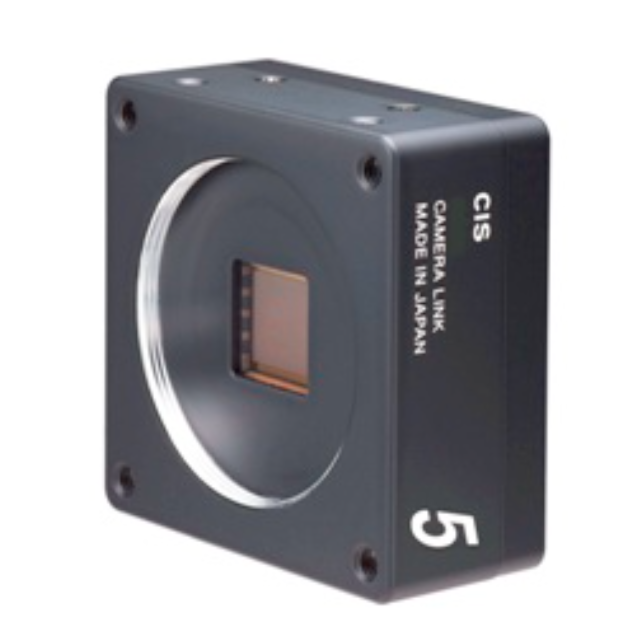

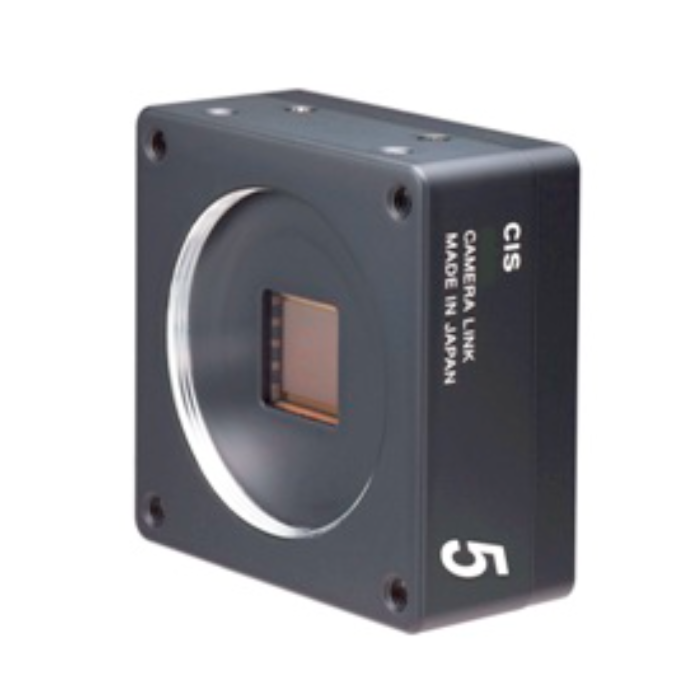

CIS VCC-5CL4M 2/3 CMOS Camera Link High Speed Monochrome Camera
The CIS VCC-5CL4M from Aegis Electronic Group, Inc. is a high-speed, NDAA compliant monochrome Camera Link camera made in Japan, engineered for precision-driven industrial and machine vision imaging. Featuring a 5-megapixel 2/3" Sony IMX250 CMOS global shutter sensor, this compact camera delivers crisp, distortion-free images at up to 163.4 frames per second—perfect for advanced inspection, measurement, and motion tracking applications.
Built to deliver consistent performance in demanding environments, the VCC5CL4M monochrome camera offers seamless Camera Link interface integration for fast, reliable data transfer. Its global shutter ensures accurate capture of fast-moving objects, while fixed trigger and pulse width shutter modes offer flexible control. With a 3.45 µm pixel size, 0.19 lx minimum illumination, and a compact 55 × 55 × 25 mm body, this lightweight unit is ideal for space-limited setups requiring Japanese-built precision and NDAA compliance.
Features:
- High Speed: 163.4 fps with HS models
- Resolution: 5M, 2/3 type global shutter CMOS
- Shutter Modes: Fixed trigger and pulse width shutter
- Output Format: 8bit/10bit
- Interface: Camera Link
- Lens Mount: M42 Mount (conversion rings available)
Applications:
- High-speed production line inspections
- Quality control in manufacturing
- Automated optical inspection (AOI)
- Scientific imaging and research
- Motion analysis and tracking
| Color/Mono | Mono |
| Resolution | 5M |
| fps @ Max Resolution | Full:114fps(8tap),Medium:57fps(4tap),Base: 42fps(3tap)、28fps(2tap) |
| Output Format | 8bit/10bit |
| Sensor Model Name | IMX250 |
| Shutter Type | Global Shutter |
| Imager Size | 2/3 CMOS |
| Effective Pixels | 2448 × 2048 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Pixel Clock (MHz) | 74.25 |
| Power Consumption | 3.1W (DC+12V IN, 8 Tap, 10bit, full frame scan) |
| Power Requirement | DC+12V±10% |
| Min Illumination | F1.4, 0.19lx (shutter speed 1/58(off), gain +36dB, 4Tap 8bit mode) |
| Sensitivity | F4, 400lx (shutter speed 1/58(off), gain 0dB, 4Tap 8bit mode) |
| Shutter Variable Range | OFF ～ 1/55,000s |
| Interface | Camera Link |
| Lens Mount | M42 Mount |
| Weigth (g) | 100g |
| Dimensions (W) x (H) x (D)mm | 55 x 55 x 25 |
