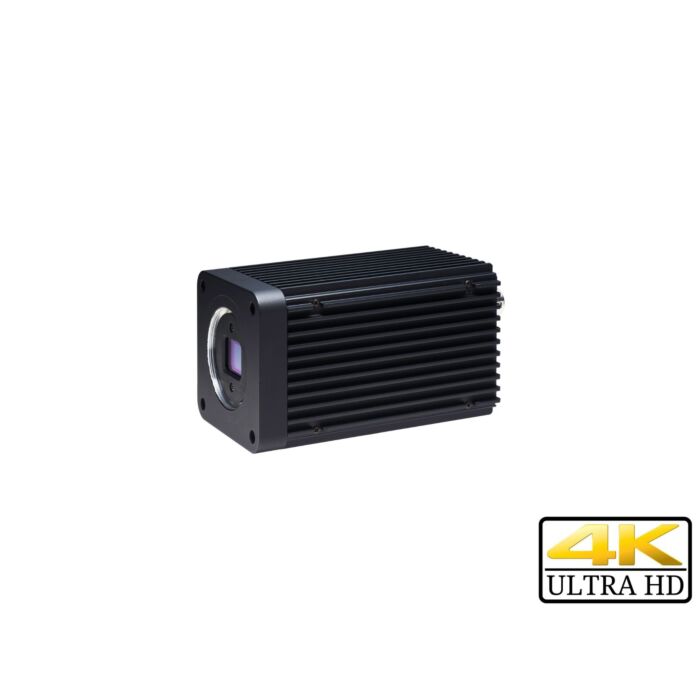

CIS VCC-4K2 1.0 CMOS 4K Compact Color Global Shutter Camera
SKU
VCC-4K2
Quick Overview
Compact 4K color camera with 1-type global shutter CMOS sensor, Quad 3G-SDI output, made in Japan and NDAA compliant.
Compact 4K color camera made in Japan and fully NDAA compliant. Designed for industrial and broadcast imaging, this model features a Quad 3G-SDI interface and CIS’s original Clairvu™ ISP for superb image clarity and color reproduction.
Equipped with a 1-type global shutter CMOS sensor, it delivers 4K UHDTV output at 60p/59.94p/50p (3G-SDI ×4ch) and Full HD 1080 60p/59.94p/50p (3G-SDI ×1ch). Compact at 65mm × 65mm × 110mm, this camera ensures high performance in space-limited environments.
Features:
- Made in Japan and NDAA compliant for government and security applications
- Exceptional imaging with CIS Clairvu™ ISP
- Global shutter CMOS sensor for precise motion capture
- GenLock function (3-value analog or black burst)
- Advanced color correction and gamma control via RS-232C
- NR function and LTC time code support
- Supports BT.2100 gamma curve and BT.2020 color gamut
Applications:
- Machine Vision
- Broadcast
- Defense
- Integrator projects requiring NDAA compliance
| Color/Mono | Color |
| Resolution | 3840 × 2160 |
| Output Format | 2160ｐ/1080ｐ |
| Sensor Model Name | IMX305 |
| Shutter Type | Global Shutter |
| Imager Size | 1.0 CMOS |
| Effective Pixels | 3840×2160 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Power Consumption | 12W |
| Power Requirements | DC+9～+15V |
| Min. Illumination | 3.0 lx (F1.4) |
| Sensitivity | F5.6 (2000 lx) |
| Shutter Variable Range | 1/23.98 ～ 1/13600s |
| Interface | 3G-SDI ×4 - 2SI / Square Division、3G-SDI ×1 |
| Lens Mount | M42 |
| Weight (g) | 420g |
| Dimensions (W) x (H) x (D)mm | 65 x 65 x 110 |
