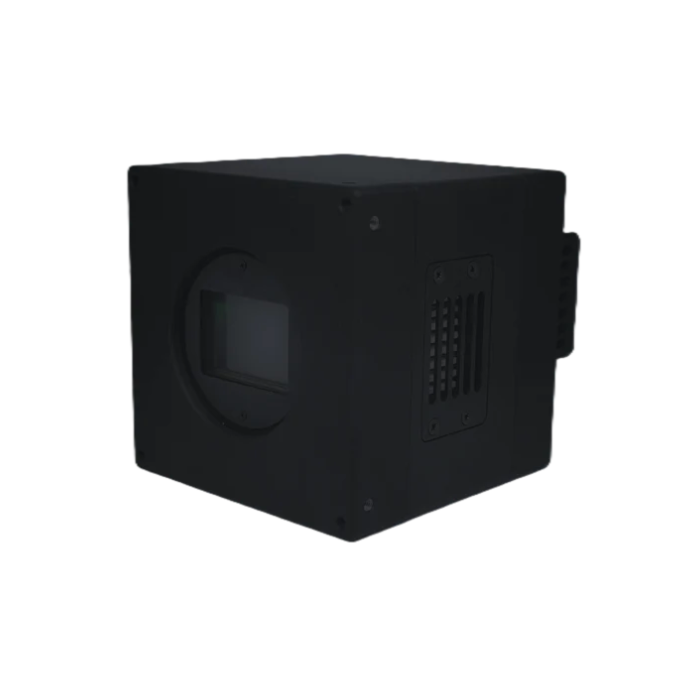

CIS VCC-400CXP1R 400MP CoaXPress Color Camera | 24592 × 16704, CXP-12, M58 Mount
The CIS VCC-400CXP1R is an ultra-high-resolution 400MP color CoaXPress camera designed for advanced industrial imaging applications that require extreme image detail, high-bandwidth output, and accurate color capture. Featuring a full-size 400M CMOS image sensor, 24592 × 16704 effective pixels, 8 fps full-resolution imaging, and a high-speed CXP-12 CoaXPress interface, this camera is built for demanding machine vision, inspection, metrology, scientific imaging, and large-area color imaging systems.
With selectable Bayer 8/10/12/14-bit output, the VCC-400CXP1R gives engineers flexibility to balance image quality, data size, and system performance. Its PoCXP support helps simplify installation by allowing power and data transmission through the CoaXPress connection, while the M58 lens mount supports large-format optical configurations required for 400MP-class imaging.
For precision inspection and repeatable imaging performance, the VCC-400CXP1R includes advanced correction and image optimization functions such as FPN correction, PRNU correction via FFC, automatic coefficient calculation, 6-side shading correction, defective pixel correction, gamma correction, white balance, ROI control, and 2×2 binning. Long exposure support up to 15 seconds makes it suitable for applications requiring controlled lighting, high-detail capture, or extended exposure imaging.
The CIS VCC-400CXP1R is ideal for OEMs, machine vision integrators, automation engineers, and research teams building ultra-high-resolution color imaging systems for semiconductor inspection, PCB inspection, flat panel inspection, digital archiving, aerial imaging, robotics, AI inspection, and high-precision quality control.
Key Features:
- 400MP ultra-high-resolution color camera
- 24592 × 16704 effective pixels
- 8 fps at maximum resolution
- Full-size 400M CMOS image sensor
- CoaXPress CXP-12 interface
- PoCXP support
- Selectable Bayer 8 / 10 / 12 / 14-bit output
- LI8030SAM CMOS sensor
- Rolling shutter
- 2×2 binning function
- ROI setting with 24 vertical steps
- Long exposure support up to 15 seconds
- FPN and PRNU correction via FFC
- Automatic correction coefficient calculation
- 6-side shading correction switching
- Gamma correction
- White balance
- Defective pixel correction
- Fixed trigger mode
- M58 lens mount
- 100 × 100 × 100 mm body size
Applications:
- Semiconductor inspection
- Flat panel display inspection
- PCB and electronics inspection
- Color machine vision inspection
- Precision metrology
- Scientific imaging
- Digital archiving and document capture
- Museum and artwork digitization
- Aerial imaging and mapping
- Robotics vision systems
- AI-based defect detection
- Industrial automation
- Medical and laboratory imaging
- Print inspection
- Surface inspection
- Large-area quality control
- High-resolution color analysis
| Manufacturer | CIS |
| Model | VCC-400CXP1R |
| Camera Type | Ultra-High-Resolution CoaXPress Industrial Camera |
| Color / Mono | Color |
| Resolution | 410M / 400MP Class |
| Effective Pixels | 24592 × 16704 |
| Frame Rate at Max Resolution | 8 fps |
| Output Format | Bayer 8 / 10 / 12 / 14 |
| Sensor Model | LI8030SAM |
| Shutter Type | Rolling Shutter |
| Imager Size | TBD |
| Pixel Size | 1.5 × 1.5 µm |
| Interface | CoaXPress CXP-12 |
| Power Requirement | +24V ±10% / PoCXP |
| Power Consumption | 30W or less, TBD |
| Lens Mount | M58 Mount |
| Binning | 2×2 Pixel Addition |
| ROI | 24 Vertical Steps |
| Long Exposure | Up to 15 Seconds |
| Image Correction | FPN Correction, PRNU Correction via FFC, Shading Correction, Defective Pixel Correction |
| Image Processing | Gamma Correction, White Balance, Defective Pixel Correction |
| Trigger Mode | Fixed Trigger Mode |
| Dimensions | 100 × 100 × 100 mm |
