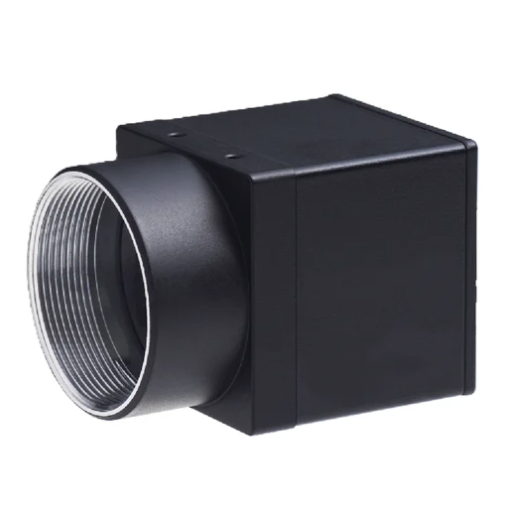

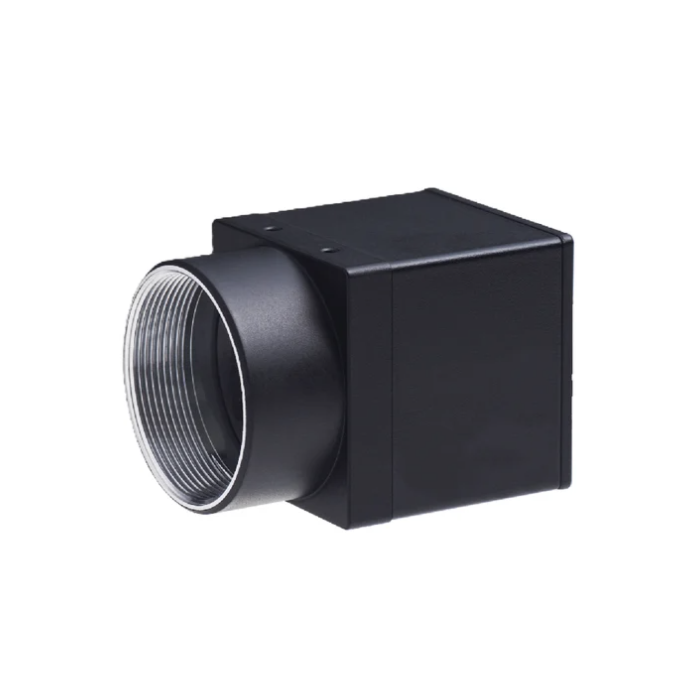

CIS VCC-3U051M Global Shutter IMX900 1/3.1 CMOS USB3.2 Monochrome C Mount Camera
The CIS VCC-3U051M is a Made in Japan, NDAA compliant 3.1MP industrial camera engineered for high-precision machine vision, factory automation, and high-speed inspection. Built for performance and reliability, the CIS VCC-3U051M features a 1/3.1" Sony IMX900 global shutter CMOS sensor, delivering outstanding image clarity with minimal distortion at 125 fps. Its compact 29 × 29 × 29 mm form factor allows seamless integration into tight industrial or robotic environments where space is at a premium.
Engineered with a USB 3.2 Gen 1x1 interface and full USB3 Vision compliance, the CIS VCC3U051M ensures rapid data transfer and stable operation. A single USB cable provides power, control, and image transmission, simplifying setup and reducing costs. Flexible imaging options—such as ROI (region of interest), binning, and external trigger mode—enable precise synchronization for demanding applications. The C-mount design offers universal compatibility with industrial lenses and optics.
Features:
- Compact 29 mm cubic in size
- Global shutter CMOS sensor
- USB3 Vision, USB 3.2 Gen 1x1
- Single USB cable for image transmission, camera control, and power supply
- ROI and binning functionality
- External trigger mode support
- C-mount
Applications:
- Factory Automation (FA)
- Machine Vision
- Quality Control
- Robotics
- Visual Inspection Systems
- Process Monitoring
- Automation Testing
- Industrial Imaging Systems
- Object Detection
- Precision Measurement
| VCC-3U051M | |
| Color/Mono | Mono |
| Resolution | 3.1M |
| fps @ Max Resolution | 125fps |
| Sensor Model | IMX900 |
| Shutter Type | Global Shutter |
| Imager Size | 1/3.1 CMOS |
| Effective Pixels | 2048(H) × 1536(V) |
| Pixel Size (μm) | 2.25 × 2.25 |
| Power Requirement | USB |
| Interface | USB3 Vision、USB 3.2 |
| Lens Mount | C Mount |
| Weight (g) | TBD |
| Dimensions (W × H × D) mm | 29 x 29 x 29 |
