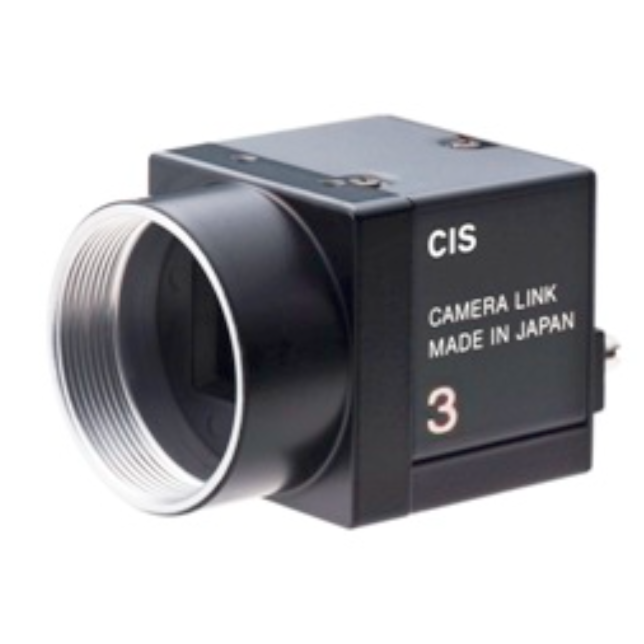

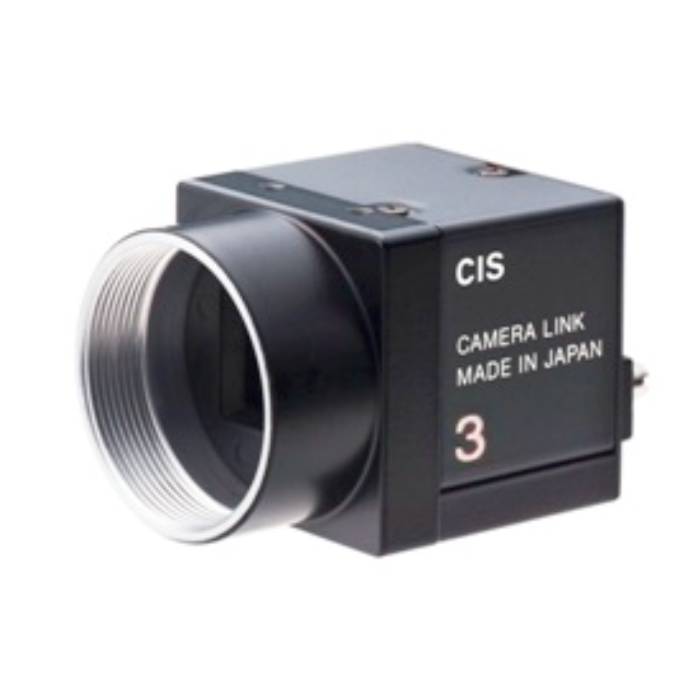

CIS VCC-3CL5M Camera Link 3MP Monochrome Camera with 1/1.8" CMOS Sensor, Selectable 1/2/3 Tap Output, 29mm Cube, 55fps
SKU
VCC-3CL5M
Quick Overview
Made in Japan CIS VCC-3CL5M 3MP NDAA compliant industrial camera with Camera Link output and 55 fps performance.
Experience precision-engineered performance with the CIS VCC-3CL5M industrial camera — Made in Japan and fully NDAA Compliant for secure, high-reliability imaging environments. This compact 29mm cube machine vision camera features a 1/1.8-inch high-sensitivity CMOS sensor delivering crisp 3.2MP resolution at up to 55 fps via flexible Camera Link connectivity.
Manufactured in Japan for exceptional quality control, the VCC3CL5M provides reliable operation, long product life, and consistent performance for critical industrial and government applications requiring NDAA-compliant machine vision cameras.
Features:
- Serial command camera settings
- Global trigger shutter
- Selectable output: 1, 2, or 3 tap
- ROI (Region of Interest) function
- Sub-sampling for flexible resolution
- HV cross line signal generation
- Compact 29mm cubic housing
Applications:
- Factory Automation
- Surface Inspection
- Robotics Vision
- Biomedical Imaging
- PCB Inspection
| Color/Mono | Mono |
| Resolution | 3M |
| fps @ Max Resolution | Full Frame 55.69fps (3Tap)、45.48fps (2Tap)、22.78fps (1Tap) |
| Sensor Model Name | Pregius IMX265 |
| Shutter Type | Global Shutter |
| Imager Size | 1/1.8 CMOS |
| Effective Pixels | 2064 x 1544 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Power Consumption | 1.9W |
| Min Illumination | F1.4 0.2 lx |
| Sensitivity | F5.6 400 lx |
| Interface | Camera Link |
| Lens Mount | C Mount |
| Weigth (g) | 45g |
| Dimensions (W) x (H) x (D)mm | 29 x 29 x 29 |
